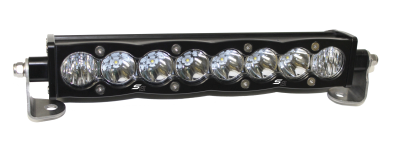

Baja Designs S8 - 10" Driving/Combo LED Light Bar

S8 Series

Baja Design’s latest product is similar to the Stealth Light Bar, but with a few additional perks! Enjoy the clean aluminum frame with 4,000 lumens of pure power, low amp draw of 3.33 amps, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

Baja Designs Features

• Satisfactions Guarantee – 30 Day Money Back
  Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

• Lumens: 4,000 Utilizing 8 Cree XP-G2 LEDs
• Wattage/Amps:  40W / 3.33A
• Dimensions: 10” x 3” x 1.6”
• Weight: 1.7 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens:  Hard Coated Polycarbonate
• Housing:  Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes

• S8 10” LED Light Bar
• Mounting Brackets

Part Numbers

• 70-1003 | Driving/Combo Beam Pattern
• 70-1001 | High Speed Spot Beam Pattern
• 70-1004 | Wide Driving Beam Pattern
• 70-1006 | Flood/Work Beam Pattern
• 70-1013 | Driving/Combo Amber Beam Pattern
• 70-1014 | Wide Driving Amber Beam Pattern

Patterns

Driving/Combo:
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving and spot optics to provide you with a smooth blend of light for both near field applications and distance.

Wide Driving:
BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a flattened horizontal beam for the ultimate in comfort lighting. (Also available in amber)

Spot:
Our High Speed Spot™ optic is a longer and narrower beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

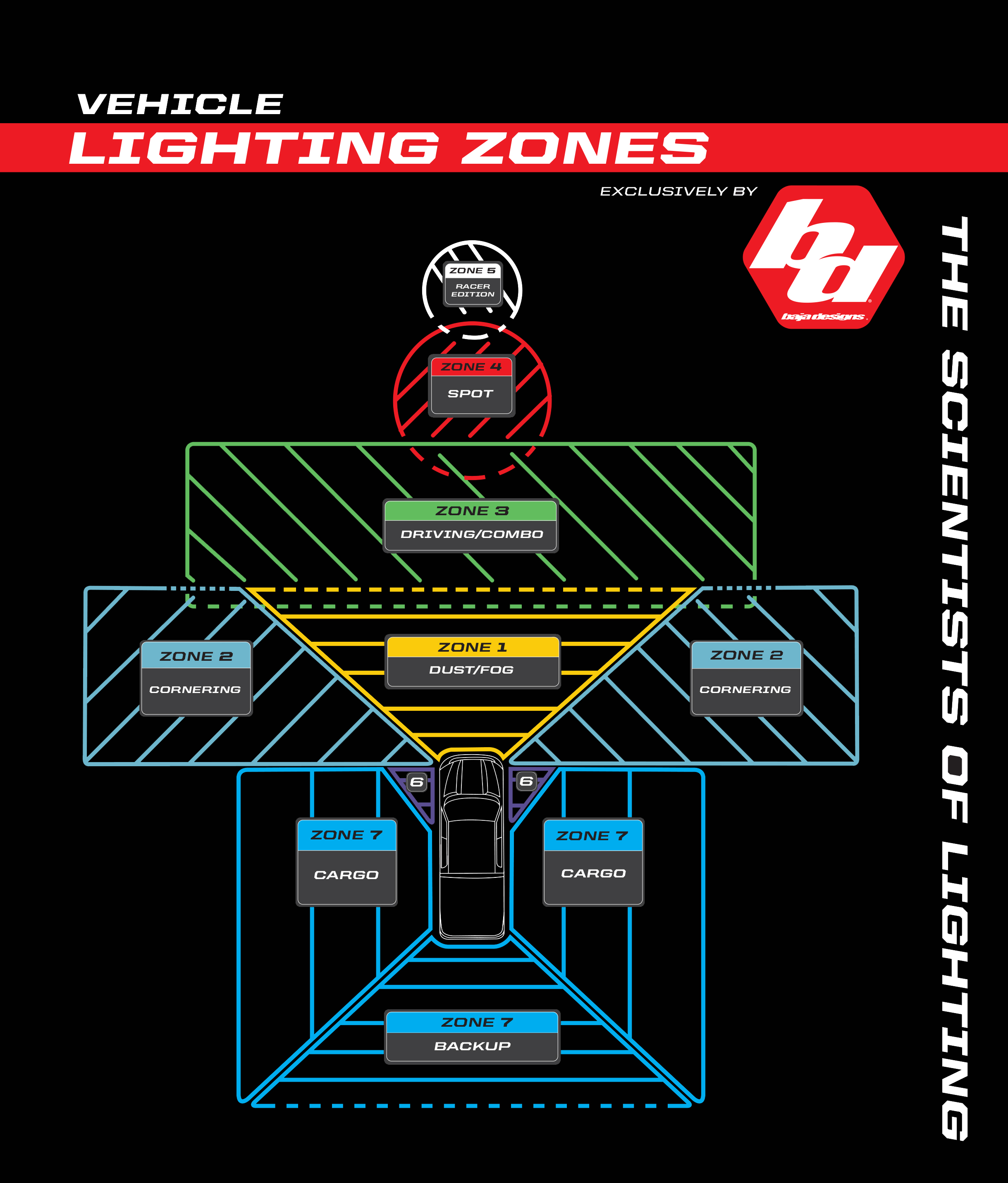

These zones have been designed by Baja Designs: The Scientists of Lighting.

Zone 1 - Dust/Fog: This zone illuminates the area directly in front of the vehicle.  Mounting these lights low on the bumper eliminates glare from dust and fog.

Zone 2 - Cornering: This zone provides cornering light which is necessary to drive comfortably at speed.  By toeing these lights out 10°-15°a smooth field of light is achieved, eliminating the feeling of tunnel vision.

Zone 3 - Driving Combo: This zone is your primary driving light.  These lights are mounted in the middle of the front bumper to avoid glare off of the hood or from dust and fog in front of the vehicle.

Zone 4 - Spot: This zone is your first level of long distance lighting. Lights intended for this zone will give you the distance needed to travel at speed.  Combined with zone two lighting, a smooth transition is achieved creating less stress on your eyes.

Zone 5 - Racer Edition Spot: This zone is necessary for triple digit speeds or wanting to see miles down the road. This is the only forward projection pattern we recommend mounting along your roofline.

Zone 6 - Dome Lighting: This zone is used for wheel well lighting.  This light is perfect for truck, jeep, buggy and UTV applications.

Zone 7 - Flood: Excellent work light or “scene light” with an extremely smooth 60° pattern.  This pattern is not suitable for forward projection applications.

Zone 8 - Backup Lighting: This zone illuminates the area directly behind the rear of the vehicle.  It is recommended that these lights be mounted on your rear bumper or cargo rack.
