Carli 2017+ Ford Long Travel Air Bags
Ford 2017+ Superduty Long Travel Air Bags
Increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort. Our airbags work with up to 12″ of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated up to 4,000lbs of capacity at 100 psi (rated to 2,000lbs each) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

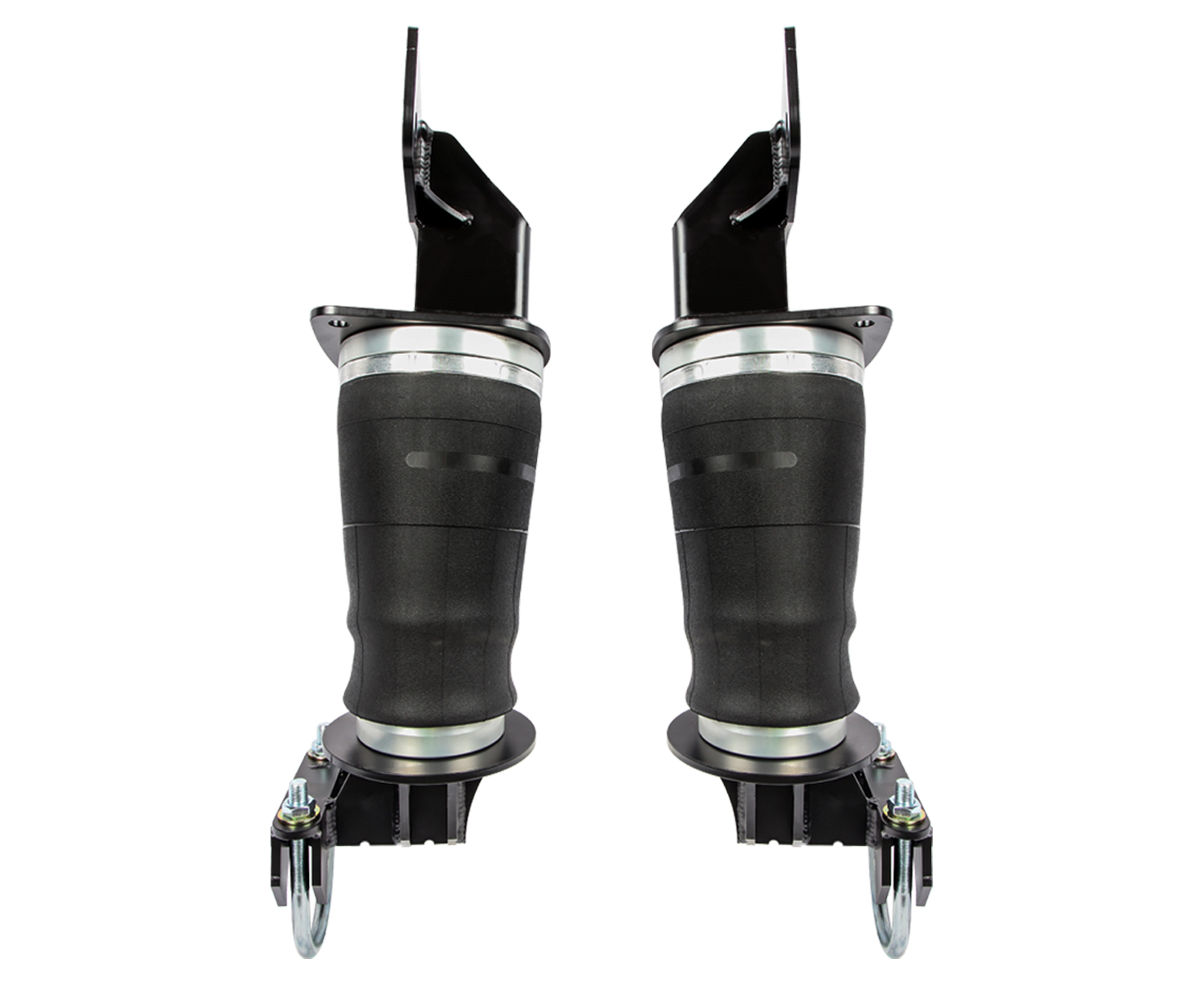

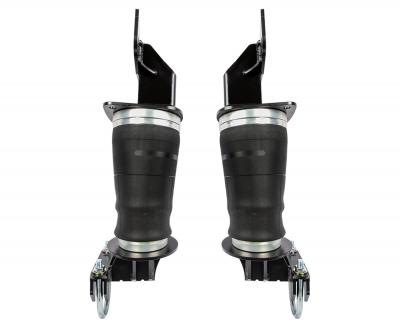

Double Bellow Airbags are restrictive to ride quality and travel of the rear suspension; Enter Carli Long Travel Airbags. We combine tapered billet pistons and rolling sleeve design to maximize the travel and ride quality by minimizing the exponential spring rate increase associated with aftermarket airbags. The airbags are rated to 2,000lbs. each at 100psi with a normal operating range of 5-75psi while supporting up to 12 inches of suspension travel.

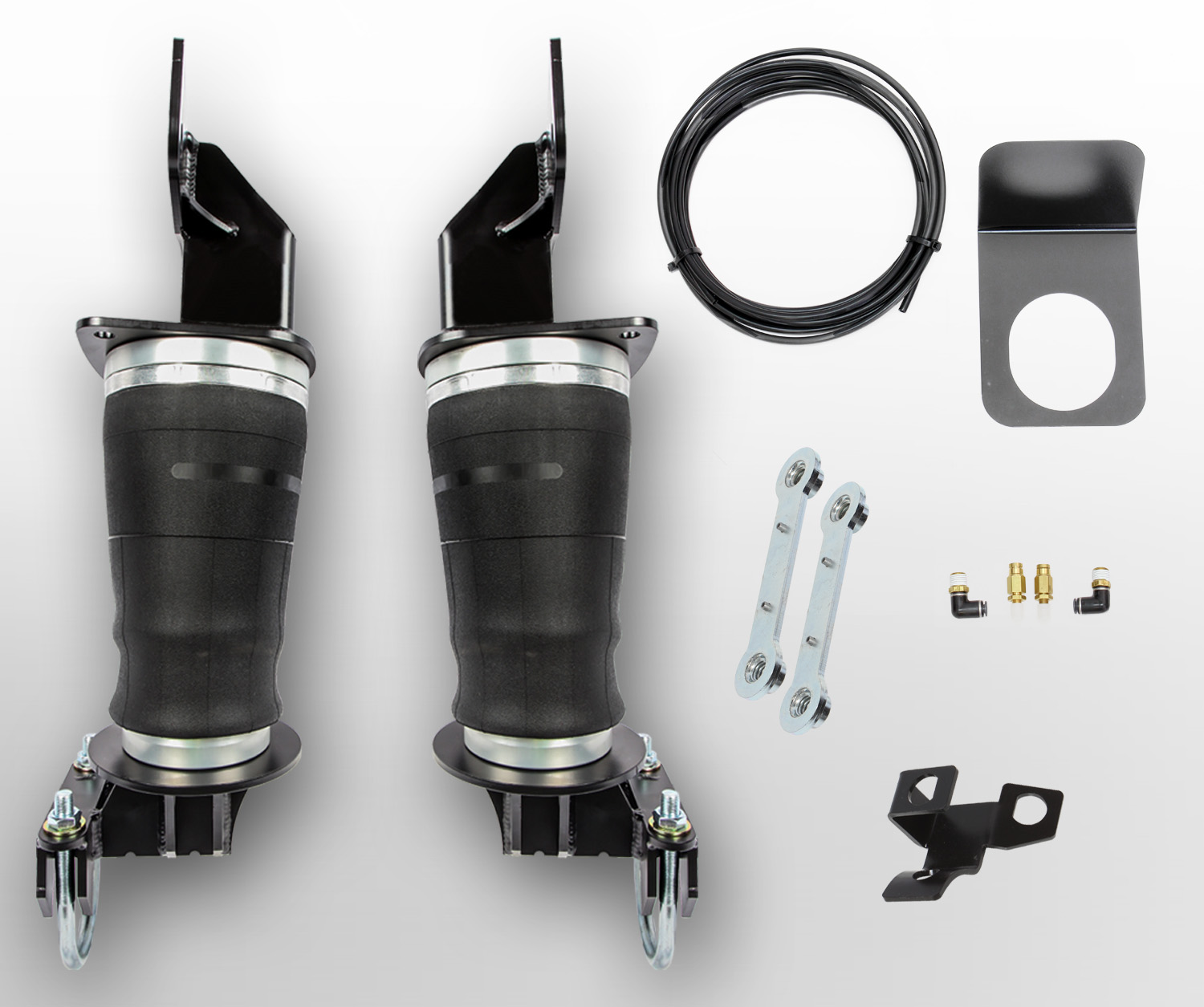

The extended and collapsed dimension combined with ride height piston-depth makes these airbags compatible ONLY with our 4.5″ Lifts, unfortunately. Everything is included to set these up for manual fill but we provide industry standard 1/4″ airline to plumb these into your existing air system if desired. As can be seen above, we offer these for all three axle diameters on the 2017+ Super Duty Platform.
NOTE: Ford Long travel airbags will ONLY work with rear lifts that level to a 4.5″ Front lift. We recommend 2″ of lift in the rear over trucks with 3″ factory blocks.
Ford Super Duty Fitment Guide:
- 17 - 19 F250 / F350 4x4
- Only for trucks with 4-5" lift kits
Specifications:
- .250 Plate Construction
- Laser Cut and Powder Coated Brackets
- Supports up to 12 inches of travel
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4" airline compatible)
Exhaust Notes:
These kits were designed to fit trucks with stock exhaust systems. Most aftermarket exhausts will also work but depending on brand, size, and fitment some modifications to the exhaust tubing and/or routing may be needed.
Part Numbers
- CS-FLTB-17-3.5 | 17 - 19 FORD F250 / F350 4x4 with 3.5" axle tube
- CS-FLTB-17-4.0 | 17 - 19 FORD F250 / F350 4x4 with 4.0" axle tube
- CS-FLTB-17-4.5 | 17 - 19 FORD F250 / F350 4x4 with 4.5" axle tube
