Warn Buying Guide


Choosing the Right Winch

So you're looking to buy a WARN winch. How do you know which one to get? Well there is a formula for making sure you get enough winch for your truck, ATV, or side x side.

Warn Industries Buying Guide at 8LUG Truck Gear

Gross vehicle weight rating X 1.5 = Minimum Winch Capacity

For trucks, it's simple. Take the gross vehicle weight rating (GVWR) and multiply it by 1.5. For example, say you've got a Jeep Wrangler Rubicon (JK) two door. A visit to Jeep's website shows the vehicle's GVWR is 5,000 lbs. (2,268 kg). Multiply this by 1.5 and you'll get your minimum capacity. In this case, it's 7,500 lbs. (3,402 kg). An 8,000 lb. capacity winch, such as the ZEON 8/ZEON -S, M8000/M8000-S, or VR8000/VR8000-S is a good place to start, but for some extra grunt, you can move up to a 9,0000 or 9,500 lb. winch. (FYI, we offer truck winch capacities ranging from 8,000 lbs. up to 16,500 lbs.)

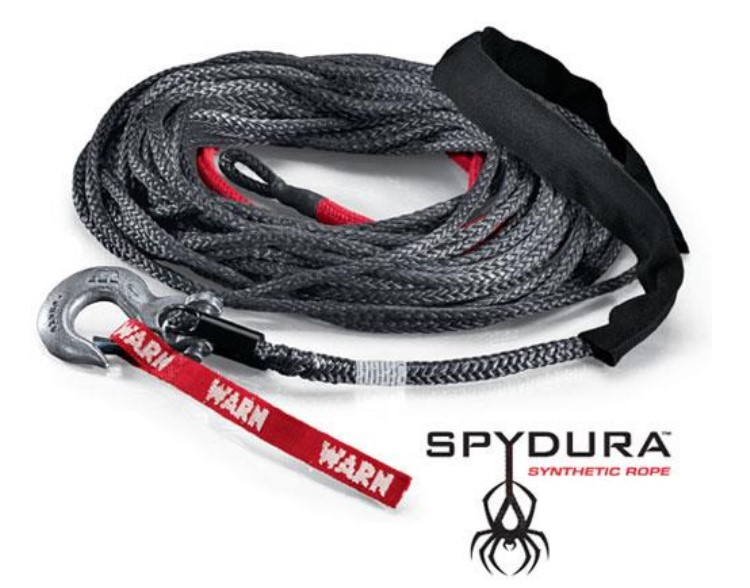

Most WARN truck and powersports winches are available with either synthetic rope or wire rope (our winches with synthetic are identified by the “-s” in the name), but how do you decide which rope is for you? Evaluate how you’re using your winch to make that decision, keeping in mind that synthetic is lightweight and easy to handle, and wire rope is extremely abrasive resistant and sturdy.

9,500 LBS. (4310 KG)

10,000 LBS. (4536 KG)

12,000 LBS. (5440 KG)

15,000 LBS. (6804 KG)

16,500 LBS. (7484 KG)
