Carli Spec 2014+ Dodge 2500 3.25" Backcountry System
Customized for our customer's who are on the road, highway and towing or exploring BLM trails, this system delivers impeccable ride quality while still allowing moderate speeds offroad. Keeping the factory geometry in check is a host of upgraded components that have been scrutinized for strength, function, and longevity. No other system on the market is this comprehensive and addresses all the suspension vitals.
Utilizing Carli SPEC 2.0″ Diameter, Remote Reservoir shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.
The Backcountry 2.0 system is designed for people seeking the best ride on and off-road on a budget; perfect for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. Utilizing our inhouse Carli Spec 2.0” Remote Reservoir Shocks, we’ve developed a shock tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use.
Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 1”-1.5” via Carli’s progressive coil springs.
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel.
Everything is included to support flawless operation of all components. We include bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs.

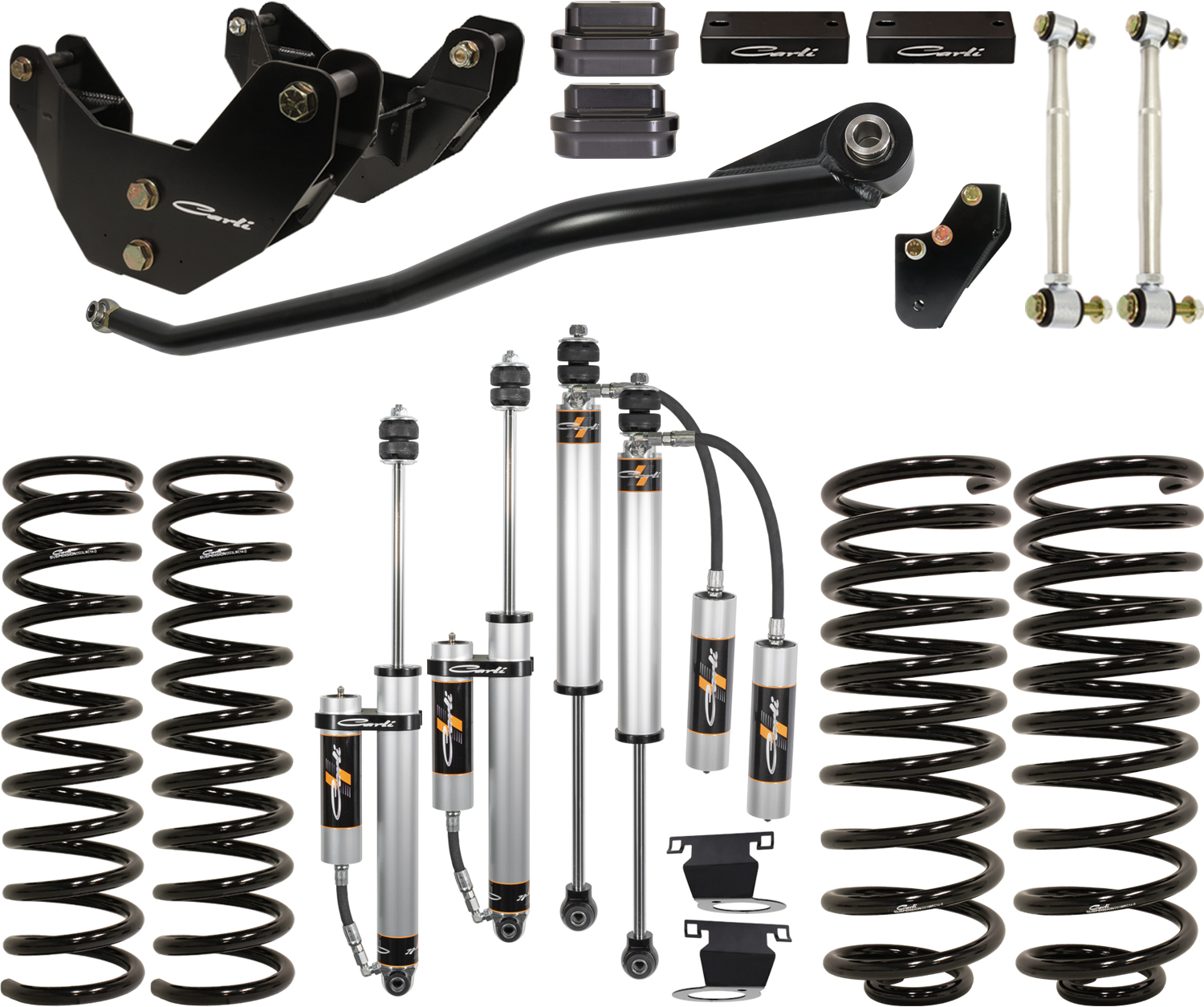

FEATURES:

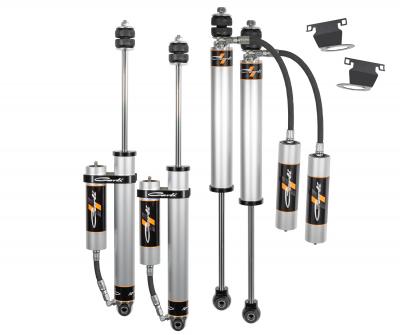

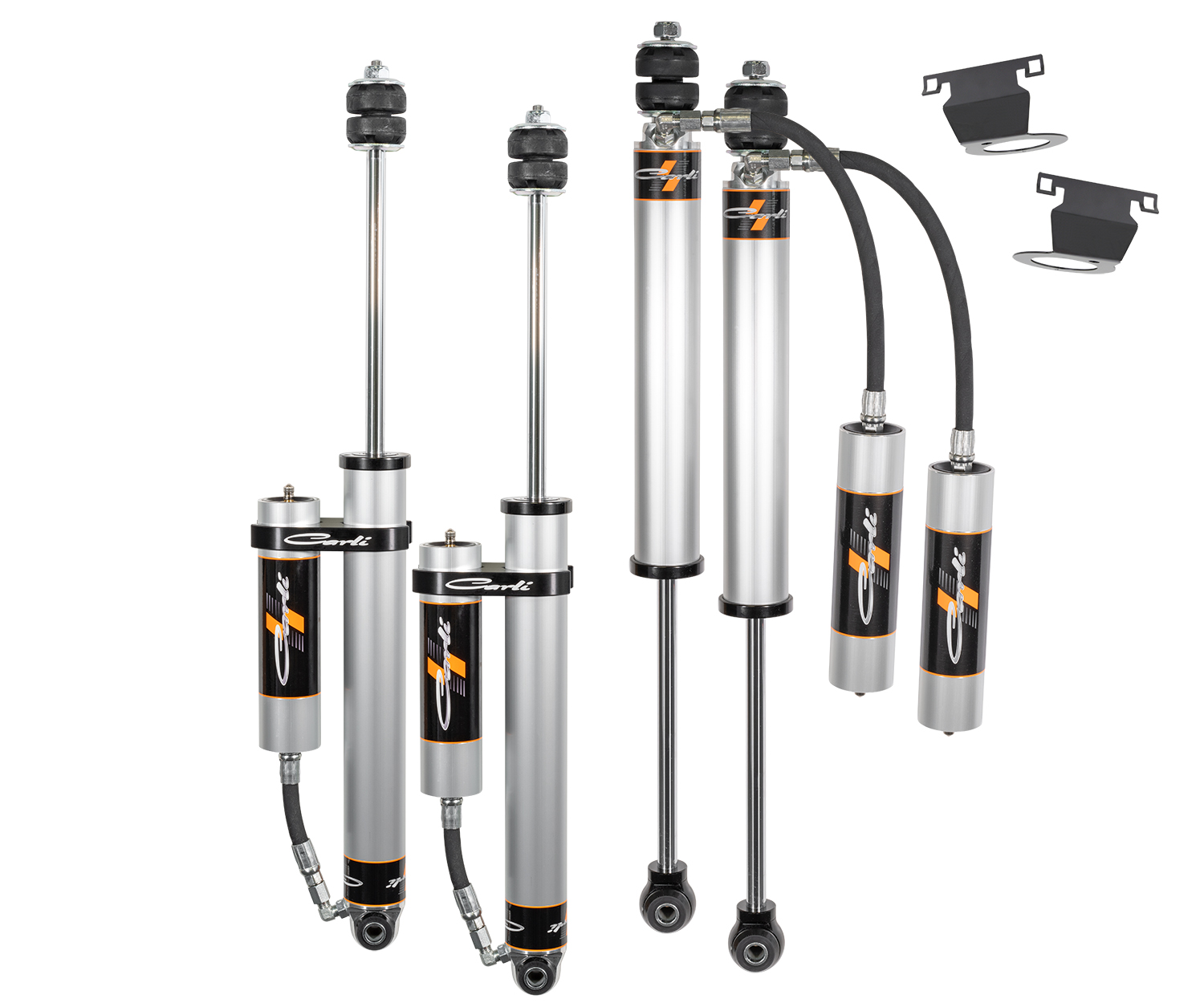

- (2) Carli Spec 2.0 Remote Reservoir Backcountry Shocks (Carli Tuned)
- (2) Carli Spec 2.0 Remote Reservoir Backcountry Shocks (Carli Tuned)
- (2) Front Reservoir Mounts
- (2) Rear Reservoir Clamps

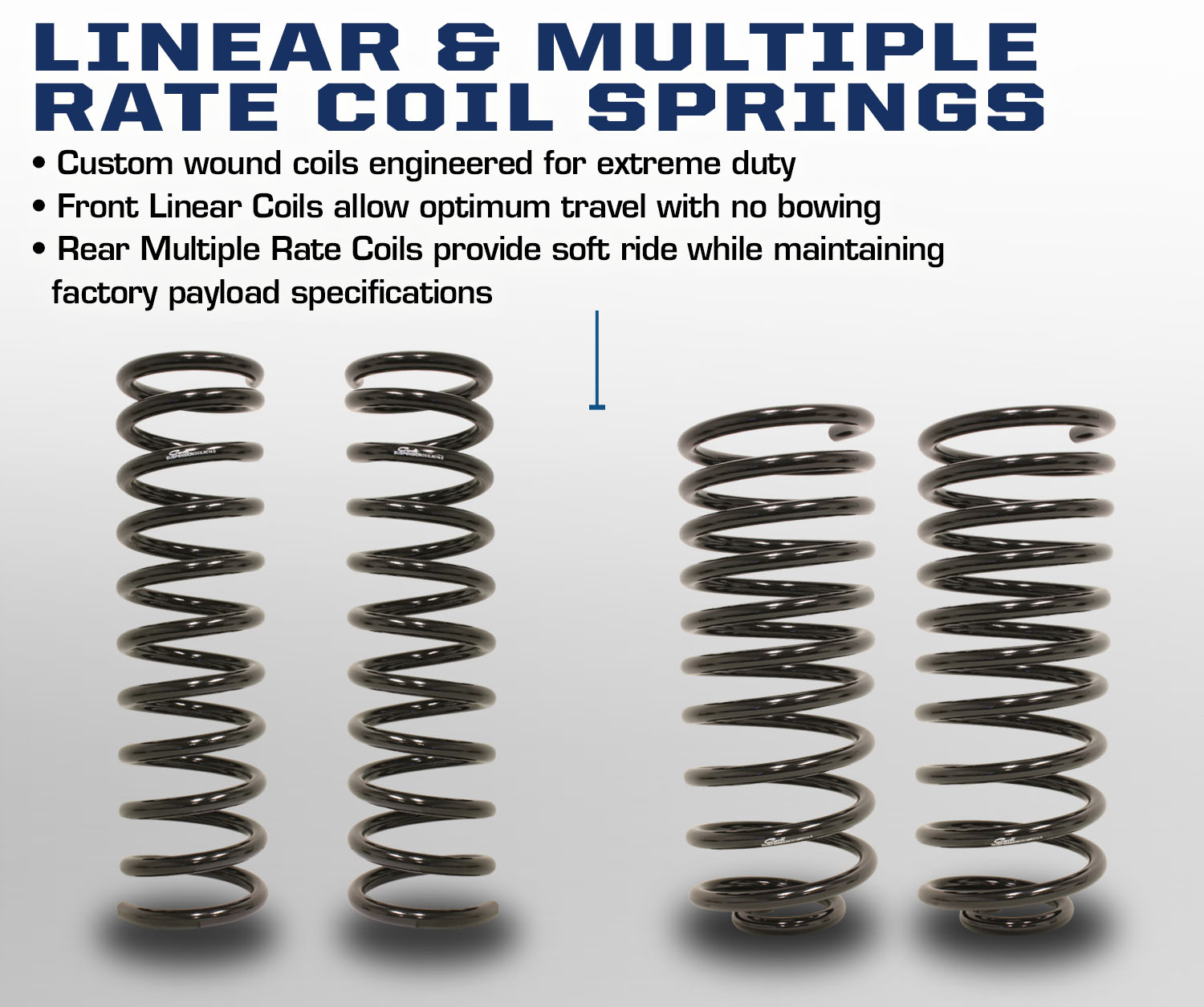

- (2) 3.25" Front Linear Rate Coils

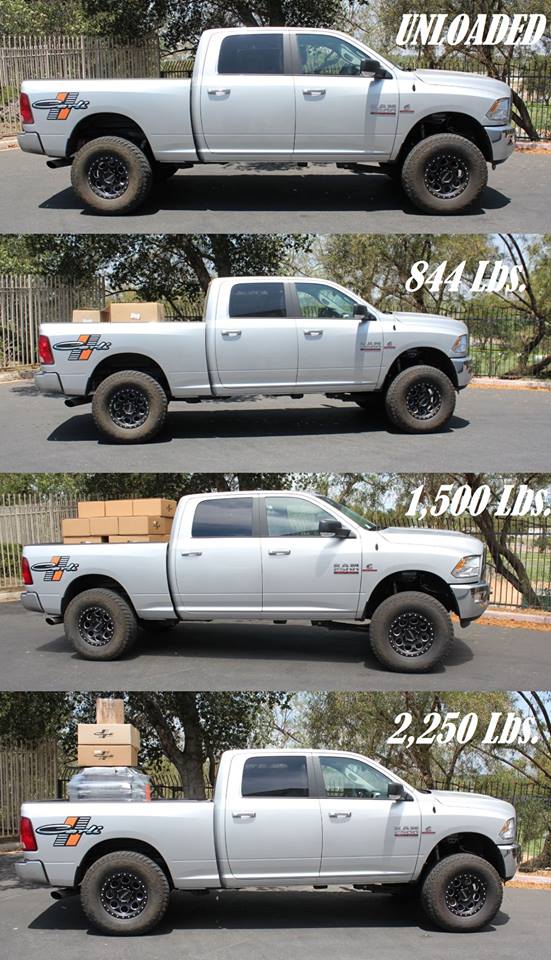

- (2) 1" Rear Multi Rate Coils or optional R2 2" lift coils (factory load capacity)

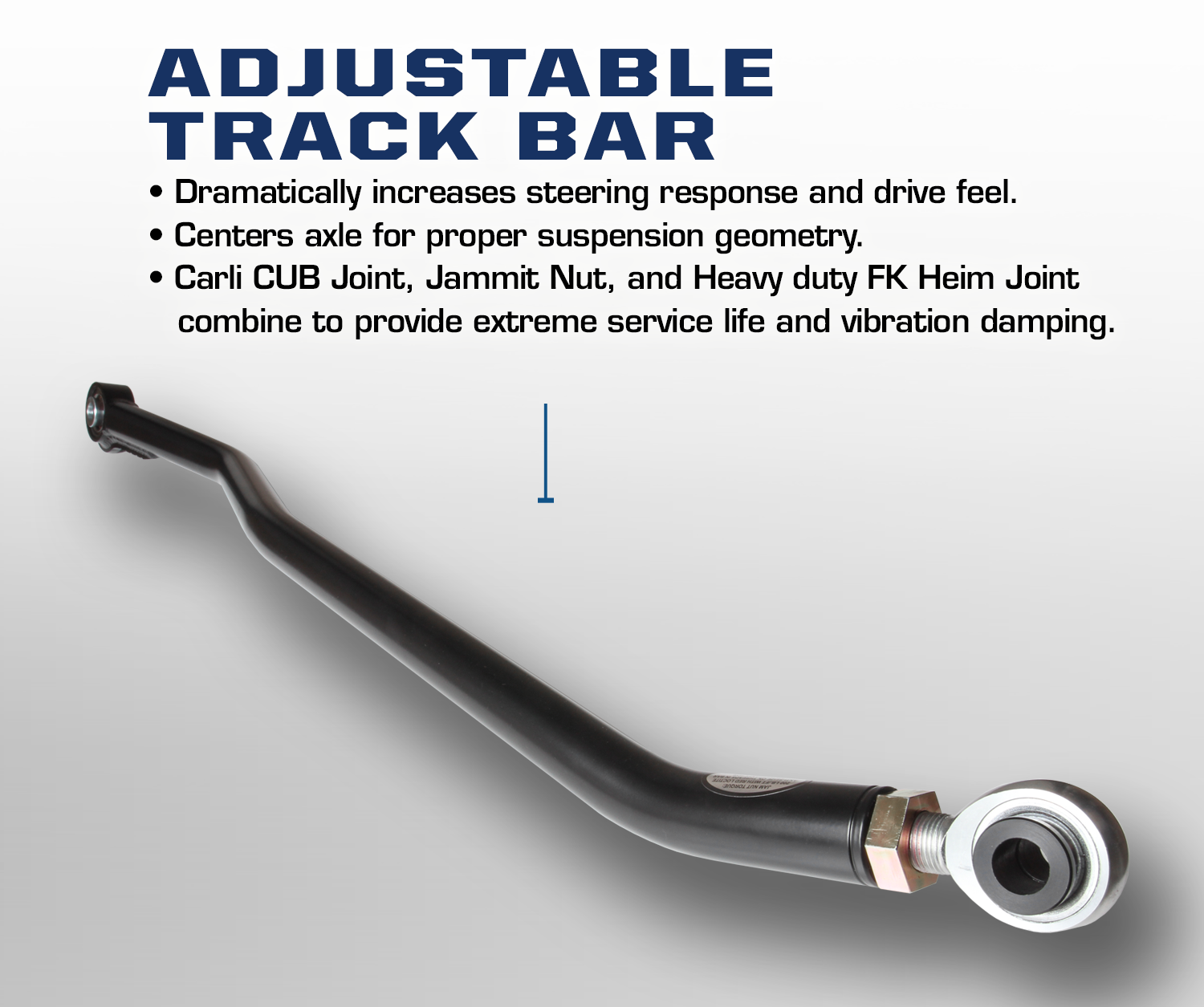

- (1) Front Adjustable Chromoly Track Bar

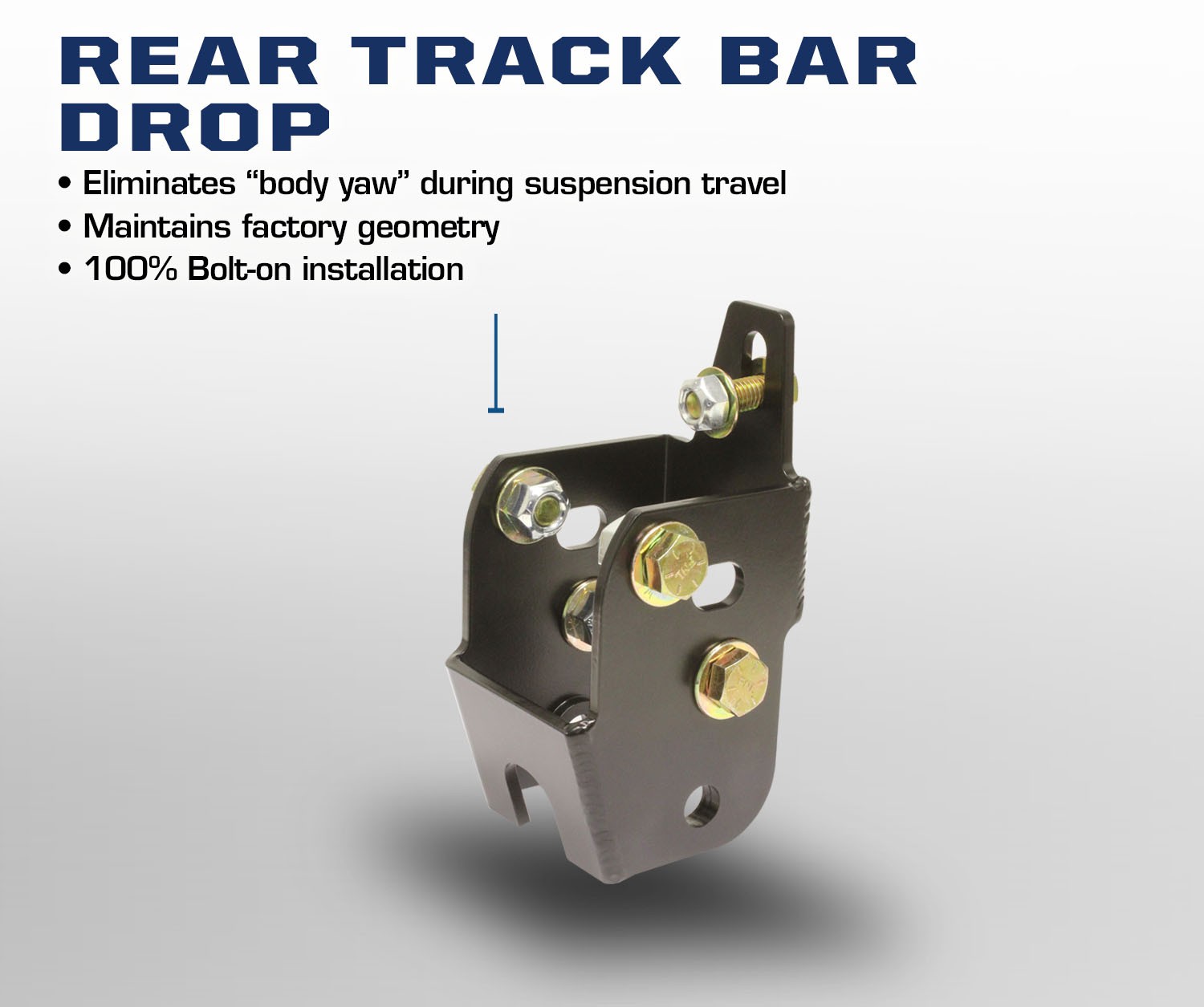

- (1) Rear Track Bar Drop Bracket

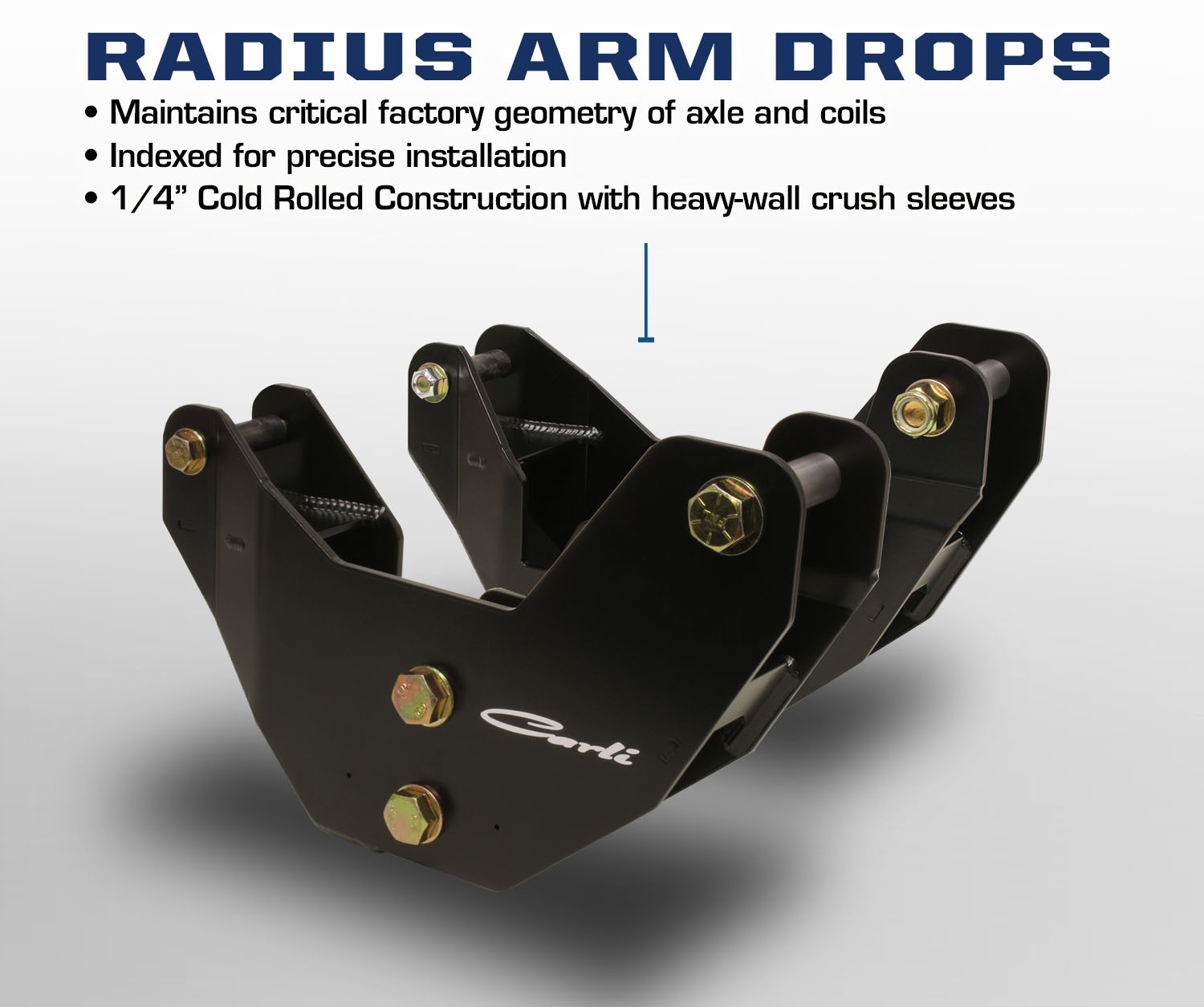

- (2) Radius Arm Drop Brackets

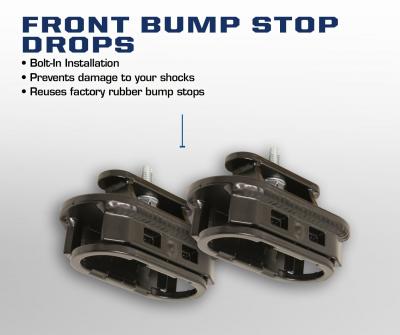

- (2) Front Bump Stop Extensions

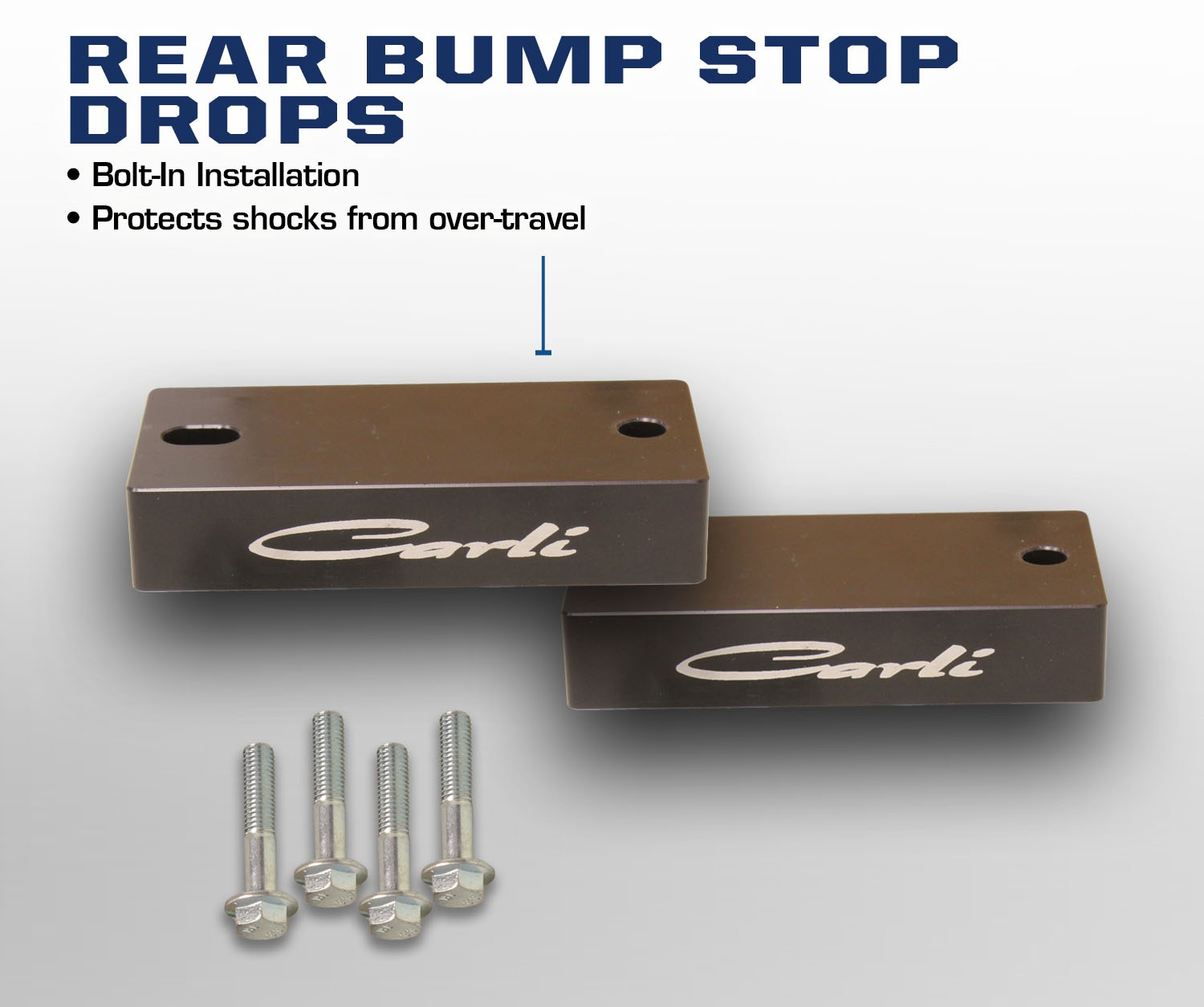

- (2) Rear Bump Stop Extensions

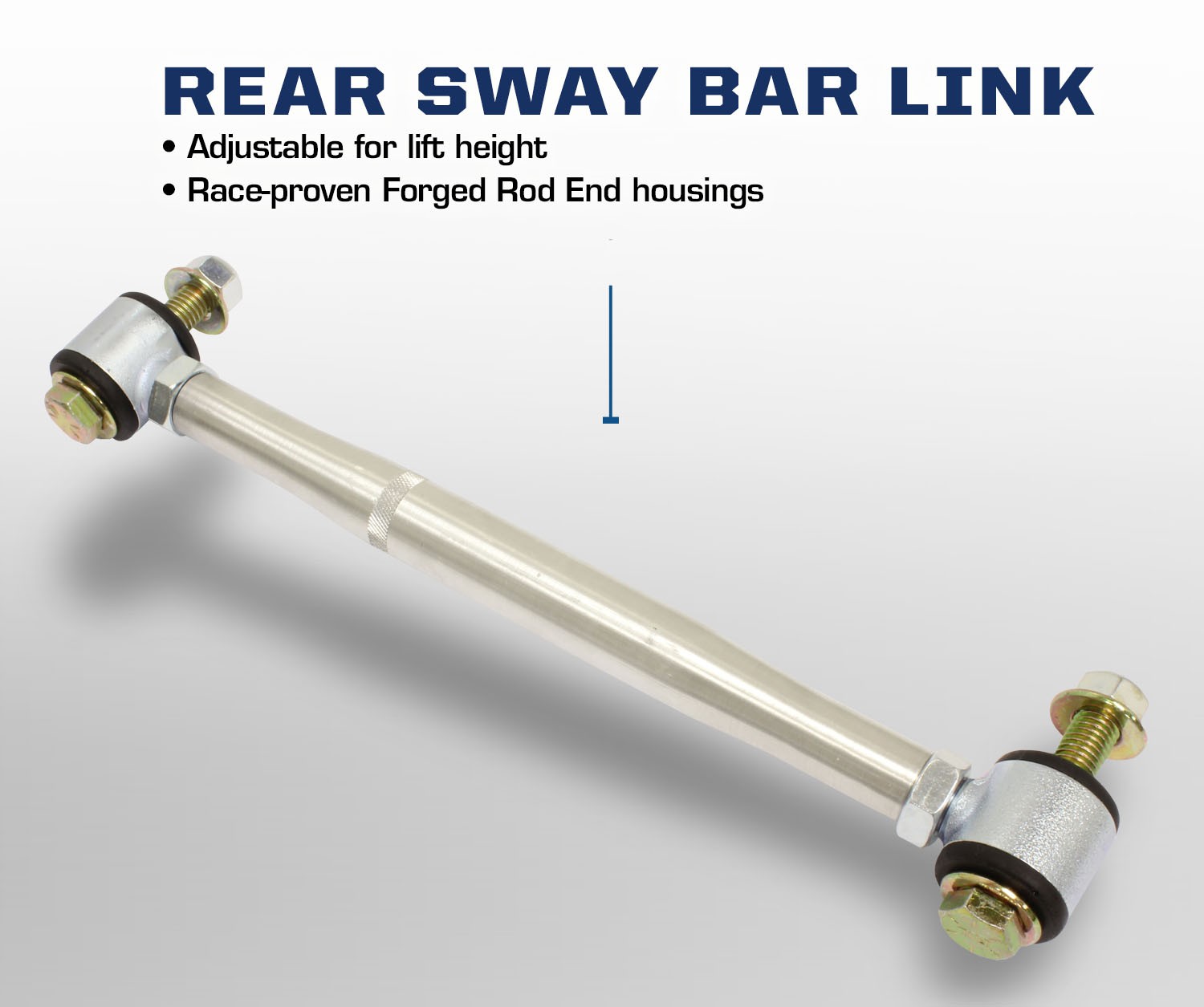

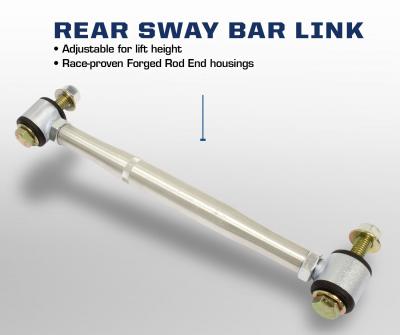

- (2) Rear Sway Bar End Links
DODGE RAM FITMENT GUIDE:
- 2014+ Ram 2500 4wd Trucks (will not fit the 3500's)
- This kit will not fit trucks with the rear air ride option
Altered Vehicle Characteristics:
- 3-3.25" of front lift (varies slightly with different cab configurations)
- 1"of rear lift (varies slightly with different cab configurations and the amount of stock spacers installed)
- Level Ride
Part Number
- CS-DBC20-1419-D | Diesel
- CS-DBC20-1419-H | Hemi
System Notes:
- Wheels - Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5.75" of Backspacing on Leveling Systems
- Tires - 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R
- Recommended Configuration - Carli Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
- Endlinks - Factory front endlinks are retained where as the rear endlinks are provided with the kit for cleaner travel.
- Optional Torsion Sway Bar - Selection of the Torsion Sway Bar Replacement will not require use of the front sway bar drops.
- Fitting 37" Tires - 37" Tires will fit with the above wheel specifications.
Sway Bar Options
- CS-DSBD-14 - Front Sway Bar Drop Brackets
- Machined from solid billet Aluminum and Mil-spec Hard Anodized
- Relocates and drops the front sway bar for fit and correct geometry
- Eliminates End Link bind which could lead to premature failure
- OR
- CS-DTSB3-14 - 3" Torsion Sway Bar
- Easily the Best "Bang for the Buck" Upgrade for ride quality
- Allows front suspension to move freely without giving up Control
- Heavy duty chromoly arms and end links with 5/8 race series heim joints
Radius Arms
- CS-DFRA-14 - Fabricated Radius Arms
- 1/4" Cold Rolled Steel
- Internal X-Bracing
- Serviceable Spherical Joints
- Improved ride quality and control
- Quad Wrap Limit Straps & Hardware
