Carli Dodge Fabricated Shock Towers

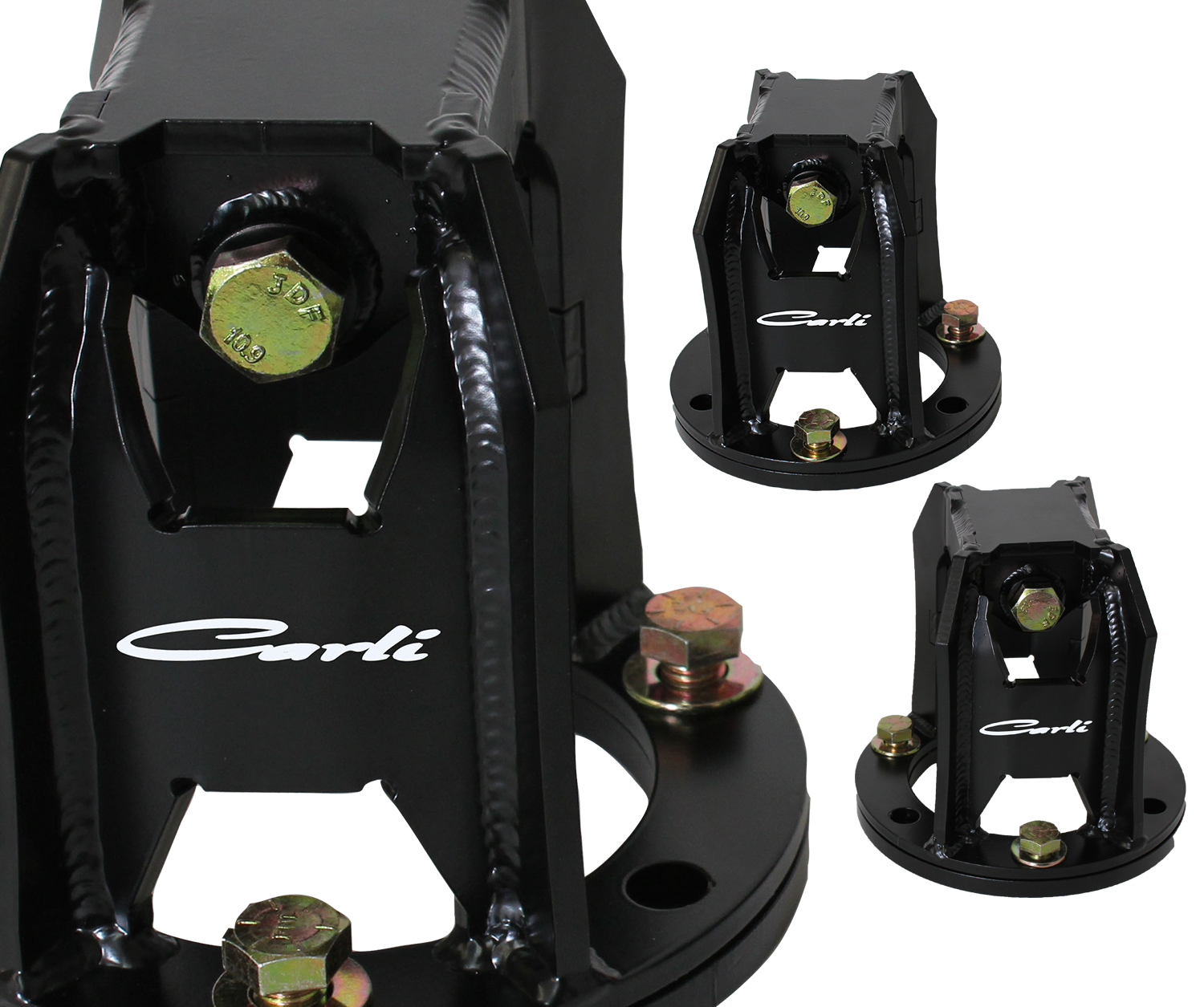

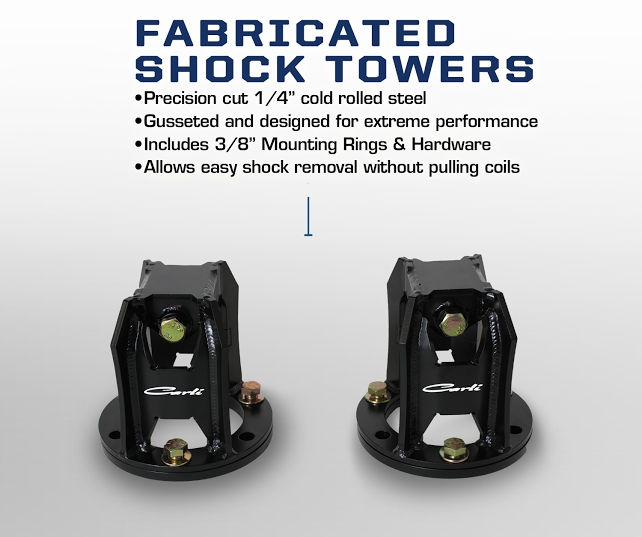

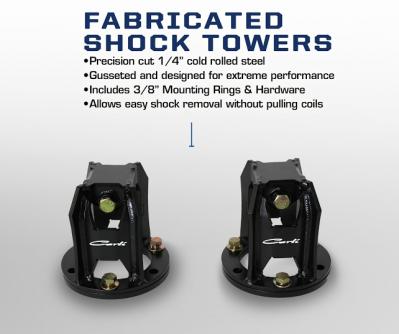

Dodge Ram Fabricated Steel Shock Towers
Supplied with each tower is a 3/8 cold rolled machine stud ring, the largest in the industry, complimented by a 1/2" zinc plated grade 8 hardware- which are recessed into the ring so the OEM spring isolator does not rub... another industry first design. This is finished off with a black powder coating to ensure protection from the elements.
With customers in mind, these towers were designed so that the same part number fits Dodge model years 94 through 2010. This allows the system to be transferred in the event a newer model truck is purchased. These towers work with each system offered by Carli from the Performance 2.5 shocks and up, so upgrading to the next level only means changing shocks and adding more components.
Dodge Ram Fitment Guide:
- 1994 - 2012 2500 / 3500 4x4
- 2006 - 2009 1500 Megacab 4x4
- 2005 - 2012 Power Wagon
Specifications:
- Fabricated and Mig/Tig welded using 1/4" cold rolled steel
- 3/8" Cold Rolled Machined Stud Ring
- 1/2" Grade 8 stud ring bolts
- 14mm Grade 10.9 cross bolt for shock attachment
- Fits Model Years 1994-2012
Standard - Fabricated Tower
Works with all non-specialty eyelette shock packages. Does NOT work with 3.5" King Shocks
1994-12 DODGE RAM 2500/3500 4x4 | CS-DFST475
Taller - Fabricated Tower
ONLY Works King 3.5" - 6" lift height shock package with radius arms.
2003-12 DODGE RAM 2500/3500 4x4 | CS-DFST525
Offset & Taller - Fabricated Tower
ONLY Works with King 3.5" - 3" lift height shock package with extended short arms.
2003-12 DODGE RAM 2500/3500 4x4 | CS-DFST525-OFFSET

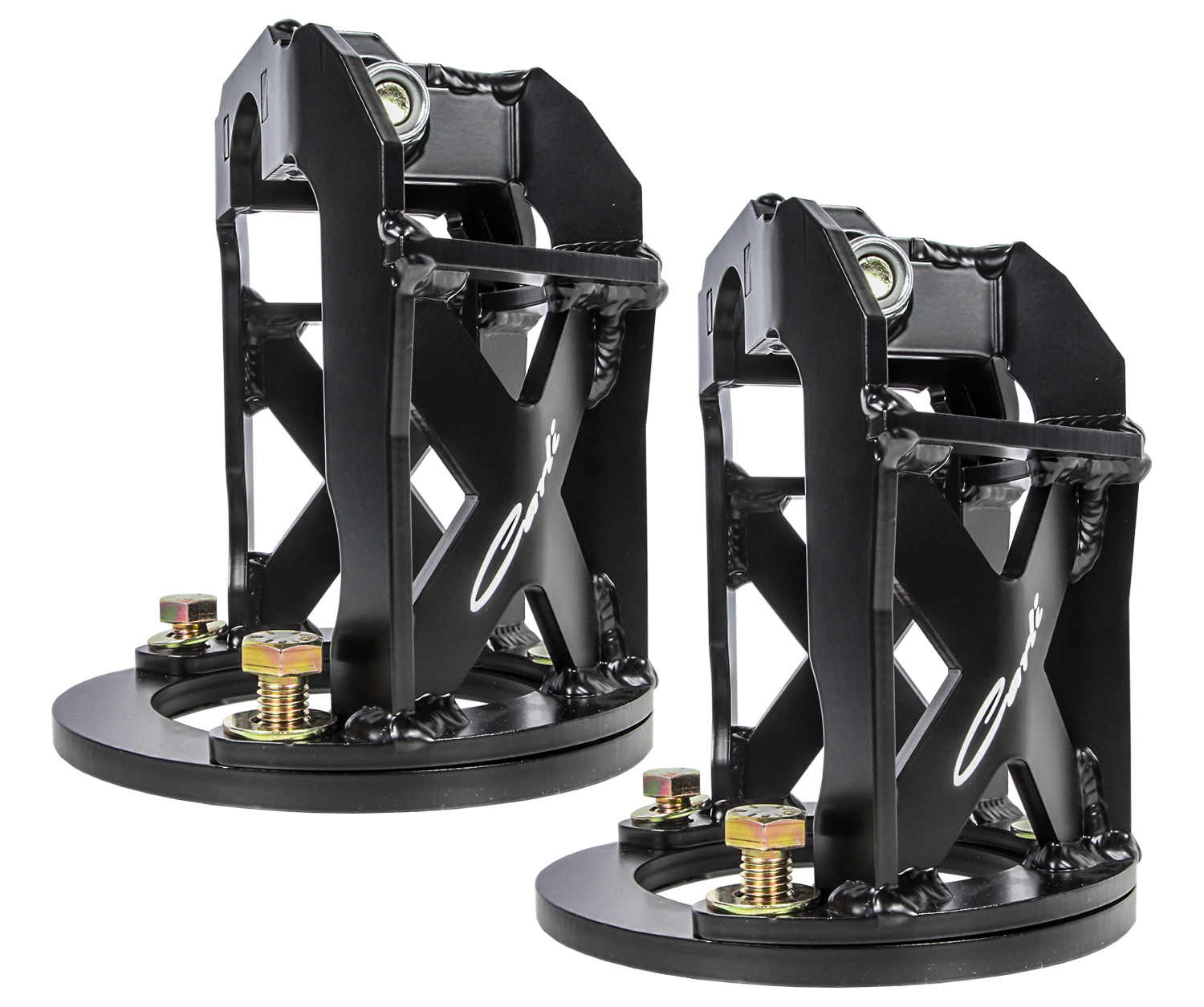

Long Arm Fabricated Tower
ONLY Works with King 3.5" and Performance 2.5"- 3" lift height shock package with the long arm system.
2003-12 DODGE RAM 2500/3500 4x4 | CS-DFST625
