Carli Suspension Ford Decimator 4.5 System

This System boasts, 2.5"x10" Custom King Coilvover, 3.0"x10" Custom 3-Tube Front & 3.0x13" 4-Tube Rear Bypasses.

Stainless Shock Shafts Are Now Standard!

This suspension system will be the last system you will buy for your Ford truck. This is not a "lift kit"`. It is a true suspension system. Our Ford Suspension system brings dramatic improvements to the every day street ride, and plenty of dampening for the off road enthusiast. At the heart of our Super Duty Decimator Suspension System lies a KING shock package which delivers impeccable performance and reliability. This system gives 4.5" of lift with 10 inches of wheel travel in the front and 12 inches of wheel travel in the rear. As with all of our systems, we came up with a vehicle specific valving profile for this suspension system to ensure superior ride quality, handling, and performance. The Progressive Full Springs custom built by Deaver will ensure ride quality, travel, and performance are unmatched. The bypass mount is already built into the coil over mount, making your custom King Bypass Shocks an easy bolt-on affair.

Contact us about custom options like front and/or rear bypass options as well as custom shock finishes.

Accept Nothing Less...

This system utilizes King Off Road Racing Shocks and their premier coil-over race technology. You'll find these same shocks (in longer travel specs) on race vehicles from Barstow to Cabo. We chose to implement a single rate linear spring that allows 0-2 inches of ride height adjustment.

Features:

• Superior Ride Quality
• Very Controlled Off Road
• Increased Cornering Capability
• Reducing and/or Eliminating Body Roll
• Tighter street feel Driving Characteristics, Increased Suspension Response
• Steering geometry is all within OEM specs, no additional components are necessary
• Reduces F-250 payload by 15%. Long Travel Airbags can be added to 4.5" lift springs to achieve F350 SRW capacity.

Fitment Guide:

• 11-15 F250 / F350 4x4
• 08-10 F250 / F350 4x4
• 05-07 F250 / F350 4x4

Components:

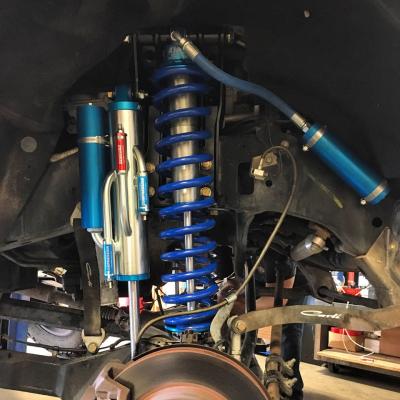

• KING 2.5"x10" Custom Front Coil Over Shocks
• KING 3.0"x10" Custom Bypass Front Shocks
• KING 3.0"x13" Custom Bypass Rear Shocks
• 17-4 Stainless Steel Shock Shafts
• Coil Over Mounting Kit

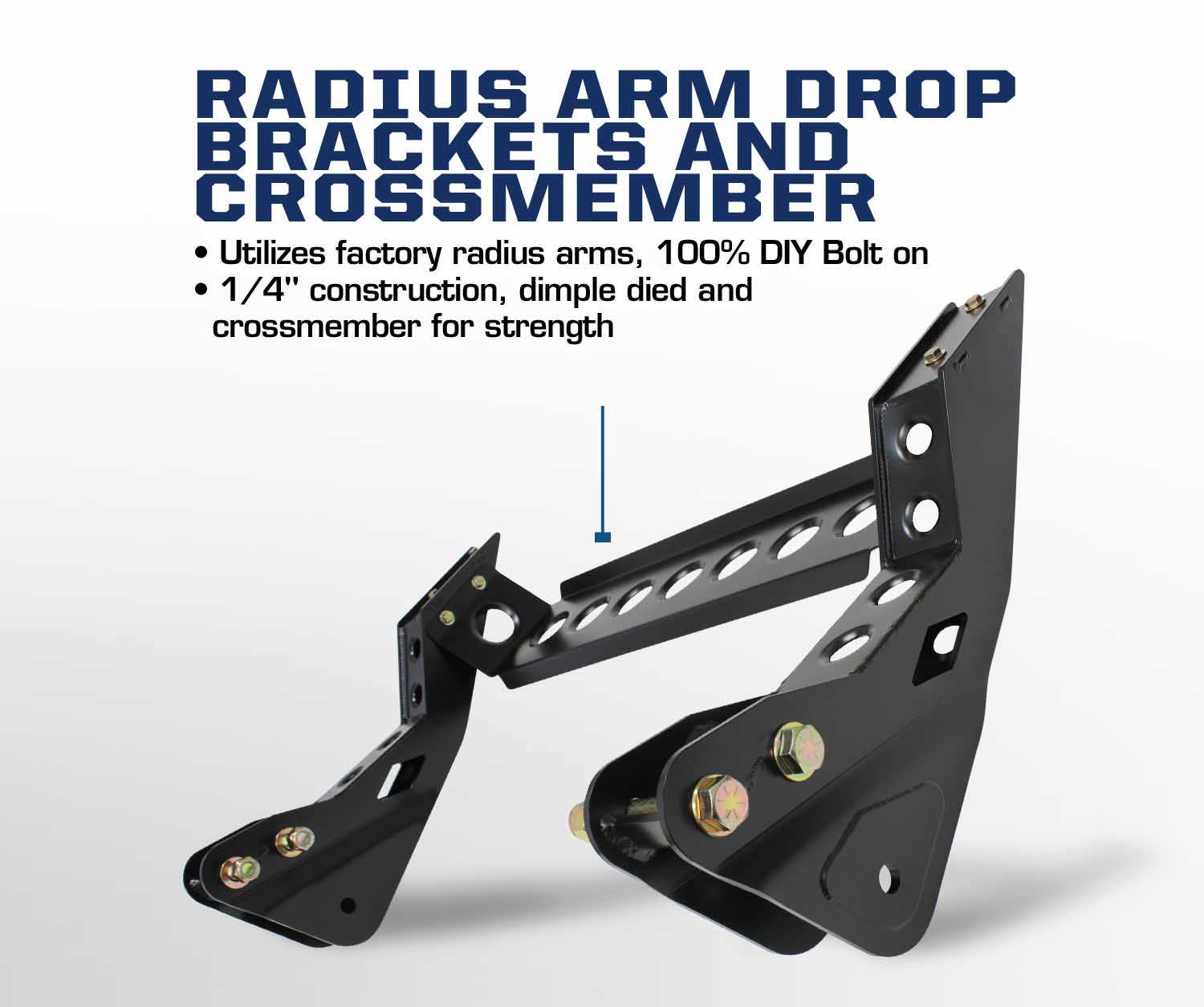

• Radius Arm Drop Bracket Kit with Dimple Die Cross Member
• Sway Bar Endlinks (2011+ kit uses sway bar drop brackets instead)

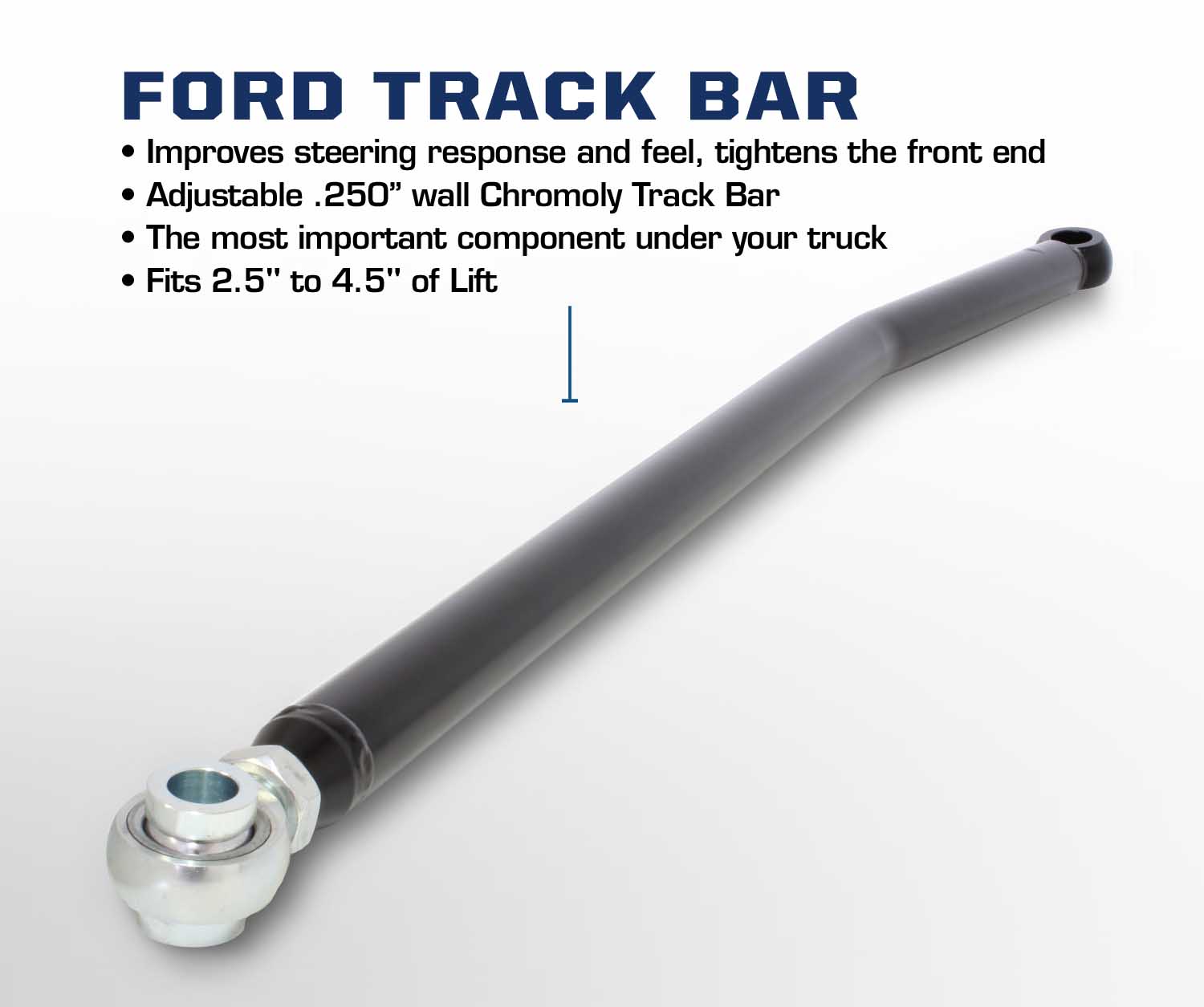

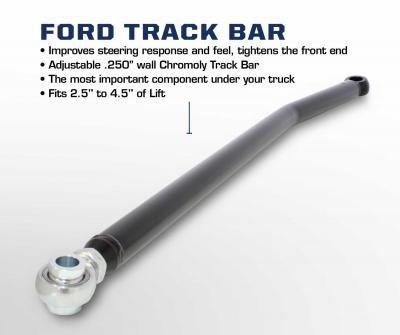

• Adjustable Track Bar

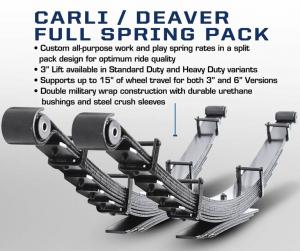

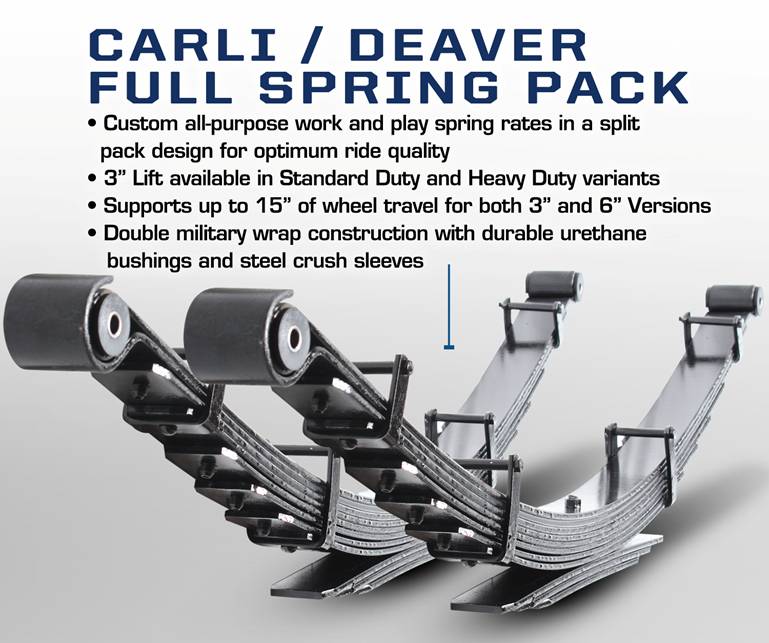

• Full Progressive Leaf Springs
• Bumpstop Drops Front and Rear
• Extended Braided Brakelines

Altered Vehicle Characteristics:

• 4.5" of Lift on the Front
• 2.5" of Lift on the Rear
• Vehicle is "Leveled"
• 10.0" of Front Wheel Travel
• 12.0" of Rear Wheel Travel

System Notes:

• Rear Driveshaft must be checked for 1 piece or 2 piece units. It is recommended that 2 piece driveshafts order a carrier bearing drop, PN# CS-CARRIERDROP-F, $35
• Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5" of Backspacing on 4.5" Lift Systems
• 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R

Shipping Info - This system ships on a pallet so we will need you to provide an address that accepts freight truck deliveries. Let us know if you need any help with this.
