Carli Ford Excursion Full Leaf Springs
Front Springs

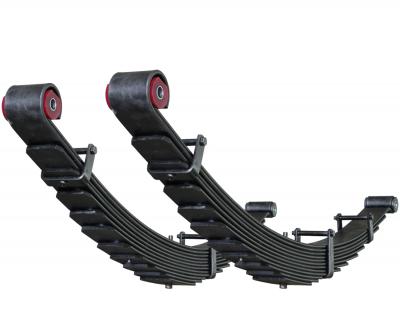

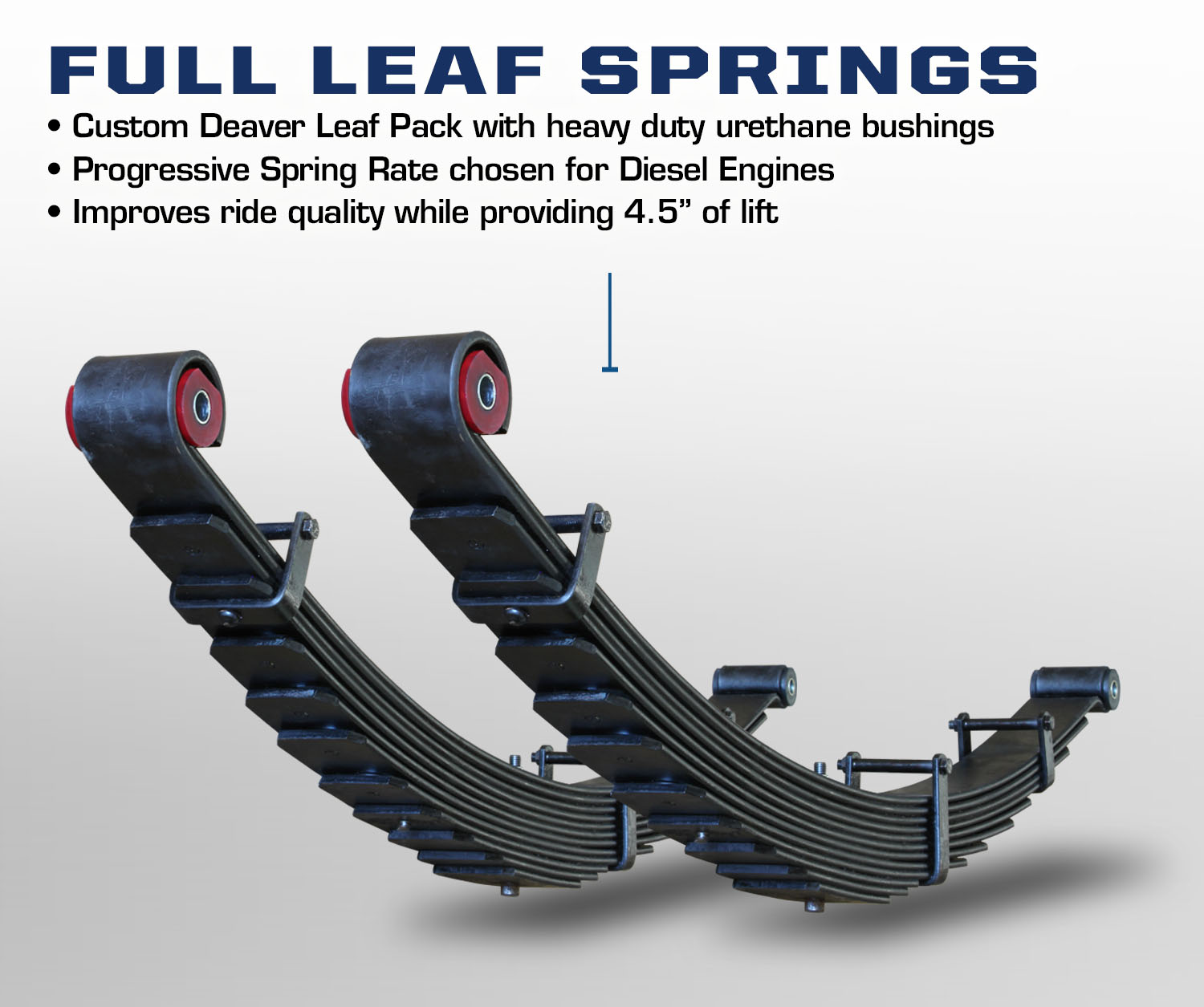

The Carli Suspension Excursion Front Full Spring Pack is designed and built to our specifications by Deaver Suspension, supporting a 50% increase in wheel travel. This spring pack delivers lift while offering smoother suspension cycling in all situations: highway, off road and towing without the use of lift blocks.
Front Springs Specifications
- 4.5” Lift Spring (Matches 3.5” Rear Lift)
- 50% Travel Increase
- 35” Tire Fitment
- Custom Progressive Rate
- Includes U-Bolts
Rear Springs

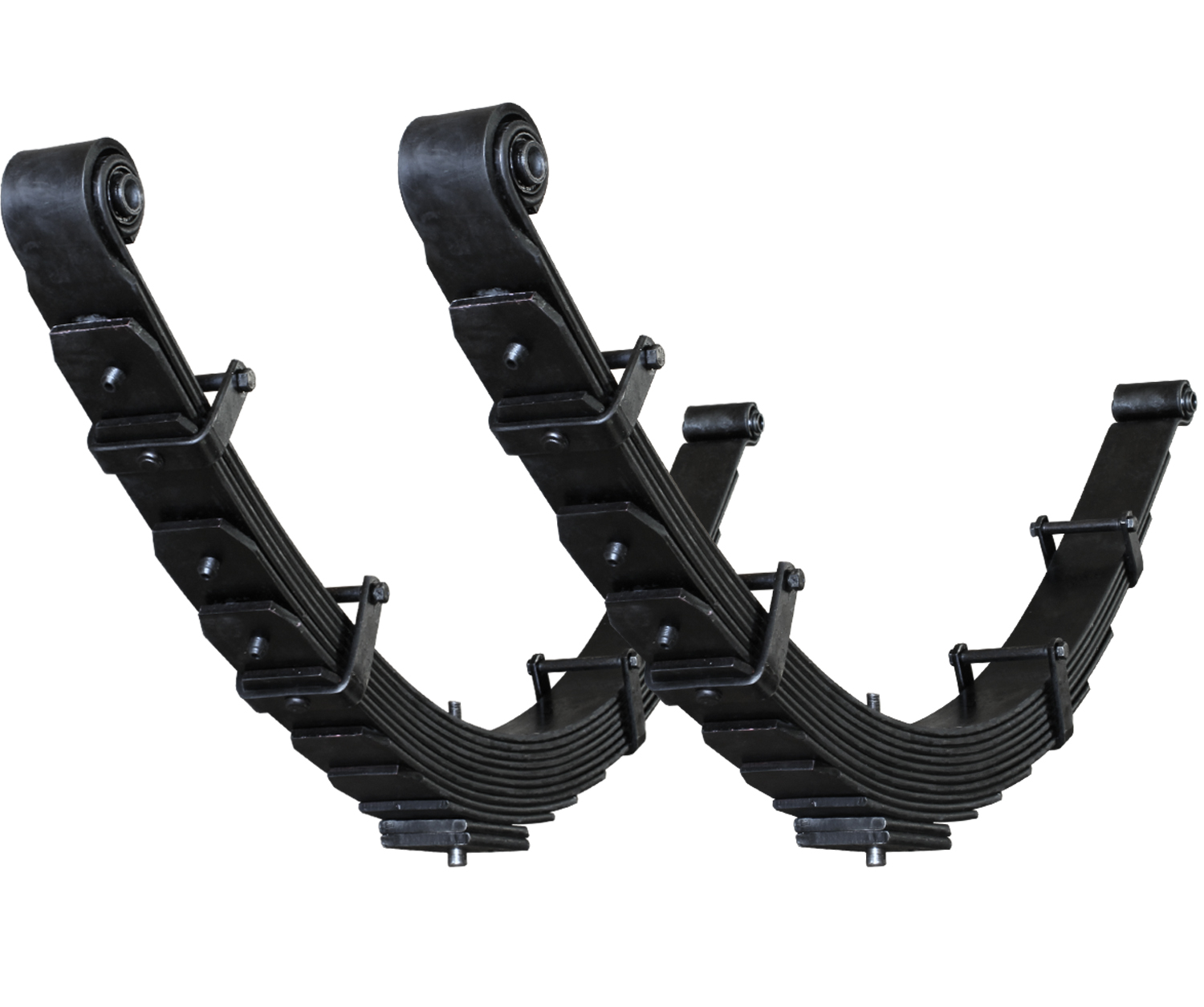

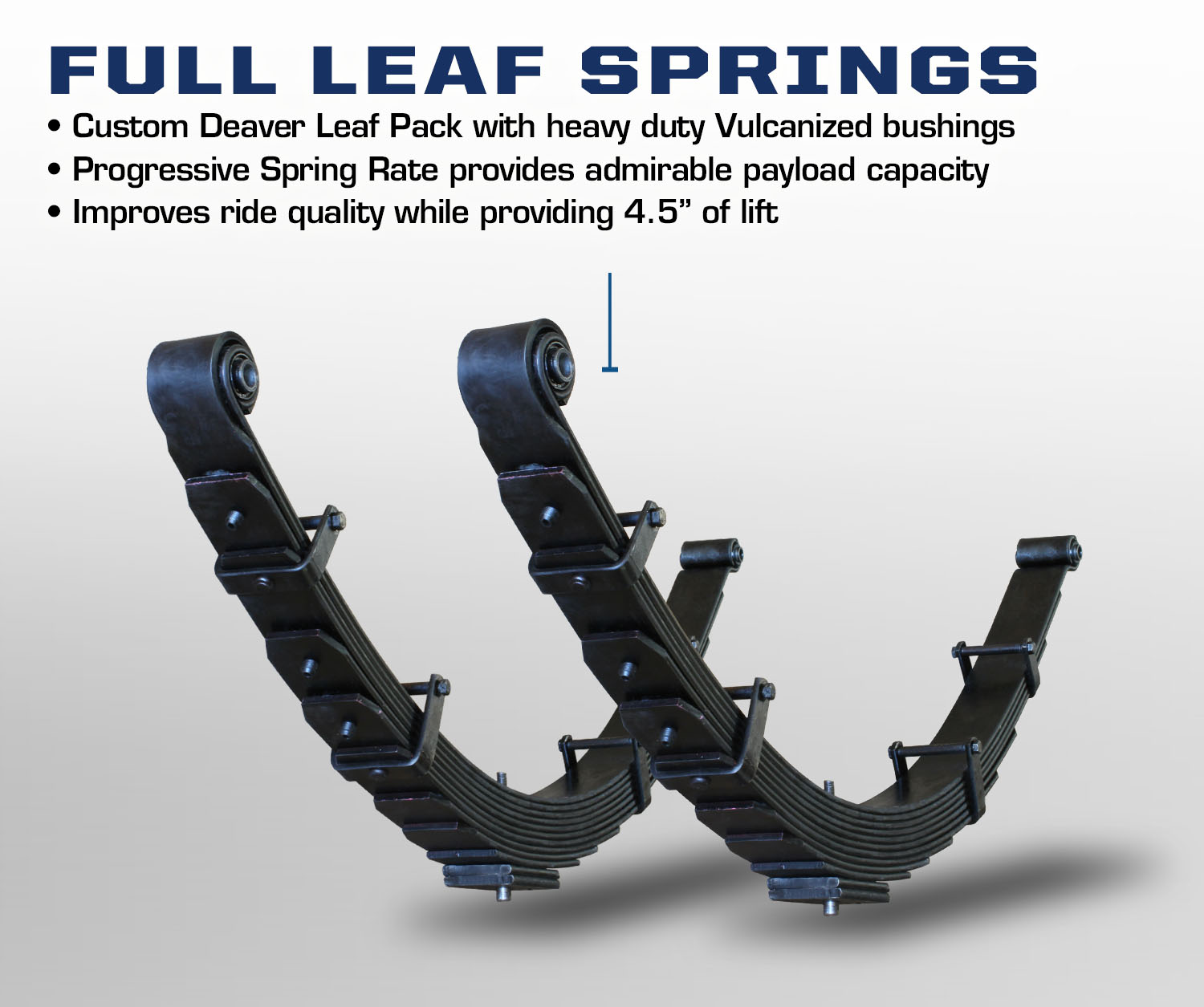

The Carli Suspension Excursion Rear Full Spring Pack is designed and built to our specifications, supporting a 50% increase in wheel travel while eliminating the factory lift block effectively eliminating the wheel hop and axle wrap experienced in the stock application. This spring pack delivers smoother suspension cycling in all situations: highway, off road and towing. To achieve the desire ride quality, these springs were designed with a slightly lighter than factory spring rate and are accompanied by a 15% reduction in payload capacity.
This capacity can be supplemented to the factory load rating with the addition of our Long Travel Airbag System allowing rear adjustment of any load.
Rear Springs Specifications
- 3.5” Lift Spring (Matches 4.5” Front Lift)
- 50% Travel Increase
- 35” Tire Fitment
- Custom Progressive Rate
- Includes U-Bolts
Fitment Guide:
- 2000 - 2005 Ford Excursion 4X4
Part Numbers
- CS-FFSP-FRONT-99 | FRONT 00-05 Ford Excursion 4x4
- CS-FFSP-99-EX | REAR 00-05 Ford Excursion 4x4
