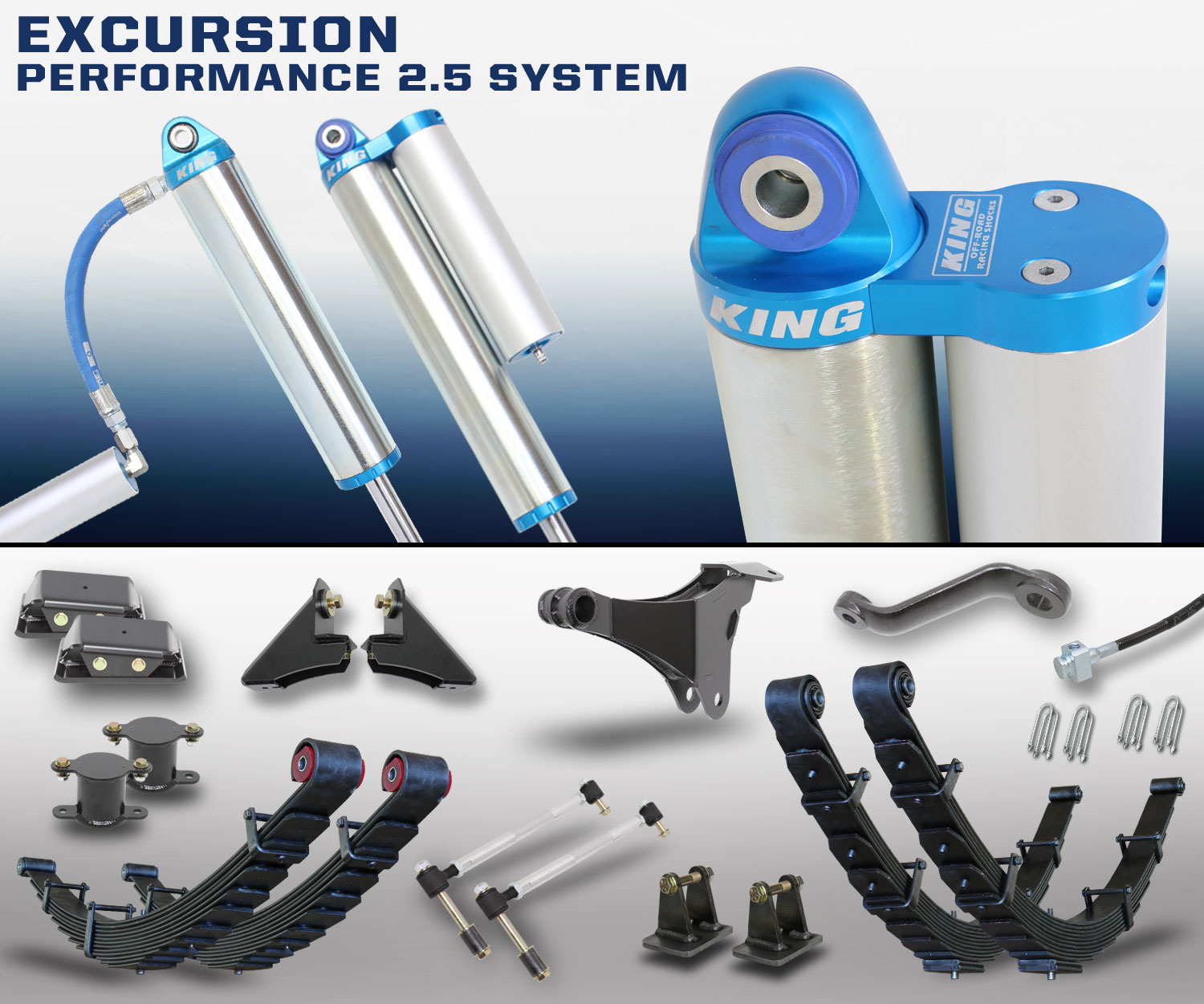

Carli Ford Excursion Performance 2.5 System

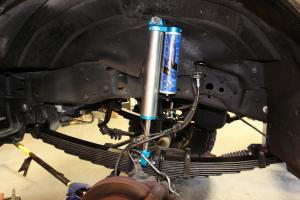

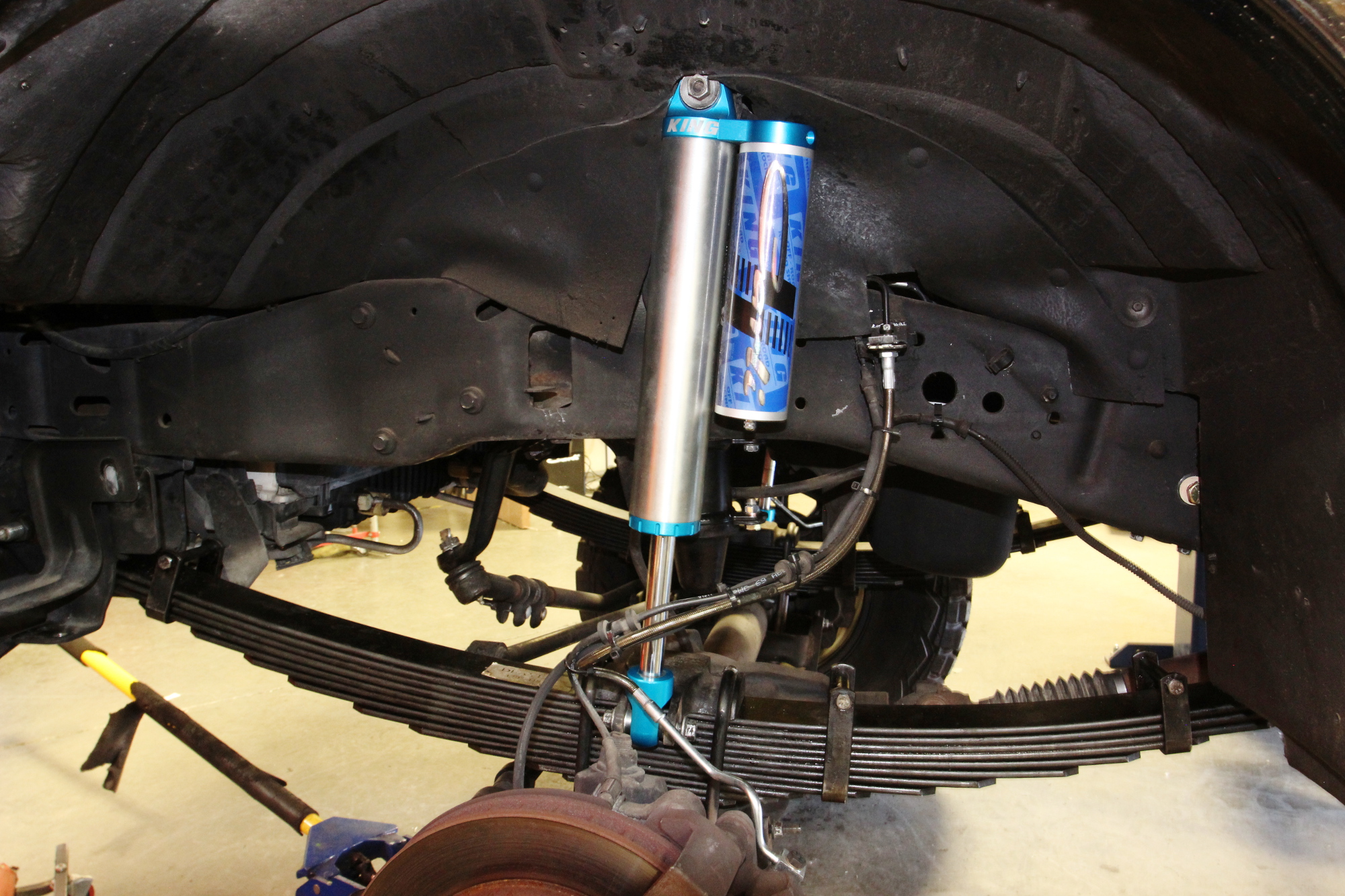

Carli Spec'd and Tuned Piggy Back Reservoir Front 2.5inch
Carli Spec'd and Tuned Remote Reservoir Rear King 2.5in

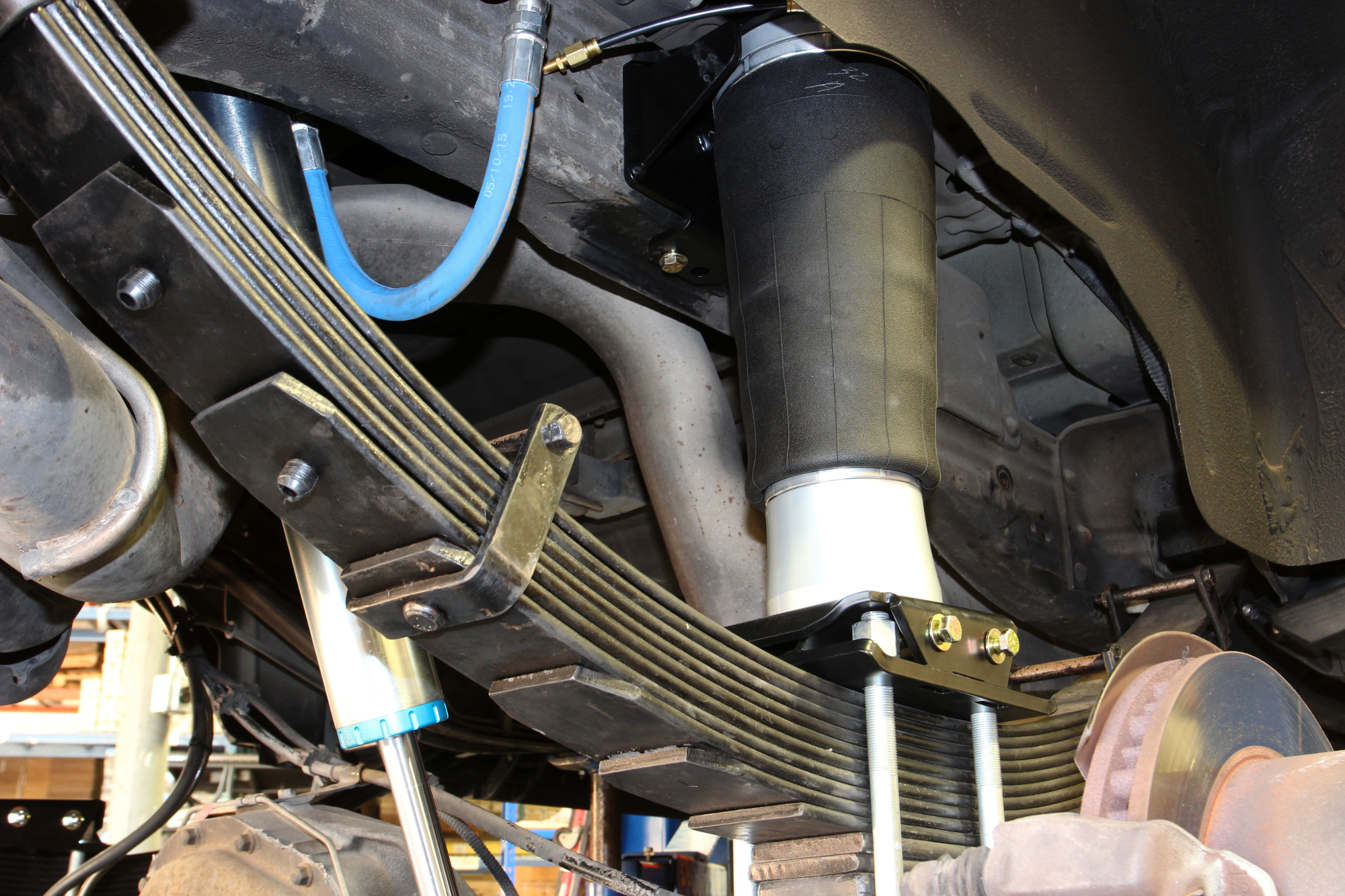

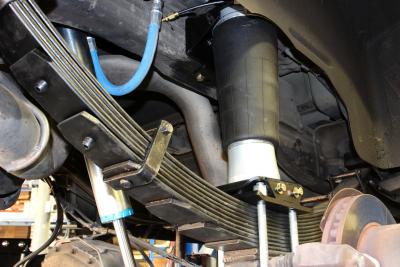

Carli Optional Long Travel Airbags for Load Leveling
Carli Drops Ensure Perfect Geometry
Back to List

Built To Order: Email For Lead Time


Eligible for FREE Shipping

Carli 99-05 Ford Excursion 4.5" Performance 2.5 System

Carli Suspension 8Lug Free Shipping

This new system for the 99+ Ford Excursion offers 4.5" of lift thanks to the Carli spec'd Deaver Leaf Springs (Front and Rear) and Carli Tuned King 2.5" Shocks on all 4 corners, this system needs no introduction. Carli's been in the Excursion game for a while, but the system previously sold as leaf springs and shocks leaving customer's to purchase hard parts from other manufacturers.

Well, nothing lives up to our expectations for quality and performance unless it's built by us. Enter the complete Suspension System for those looking to bolt on a level of performance previously unattainable in this platform addressing everything necessary to facilitate the new-found capability.

Carli will soon be adding Long-Travel Airbags and a Low Mount Steering Stabilizer options as well.

This system was developed for outstanding on-road and highway performance while offering King Off Road Racing shocks with our custom pistons and valve profile. Off road performance takes a huge step up, while maintaining our signature street ride. Your Excursion will sit higher with a leveled stance while boasting more wheel travel, far more control and comfort all with only a slight reduction in tow-capacity. Long-Travel airbags are available for those looking for auxiliary load-leveling.


  • Superior Ride Quality
  • Very Controlled Off Road
  • Increased Cornering Capability
  • Reducing and/or Eliminating Body Roll
  • Tighter street feel Driving Characteristics, Increased Suspension Response

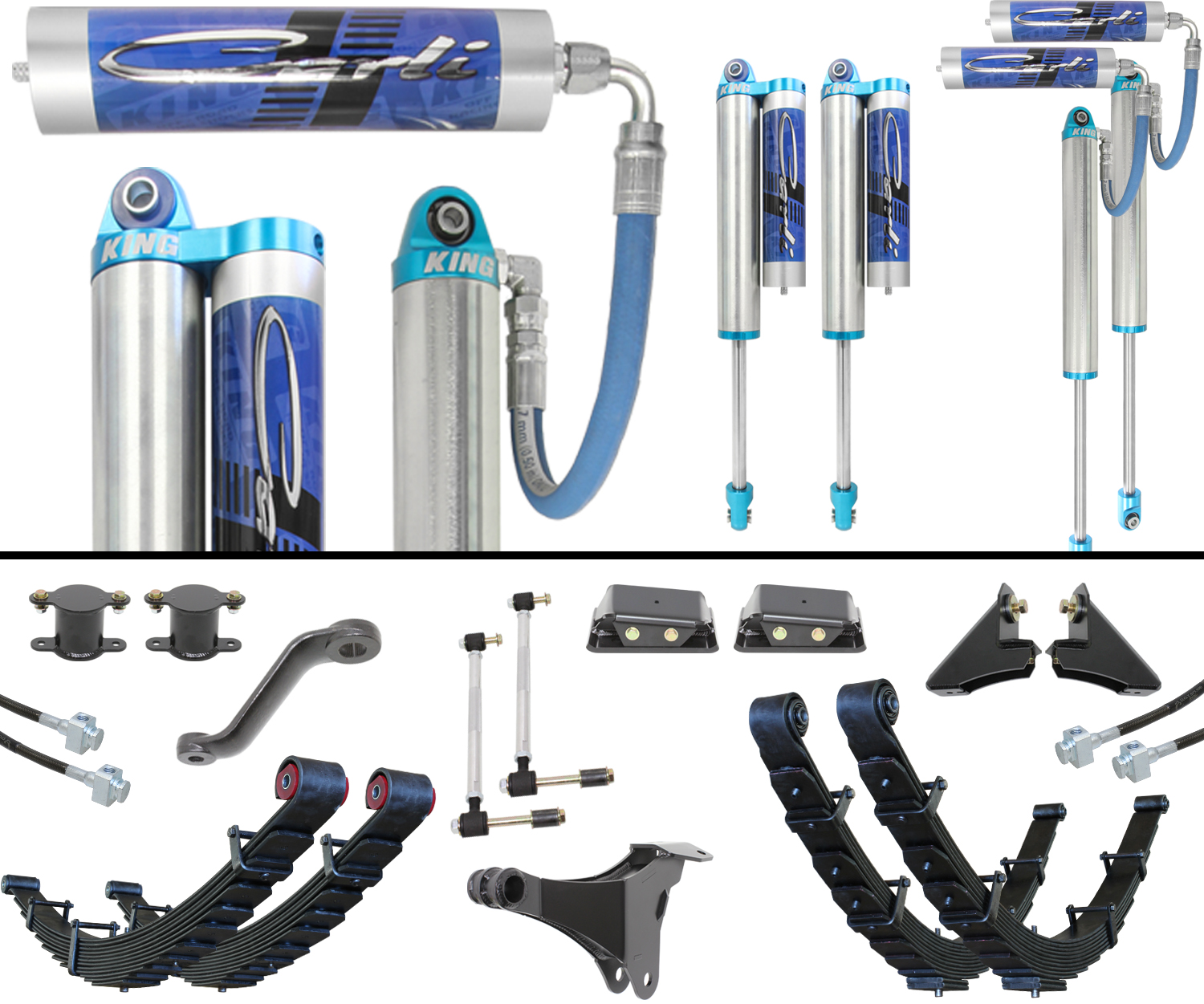

Fitment Guide:

  • 99-05 Ford Excursion 4X4

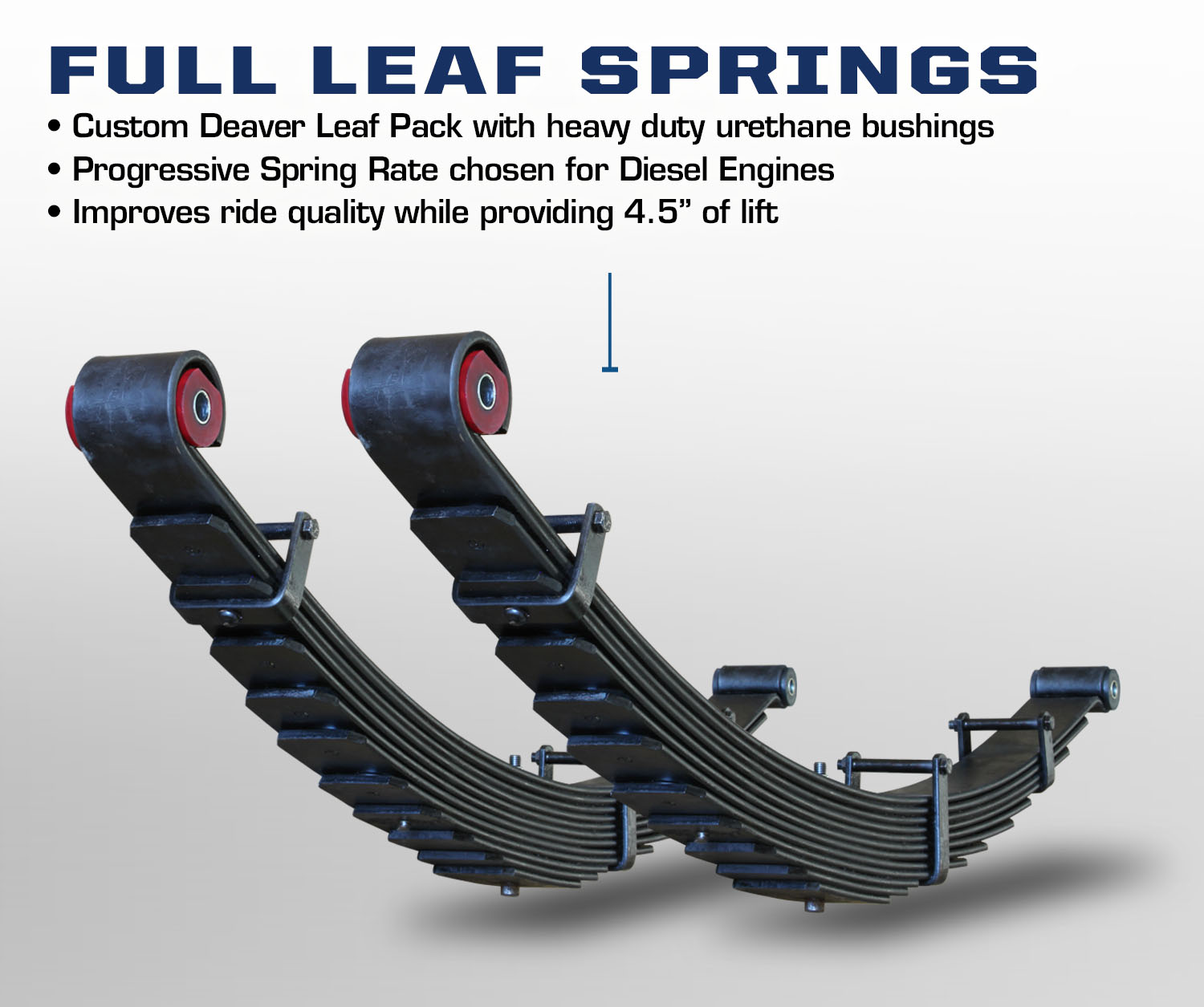

  • Front Deaver Full Leaves

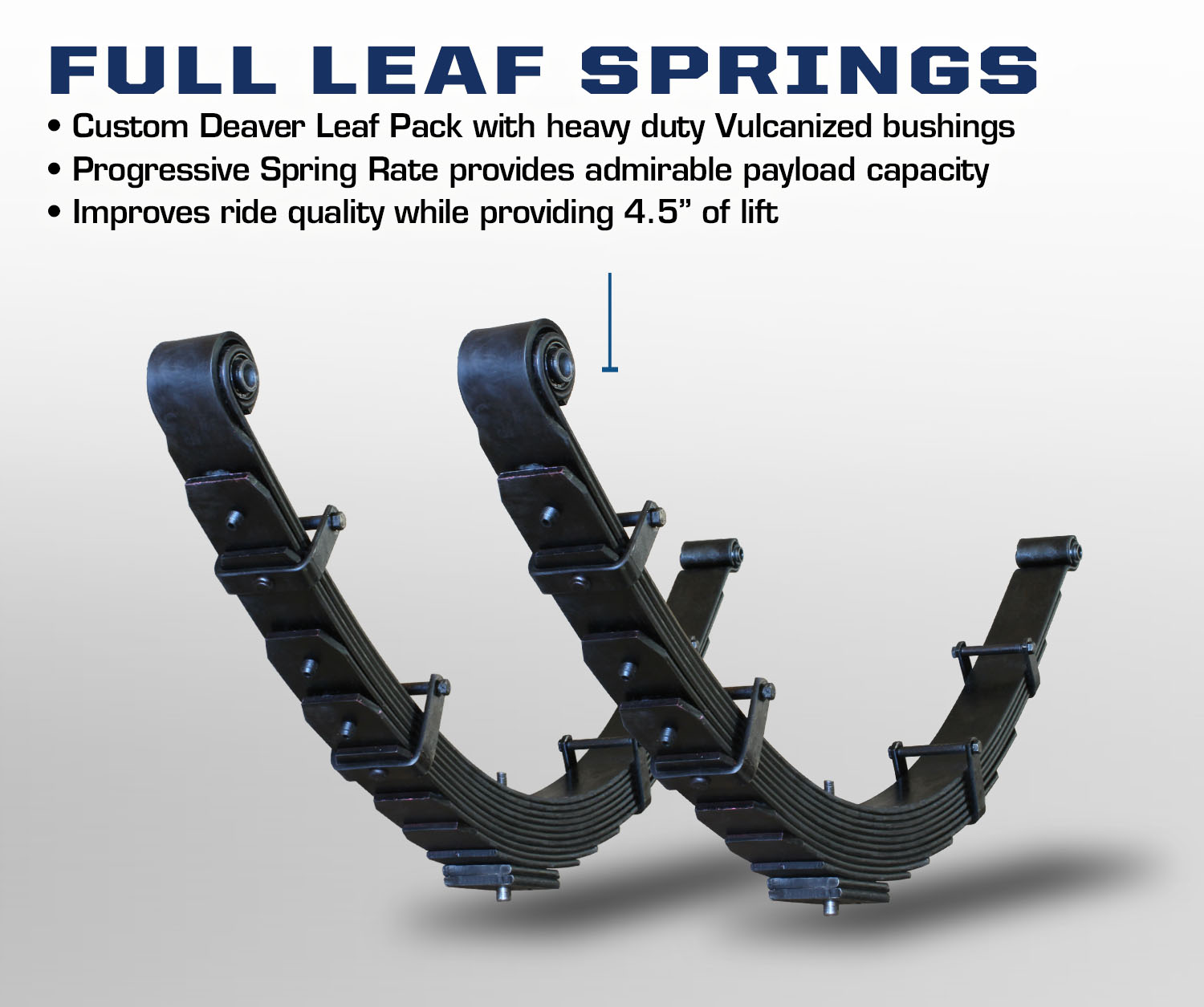

  • Rear Deaver Full Leaves
  • Front King 2.5 Piggyback Shocks
  • Rear King 2.5 Remote Resi Shocks
  • Stainless Shock Shafts
  • Drop Pitman Arm

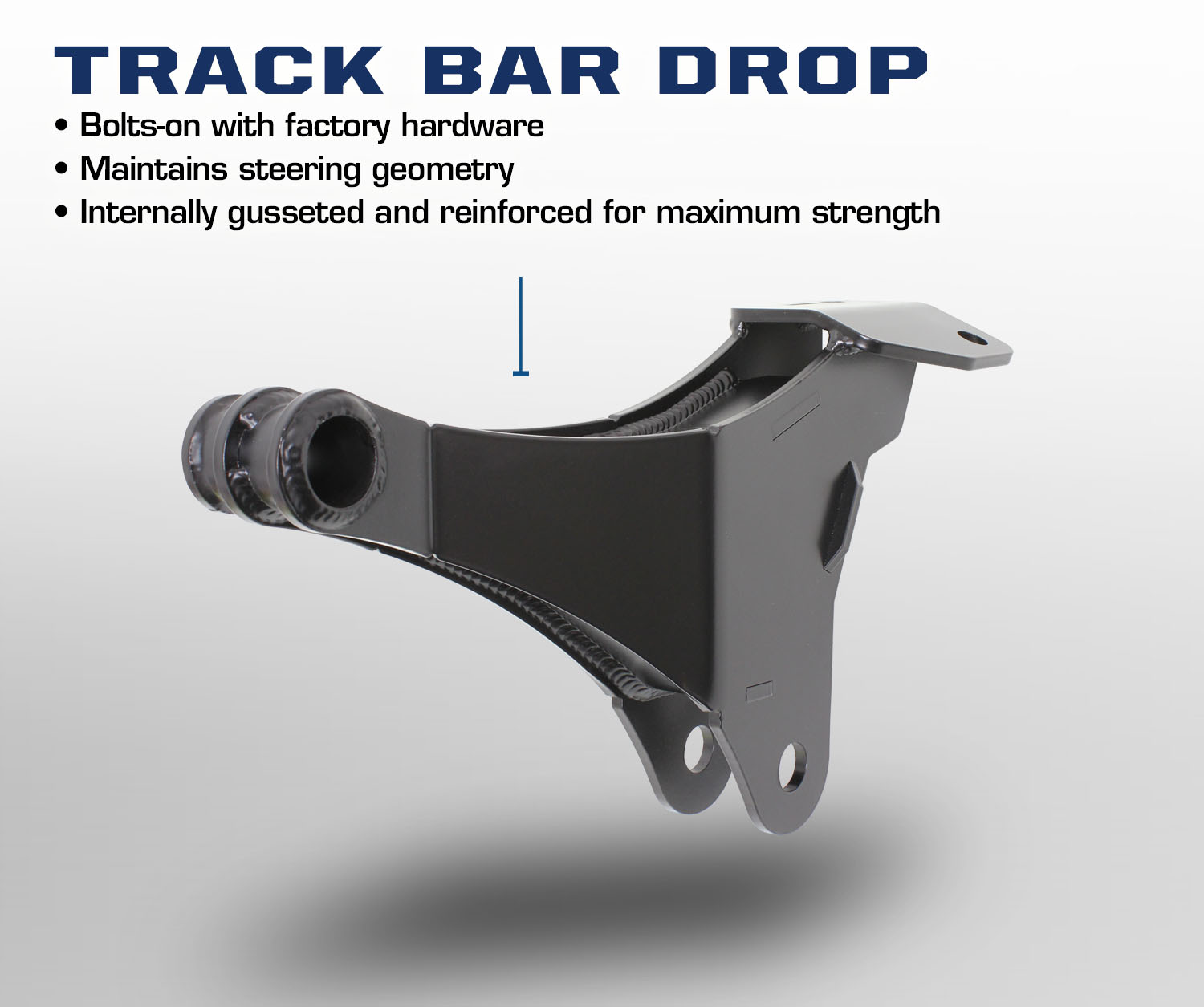

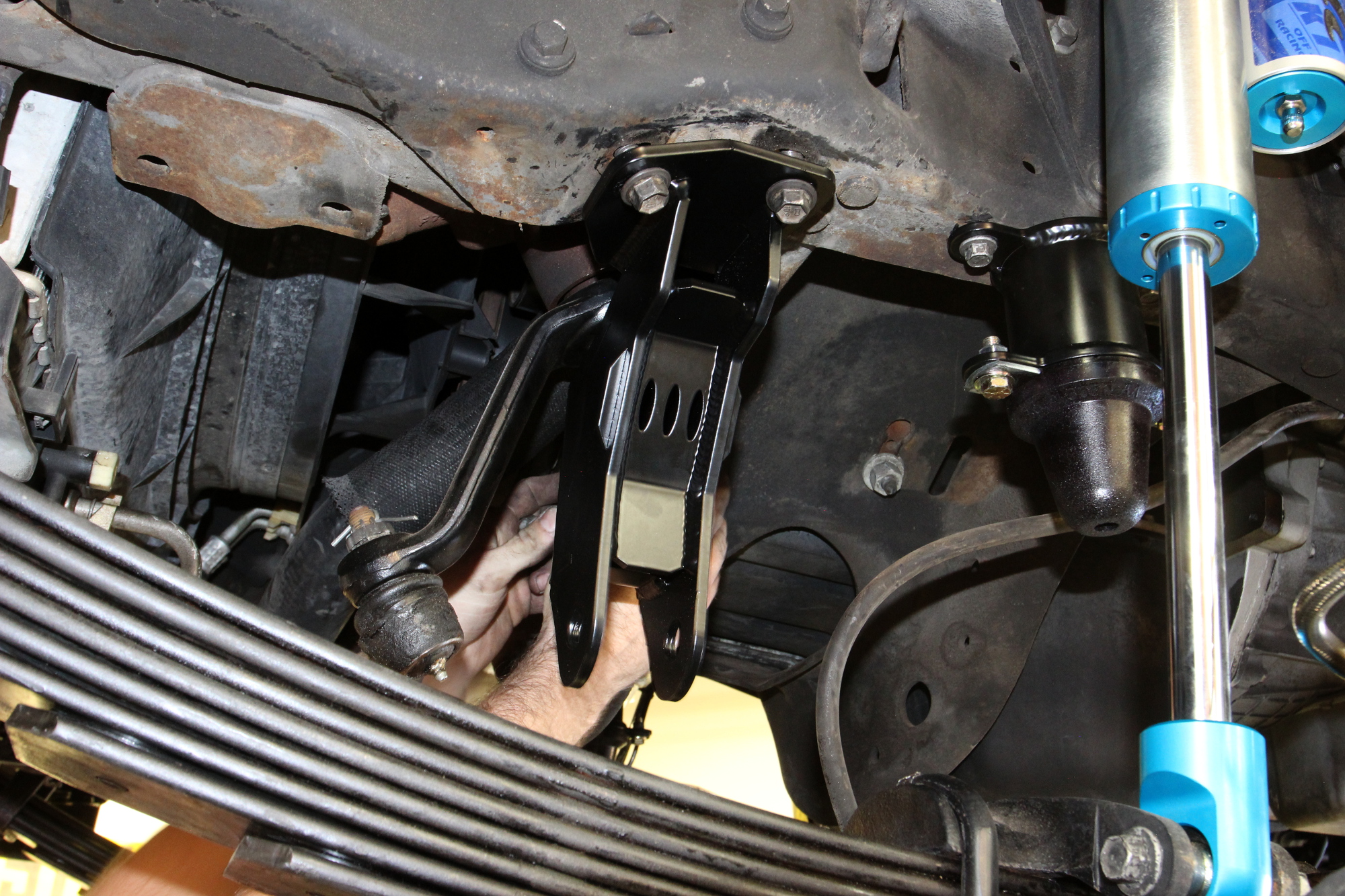

  • Track Bar Drop Bracket
  • Stainless Steel Extended Brake Lines

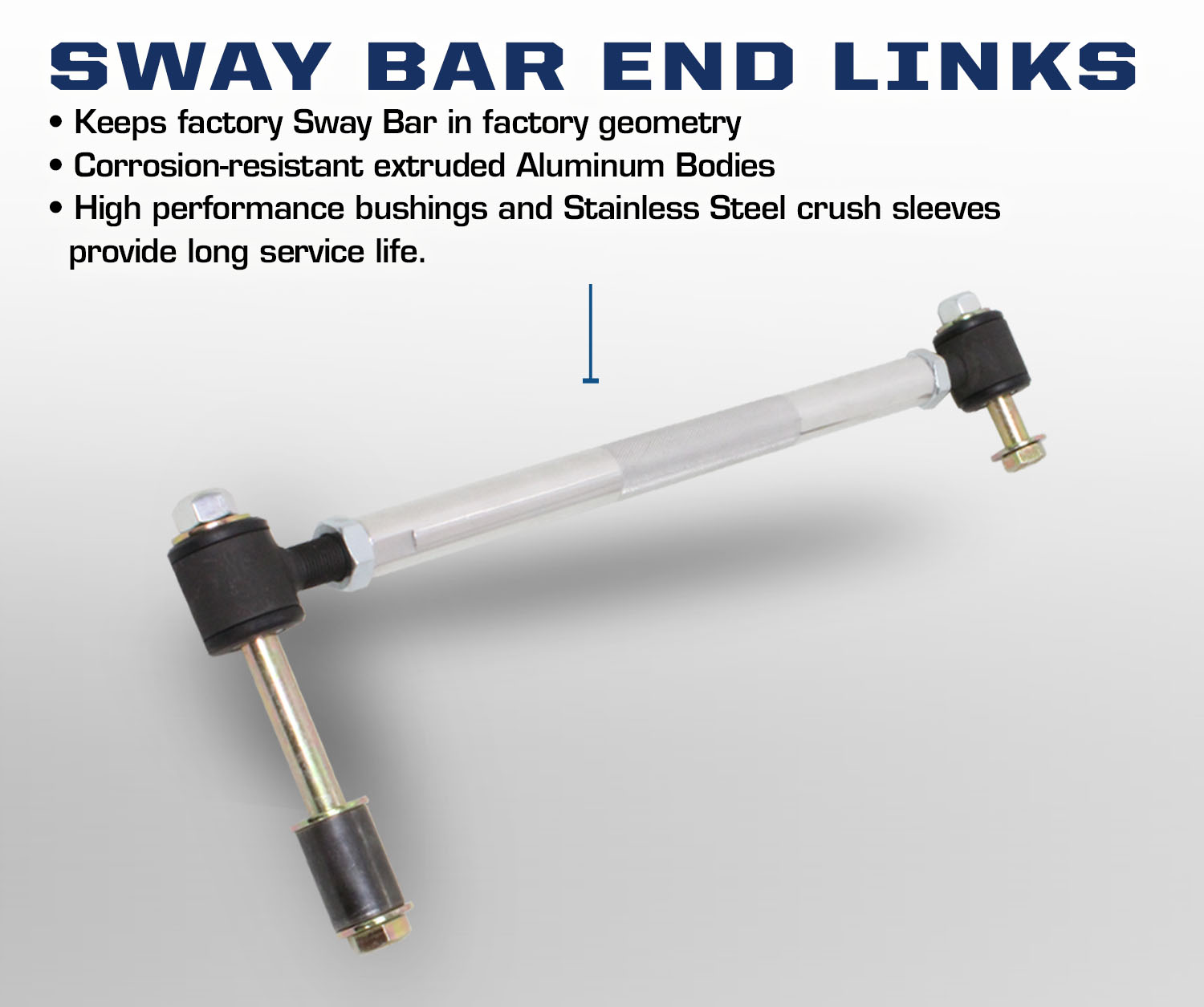

  • Sway Bar End Links

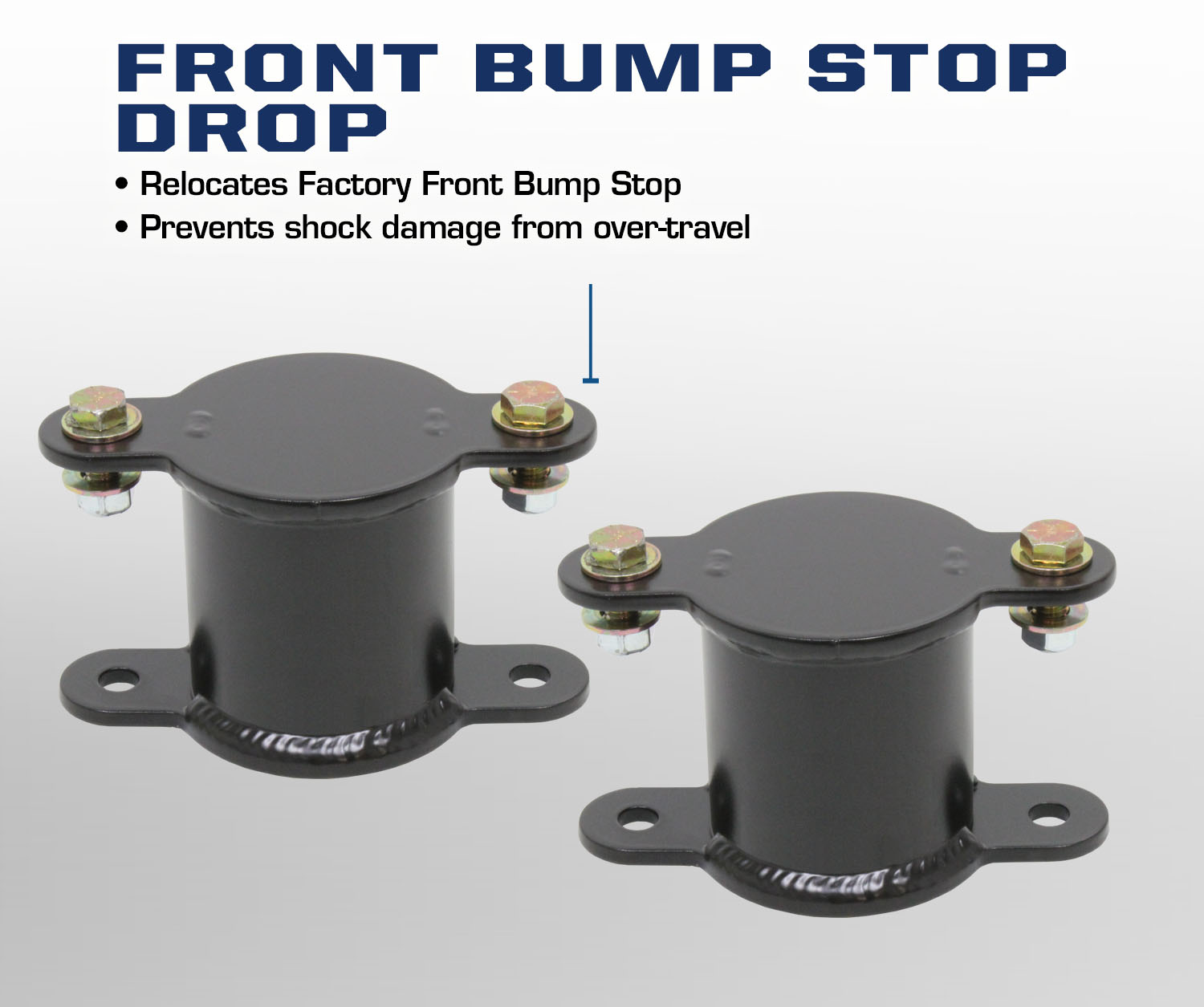

  • Front Bump Stop Drop Brackets

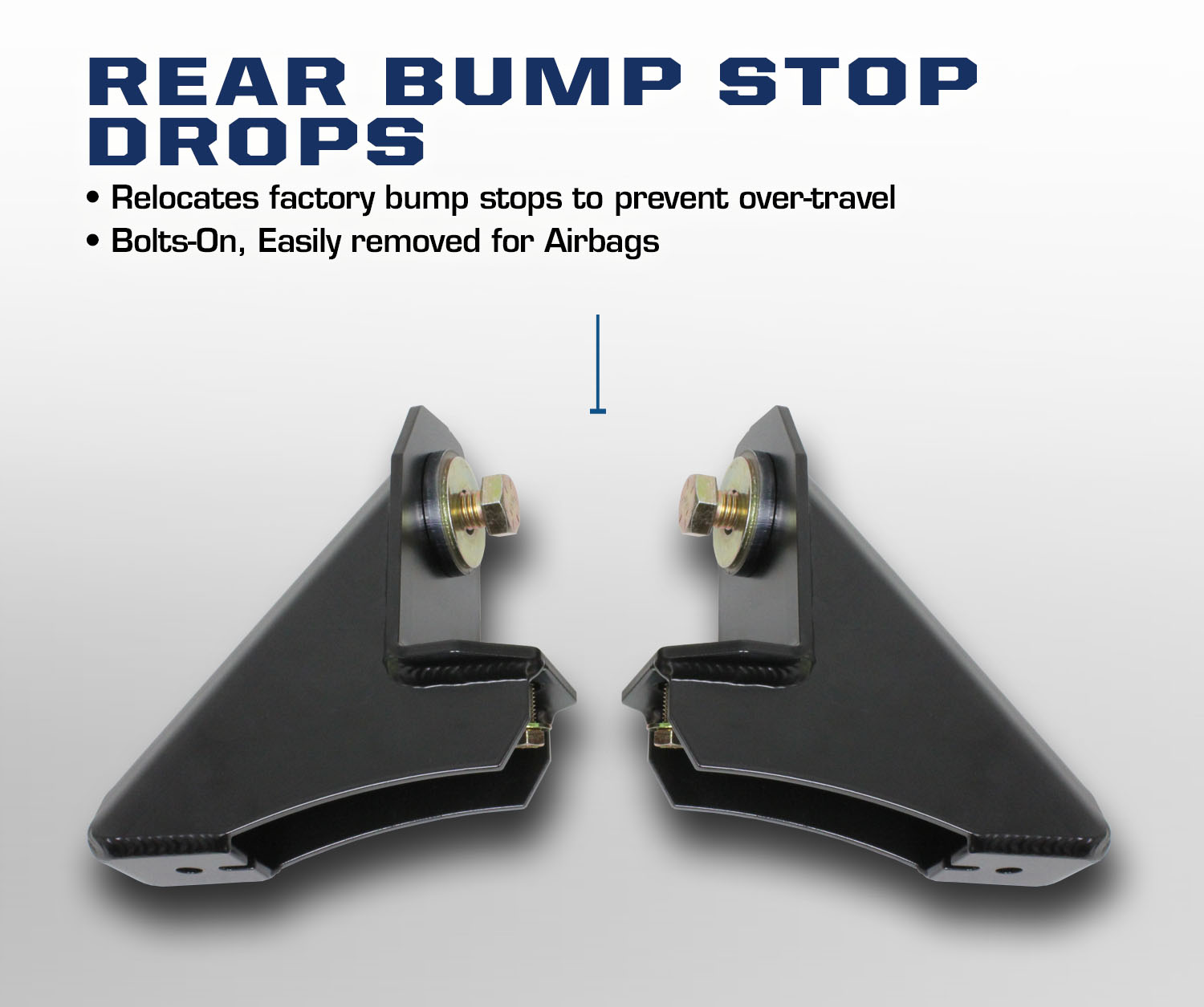

  • Rear Bump Stop Drops Brackets
  • 99-05 Ford Bottom Airbag and Bump Bracket

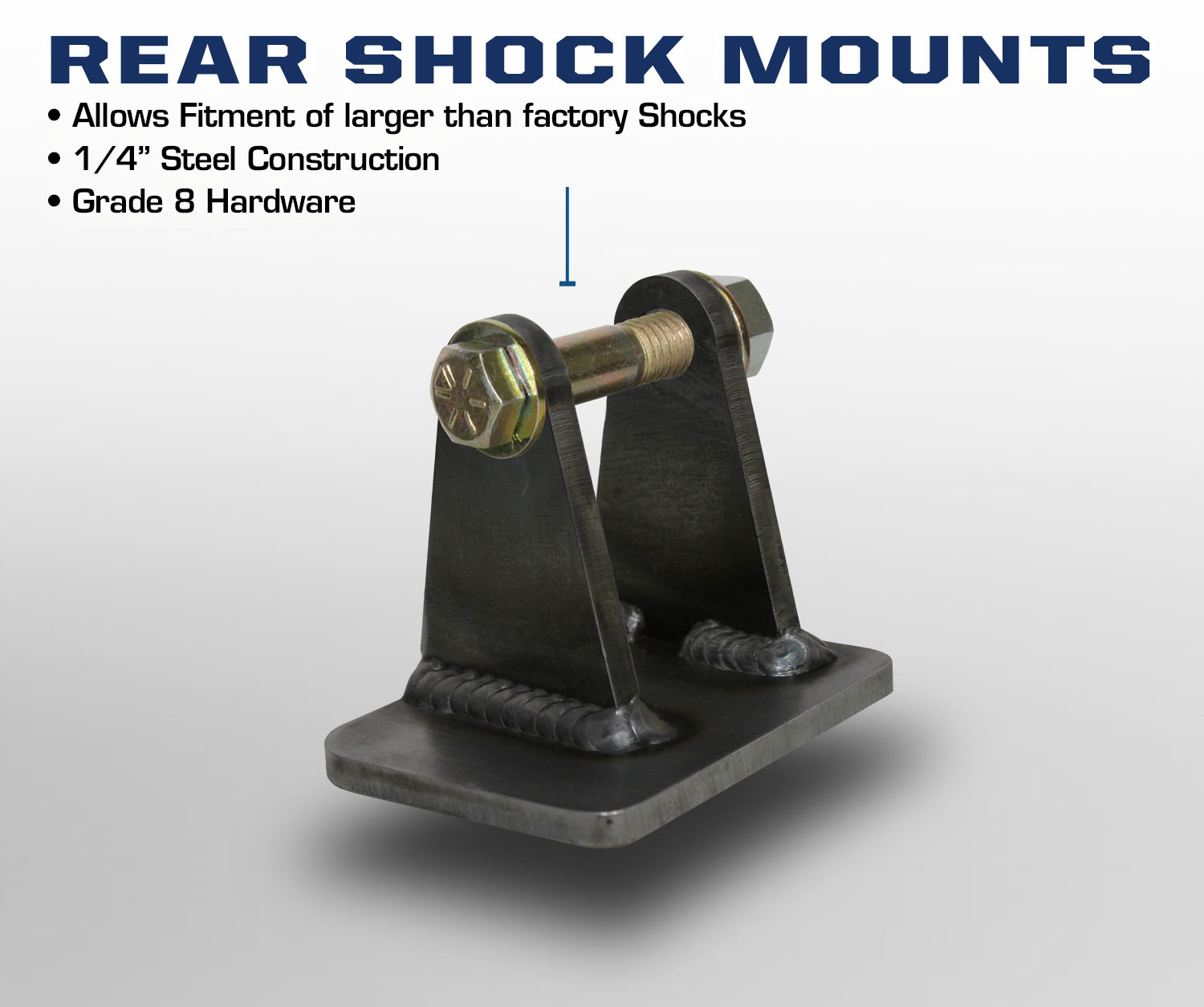

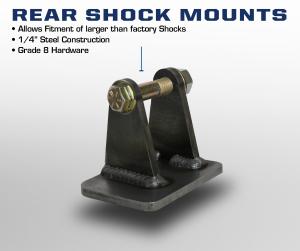

  • Replacement Rear Shock Mounts

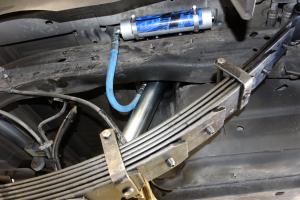

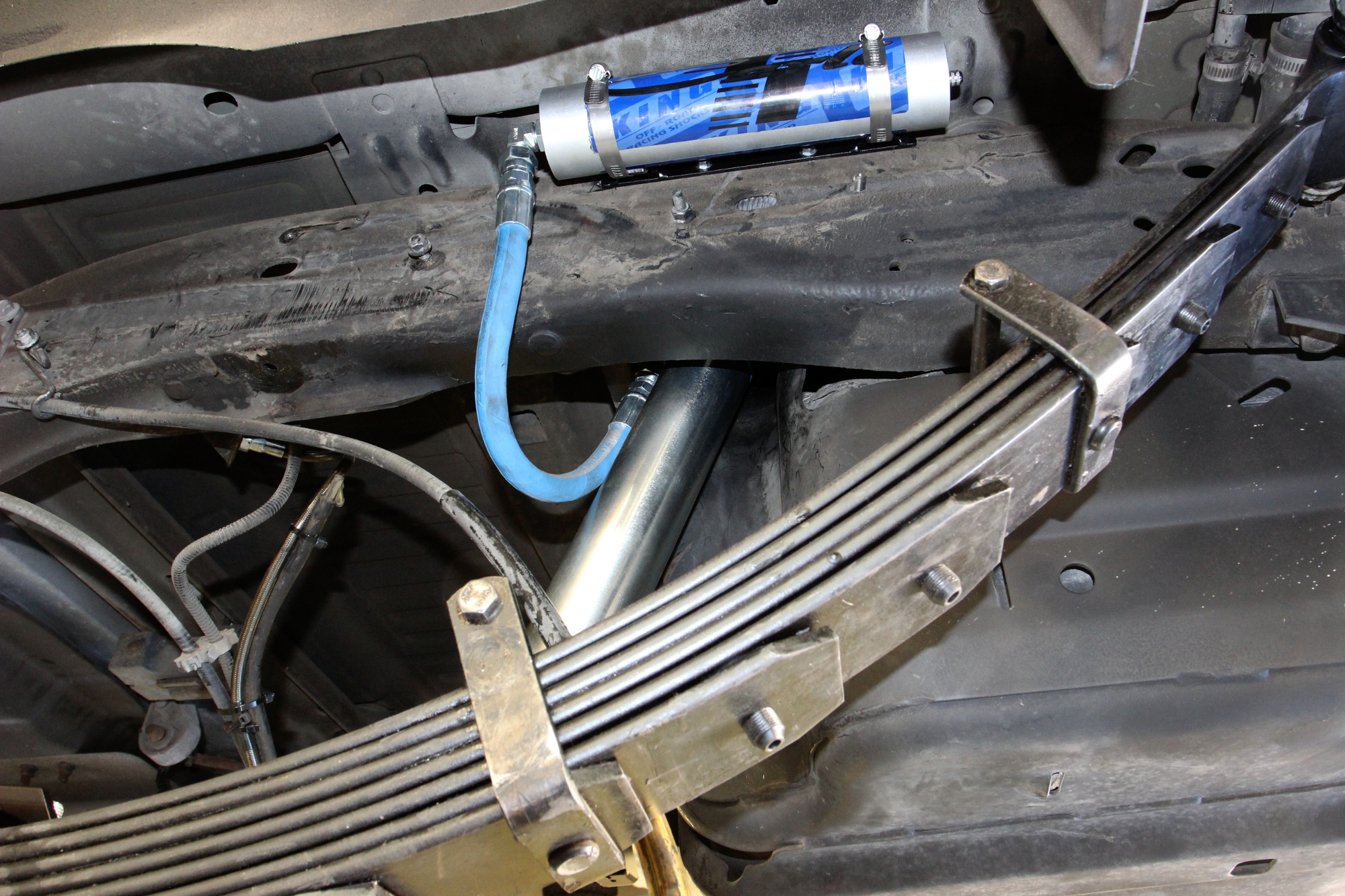

  • Rear Resi Mounts

System Notes:

  • Carli Recommends a 17"-18" Wheel, no more than 9" wide with 4.5" of Backspacing on 4.5" Lift Systems
  • Carli recommends a 17"-18" Wheel, no more than 9" wide with 4.5" of Backspacing for 35” E-Rated Tire Fitment. Recommended unloaded Tire Pressure 45F/40R
  • Rear Driveshaft must be checked for 1 piece or 2 piece units. It is recommended that 2 piece driveshafts order a carrier bearing drop, PN# CS-CARRIERDROP-F, $35

Altered Vehicle Characteristics:

  • 4.0" of Lift on the Front
  • 3.0" of Lift on the Rear
  • Vehicle is "Leveled"
  • 9.0" of Front Wheel Travel
  • 12.0" of Rear Wheel Travel

Shipping Info - This system ships on a pallet so please provide an address that accepts freight truck deliveries. Please contact us if you have any questions about shipping

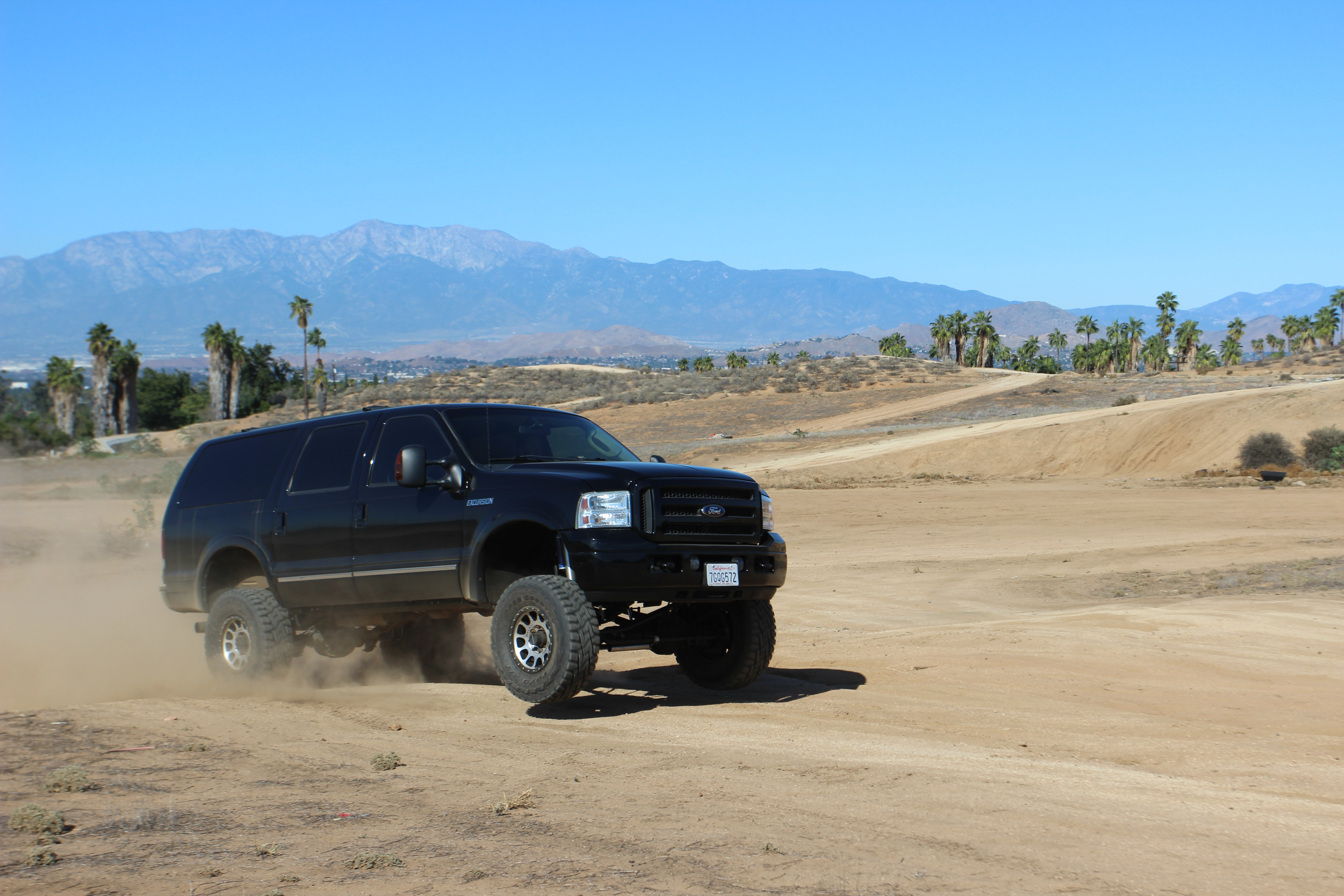

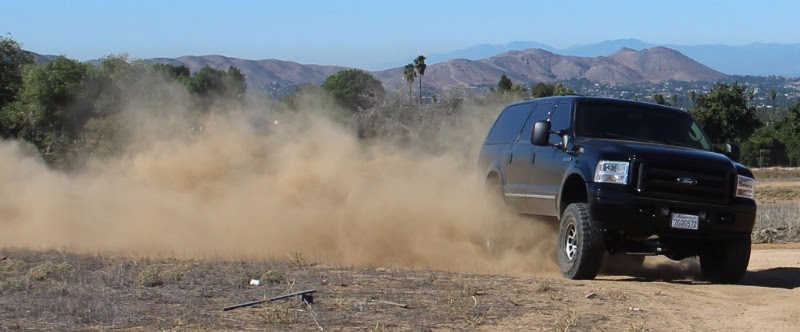

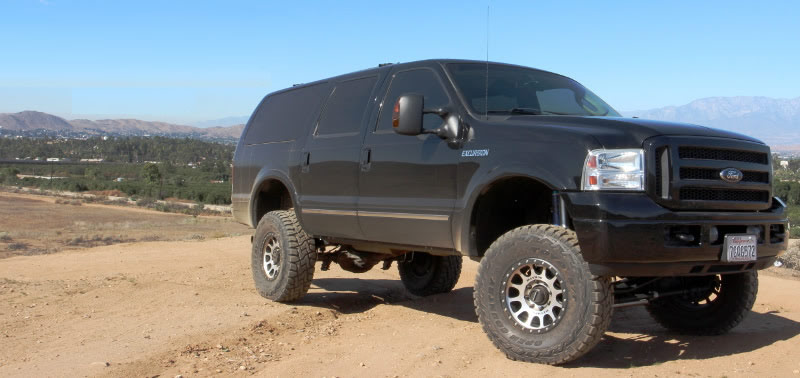

/Carli Suspension Ford Excursion 4_5in Lift Kit in action

Part Number

  • CS-FEXP25
