Carli Spec Backcountry Leveling Kit 2014+ Ram 2500 Diesel

The Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the Leveling Kit for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. The 2.5” lift height doesn’t require the front or rear geometry correction of our 3” Systems.

Utilizing Carli SPEC 2.0″ Diameter, Remote Reservoir shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.

The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren’t looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, on and off-road, this is the perfect kit.

Further, ride quality can be substantially increased with the addition of our Torsion Sway Bar. We recommend a 35” tire on an 18” wheel that’s no more than 9” wide with 5.5”-6” Backspace. Recommended unloaded tire pressure is 45F/40R. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.

Note: This system will NOT be upgradeable to any other Carli Suspension Systems. It’s designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. We recommend slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. We did not experience a coil bow in any of our test trucks but it’s possible at the 2.5” lift height without a Radius Arm Drop Bracket.

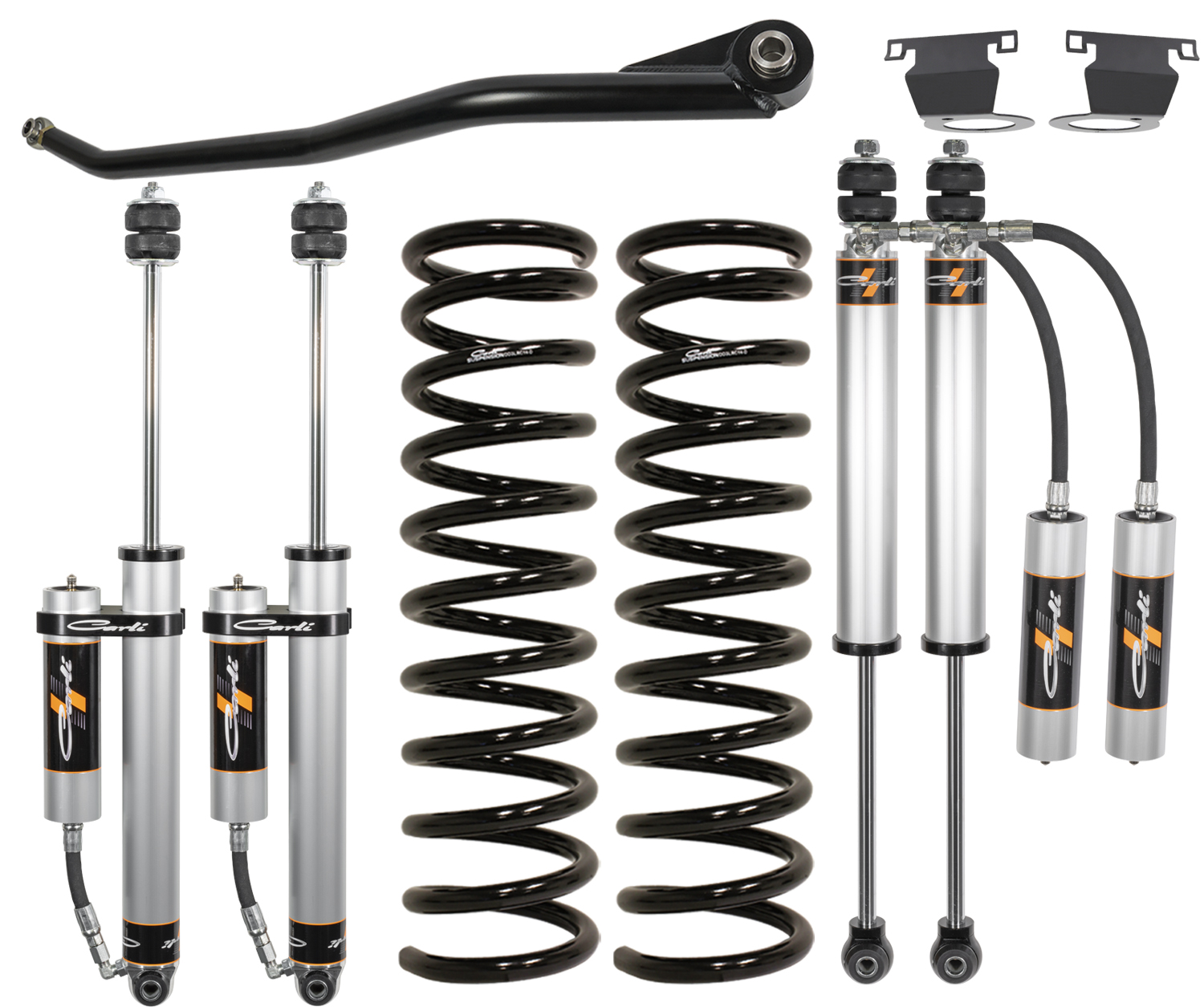

FEATURES:

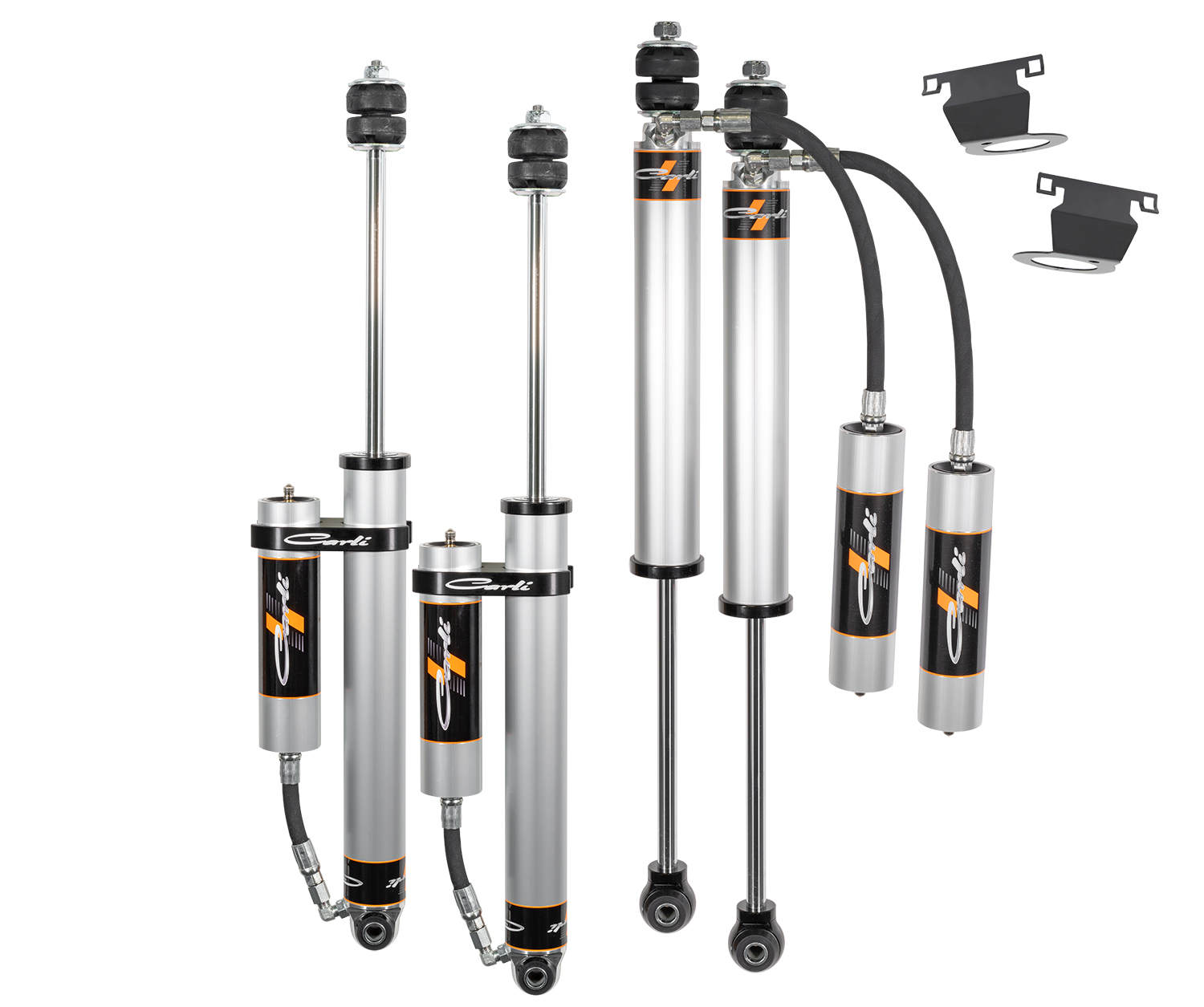

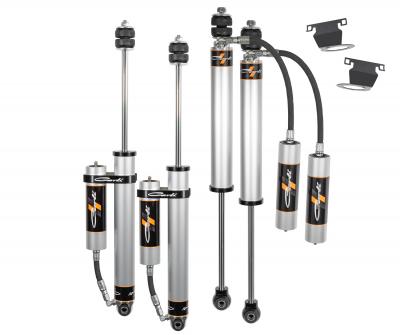

• Carli Spec 2.0 Remote Reservoir Front Shocks
• Carli Spec 2.0 Remote Reservoir Rear Shocks
• Front and Rear Reservoir Mounts

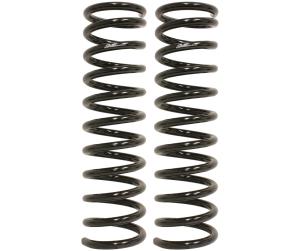

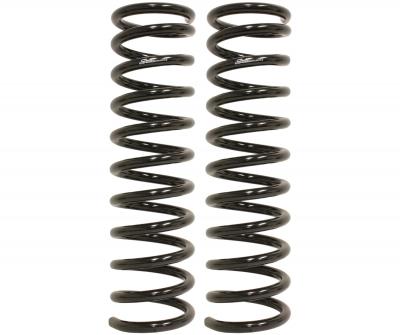

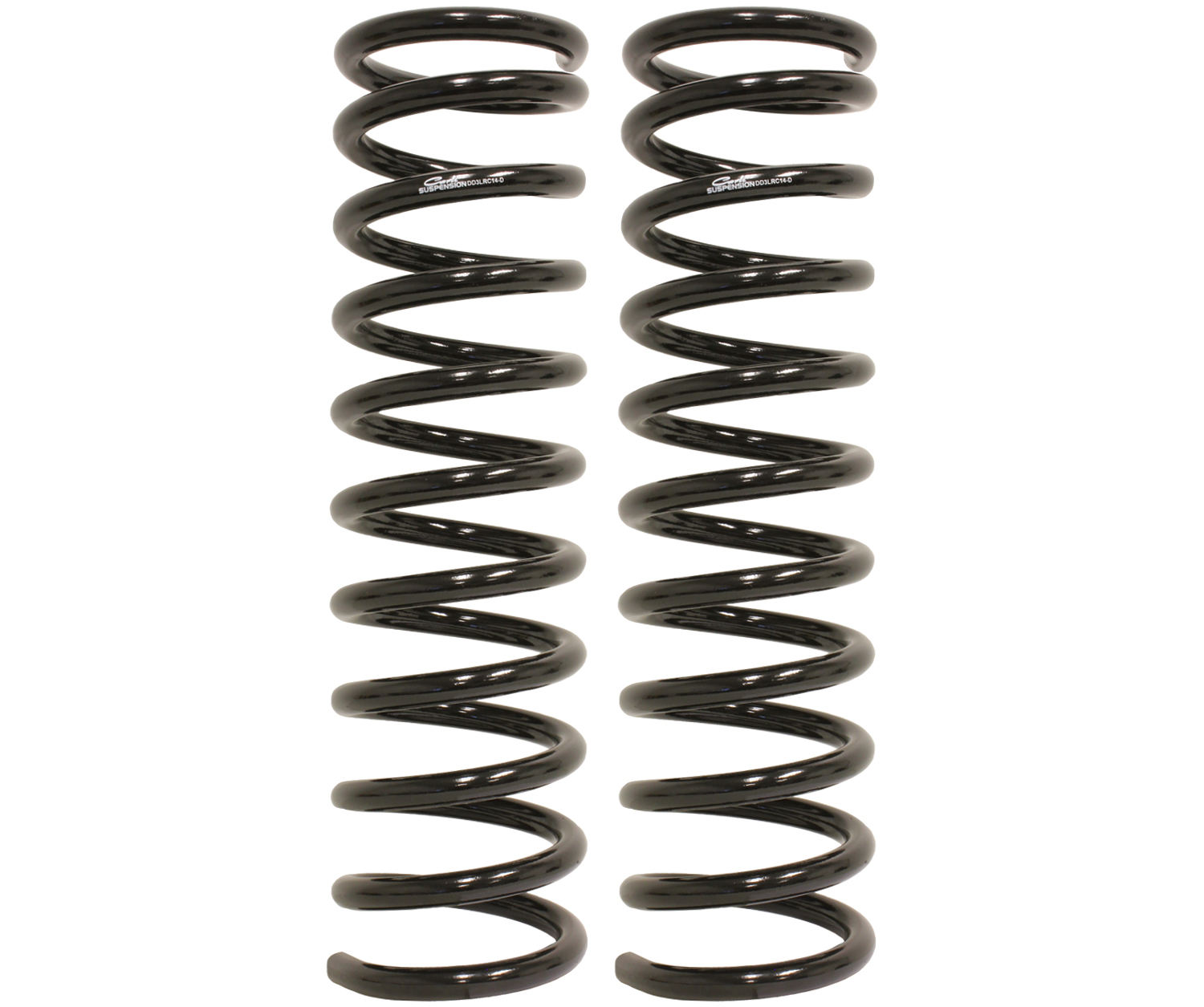

• Linear Rate 2.5" Front Coils

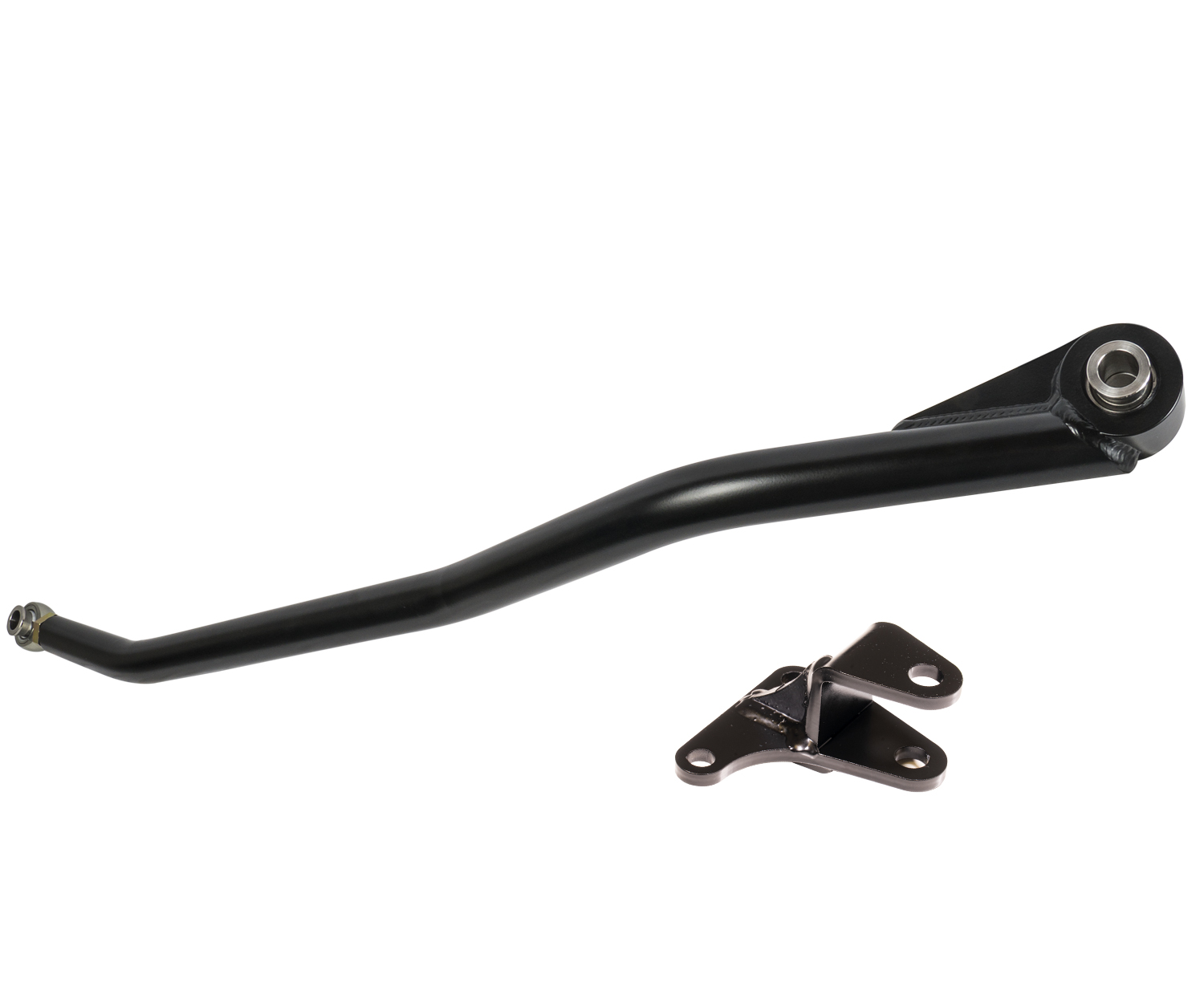

• Adjuatable Track Bar

DODGE RAM FITMENT GUIDE:

• CS-DLVL-BC-CS-1419-D| 2014-2023 Ram 2500 4wd Trucks w/coil rear suspension (will not fit the 3500's)

Altered Vehicle Characteristics:

• 2.5" of front lift  (varies slightly with different cab configurations)

System Notes:

• Wheels - Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5.75" of Backspacing on Leveling Systems
• Tires - 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R
• Recommended Configuration - Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
• Torsion Sway Bar - Selection of the Torsion Sway Bar Replacement will not Require size selection as the entire sway bar assembly is replaced.

Sway Bar Options

• CS-DTSB3-14 - 3" Torsion Sway Bar
  • Easily the Best "Bang for the Buck" Upgrade for ride quality
  • Allows front suspension to move freely without giving up Control
  • Heavy duty chromoly arms and end links with 5/8 race series heim joints

Radius Arms

• CS-DFRA-14 - Fabricated Radius Arms
  • 1/4" Cold Rolled Steel
  • Internal X-Bracing
  • Serviceable Spherical Joints
  • Improved ride quality and control
  • Quad Wrap Limit Straps & Hardware

We've finished installing the 2014-18 Ram 2500 (Coil Spring Rear) Leveling System on the 2019+ Ram 2500 HD - IT FITS!
