Carli 2019+ Ram 3500 Pintop Leveling System
The day has arrived and it’s our pleasure to announce that the 2.5" Carli Pintop 2.5 LevelingSystem for the 2019+ Ram 3500 is now available to order!
This system is designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck. At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel King 2.5” Remote Reservoir Shocks that have been custom tuned, in house, for superior ride quality and handling both on-road and off. The rear piggyback reservoir shocks are also included with this system and have been custom tuned to maximize the ride quality of the factory rear leaf springs. Aside from the block, the rear springs remain unmodified and thus, load capacity is maintained while on and off-road handing and predictability are massively improved. For those that love the way their Ram tows from the factory but don’t want to be limited to a crawl when leaving the pavement, this is the perfect kit.
The Details
This system boasts Carli specific, blueprinted, King 2.5” shocks on all four corners. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.
The included Adjustable Track Bar recenters the axle laterally at the taller ride height white the Carli reservoir mounts hold the 9” Remote Reservoirs on display over the front tire. We provide a 1″ rear lift block for the 2019+ platform (these trucks are 1″ lower in the rear than their 13-18 counterparts). Further, ride quality can be substantially increased with the addition of our Torsion Sway Bar. We recommend a 35” tire on a wheel that’s no more than 9” wide with 5.5”-6” Backspace. An 18” diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size. For more details, see our article on wheel and tire selection and tire pressures:
**This system will NOT be upgradeable to any other Carli Suspension Systems.** It’s designed to be a solution for customers wanting a quality, big-shock system boasting huge off-road capability, minimal lift and NO reduction in payload or hauling capacity. We recommend slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops included. For this reason, customers may experience a slight bow in the coil spring. We did not experience a coil bow in any of our test trucks but it’s possible at the 2.5” lift height without a Radius Arm Drop Bracket. A Radius Arm Drop Bracket can be added to alleviate bow and recenter the caster adjustment if bow is encountered. This system will result in tight and responsive, sports-car like handling; the 3” Suspension Systems will ride softer in the rear given the included reduced capacity rear springs.
NOTE: This system is NOT compatible with the auto-level, air-assist Rams.
2.5″ front, 1″ Rear lift designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck.
- The most wheel travel out of any bolt-on suspension system
- Custom tuned the ride quality
- The King 2.5 Remote Reservoir shock was blueprinted using our system specifications and comes with our custom shock tune.

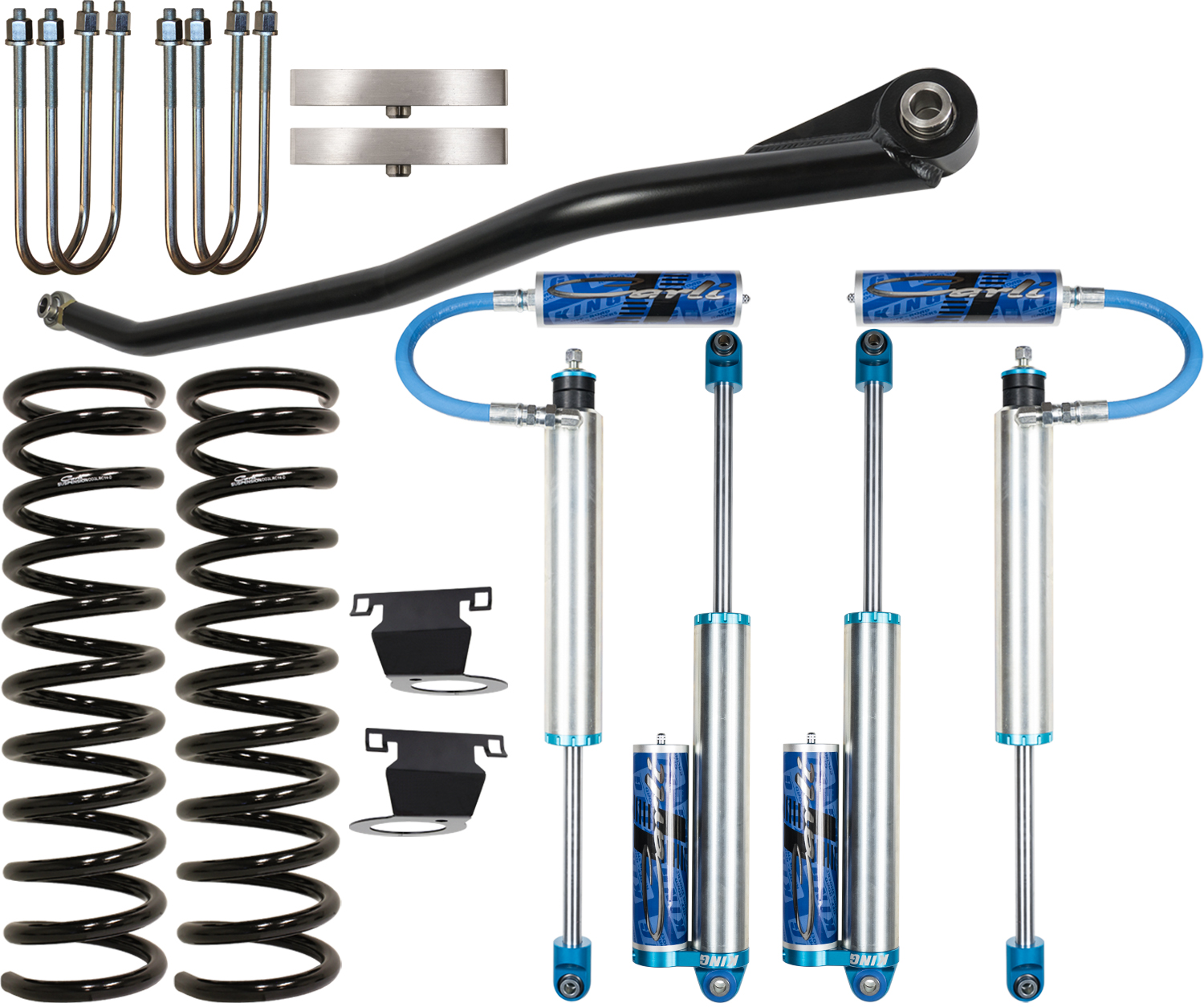

FEATURES:
- Leveling Front Coils
- Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts
- Adjustable Track Bar with Stabilizer Bracket
- 1″ Billet Block & U Bolts
DODGE RAM FITMENT GUIDE:
- 2019+ Ram 3500 4wd Diesel Trucks
Altered Vehicle Characteristics:
- 2.5 - 3.5" of front lift (varies slightly with different cab configurations)
- 1"of rear lift (varies slightly with different cab configurations and the amount of stock spacers installed)
- Level Ride
Part Numbers
- 2019+ CS-DPT25-LVL-19-D-3500

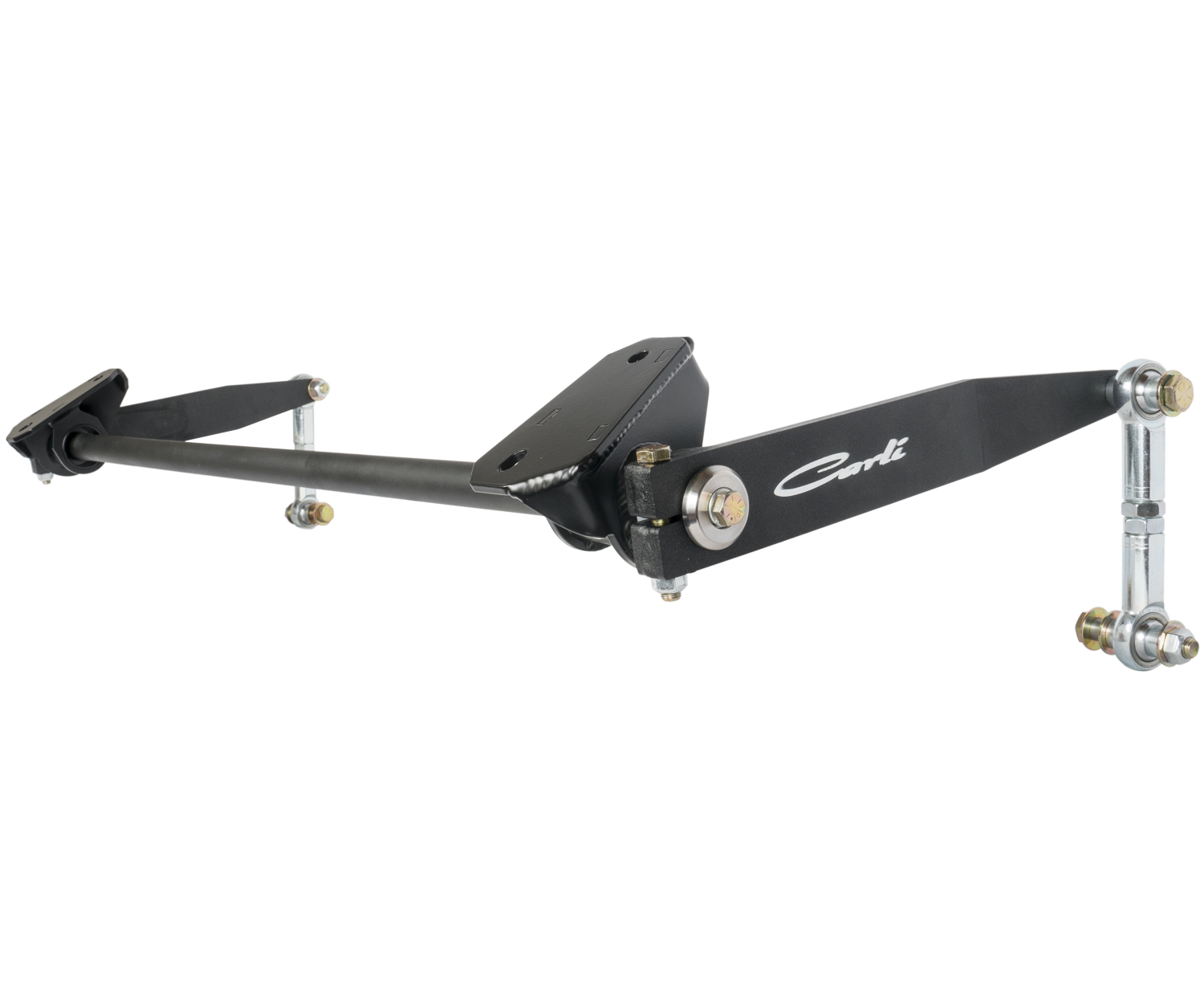

Sway Bar Options
Torsion Sway Bar
- Easily the best "bang for the buck" upgrade for ride quality
- Allows front suspension to move freely without giving up control
- Requires removal of electronic sway bar on Power Wagons
- Fitment: 2014+ 2500 4x4
- Fitment: 2013+ 3500 4x4
- Compatible with 2.5"-4" Front Lift

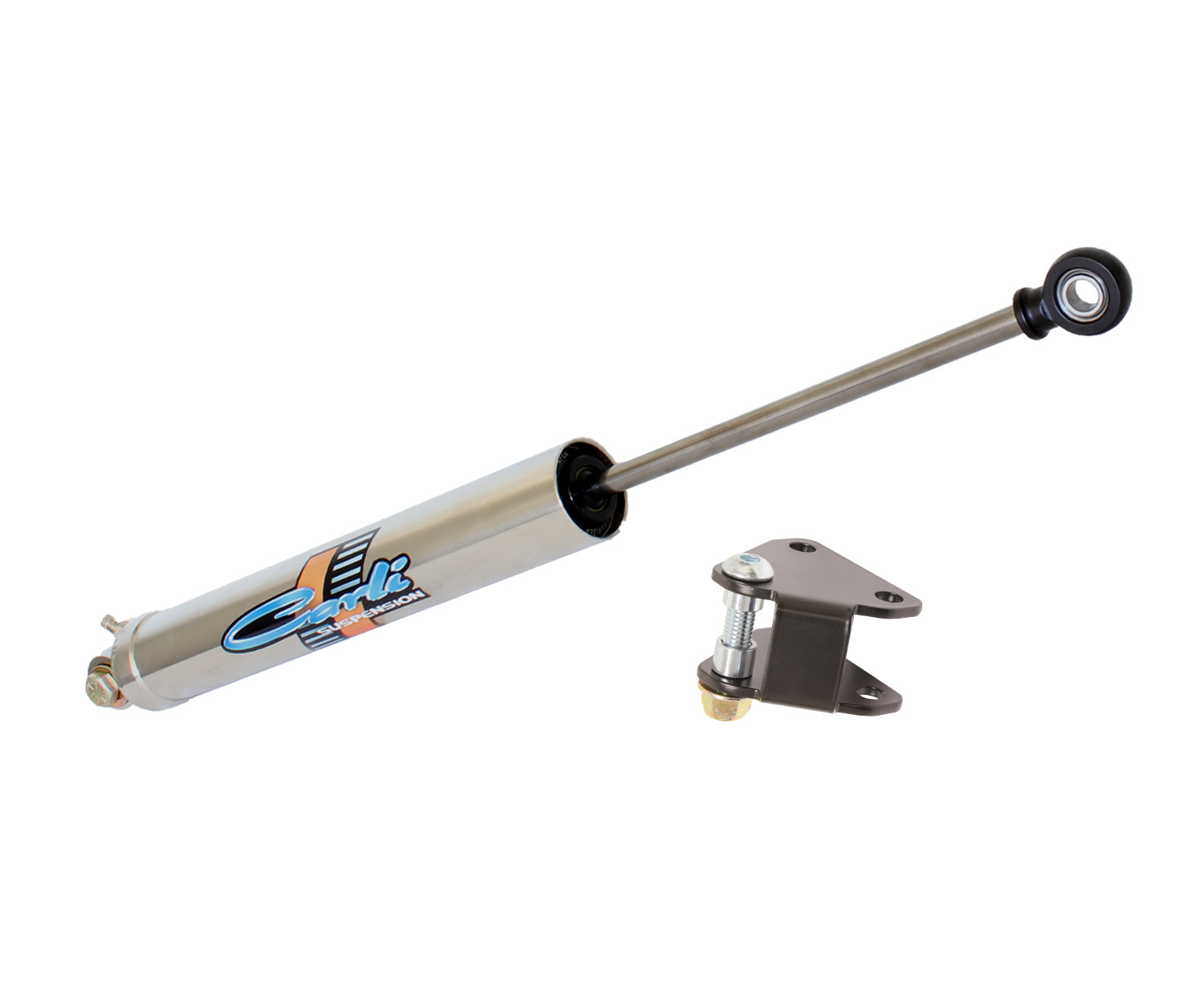

Steering Stabilizer Options
Stainless Low Mount Stabilizer, 2014+
- Direct bolt-in replacement
- Corrects left tire pull, adjustable
- Stainless Steel Shock
- Black Nitride Shaft
- Billet Red Ends with 1/2" Spherical Bearings
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

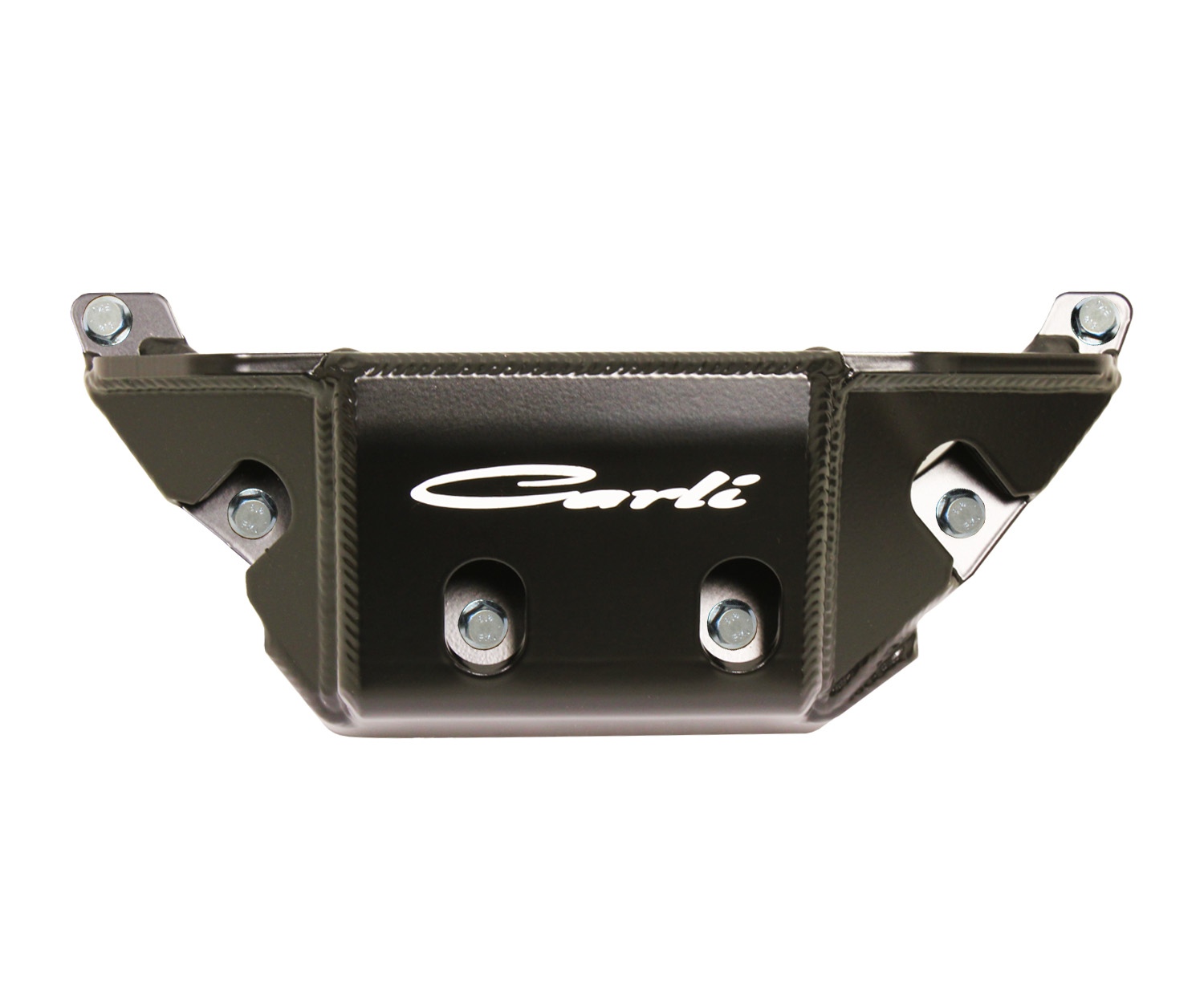

Front Differential Guard Options
Front Differential Guard
- Protection for your Ring-Gear
- Bolts On In Minutes
- 1/4" Wall Cold-Rolled Steel Construction
- Grade 8 Hardware
- Fitment: 2014+ Ram 2500, 4x4
- Fitment: 2013+ Ram 3500, 4x4
- Power Wagons may require modification to the Diff Guard or Lower Diff Housing

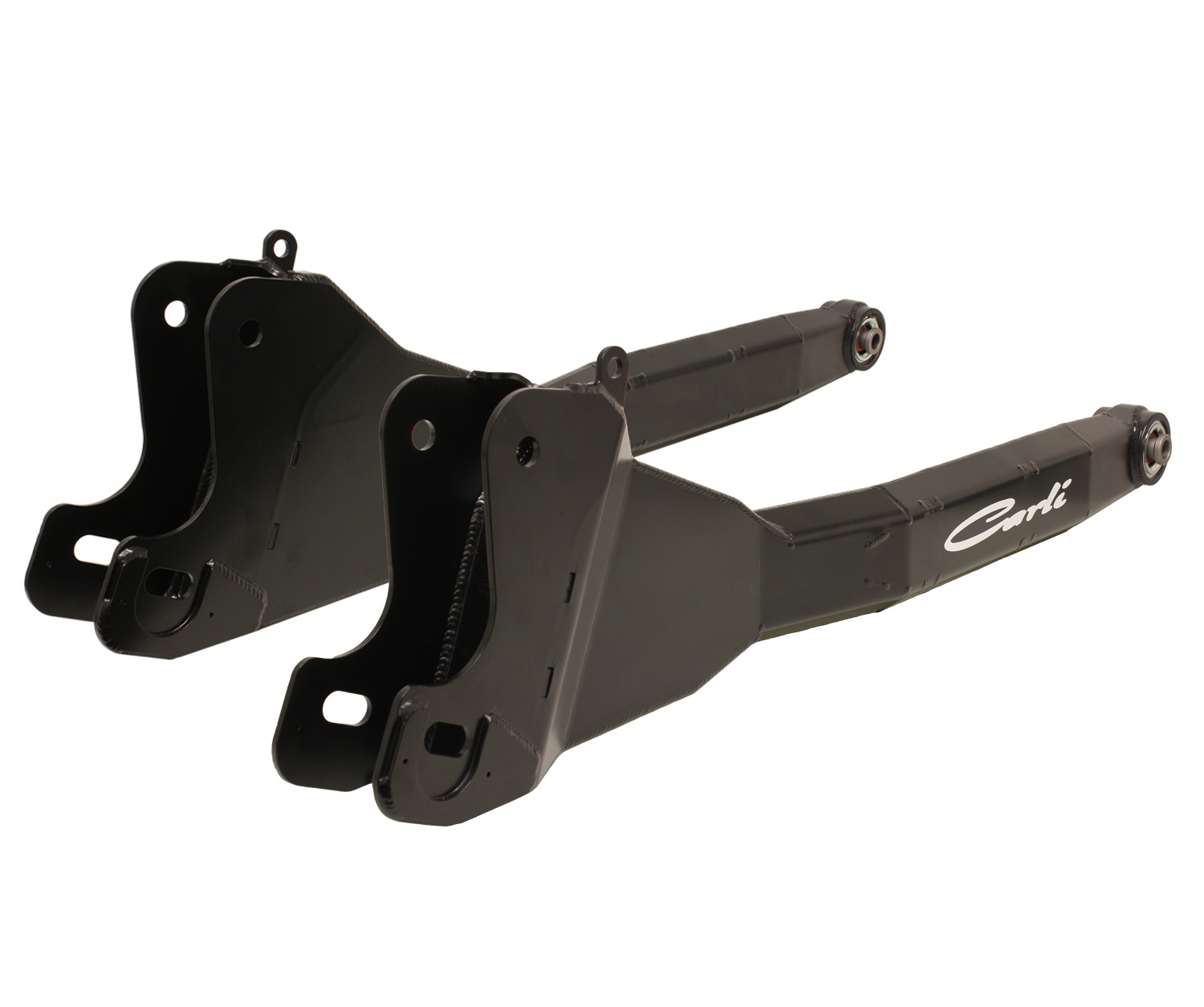

Radius Arm Options
Fabricated Radius Arms for Leveling Systems, 10" Limit Straps
- Massive Strength Upgrade vs. Stock Arm
- Improved ride quality and control
- Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
- 10" Quad Wrap Limit Straps, For 2.5" Leveling Systems
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

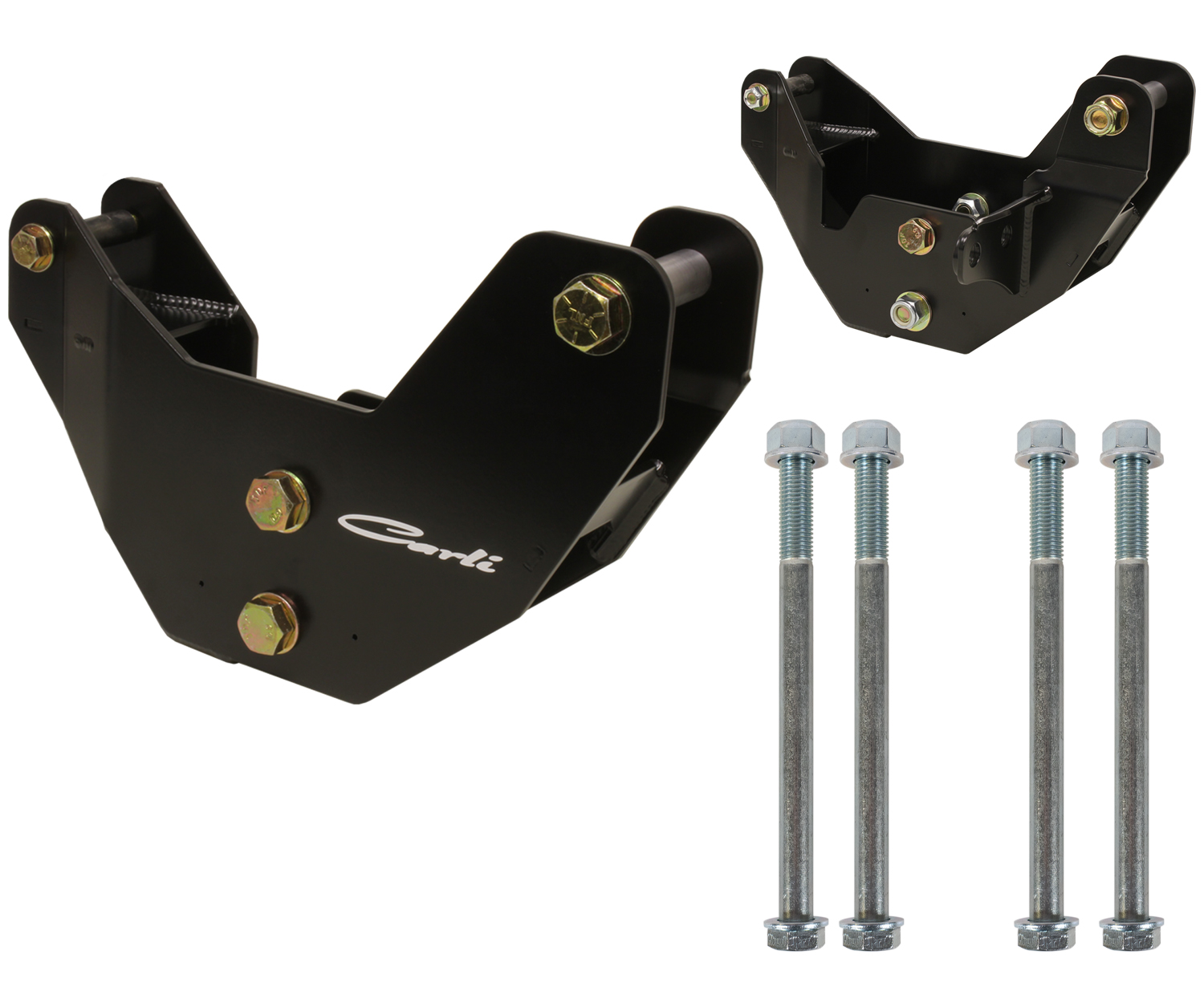

Radius Arm Drop Bracket Options
Radius Arm Drop Brackets, 2019
- Maintains critical geometries with 2.5-4" Front Lift
- Heavy-Duty Construction
- Bolt-On installation, no welding required
- Includes: CS-DCM-20-HK - 4 Extended Crossmember Bolts
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

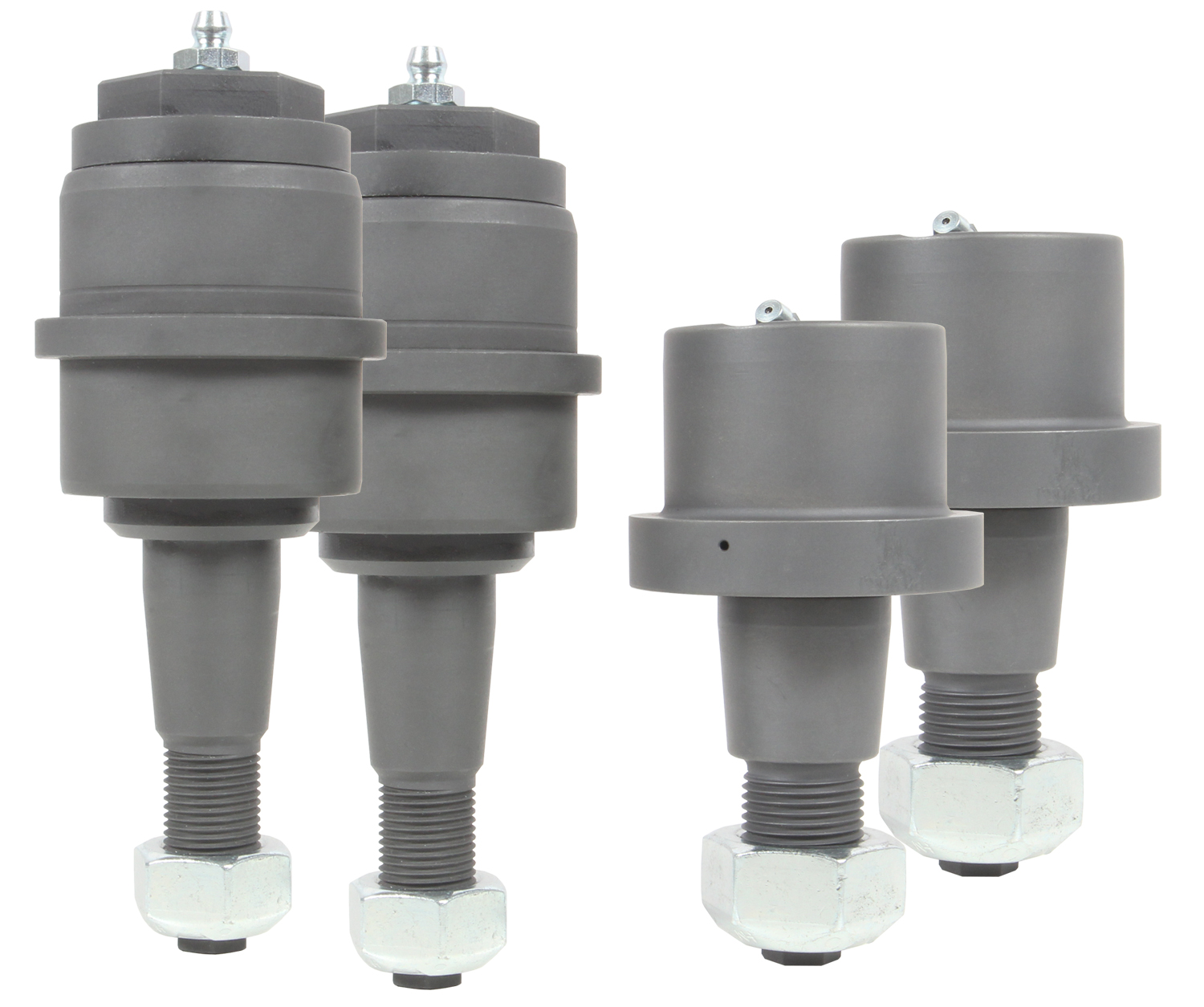

Lifetime Ball Joints
Lifetime Ball Joint Set, 2014
- Set of Upper and Lower Ball Joints
- LIFETIME Advanced-Replacement Warranty
- Copper Plated, Carburized and Dry-Lubed
- Includes a tube of Redline CV2 Grease
- Fitment: 2013+ Ram 3500 4x4
- Fitment: 2014+ Ram 2500 4x4
