Air Lift 2014+ 4WD Ram 2500 LoadLifter 5000 Ultimate With Internal Jounce Bumper

$474.65
MSRP: $654.96
Your Savings: $180.31 (27.53%)
SKU: 88289
Qty:
Eligible for FREE Shipping

Air Lift 2014+ 4WD Ram 2500 LoadLifter 5000 Ultimate With Internal Jounce Bumper

Air Lift 8Lug Free Shipping

LoadLifter 5000 kits are Air Lift’s heaviest-rated air spring kits, specifically engineered for hauling or towing heavy loads. LoadLifter 5000 air springs are designed to fit popular vehicles like 3/4 ton and one-ton pickup trucks, motor homes, commercial trucks and other severe uses. LoadLifter 5000 air springs provide up to 5,000 pounds of leveling capacity* for support of your heaviest loads.

Tow and Haul with Safety & Comfort

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved.

Less sway: Air springs increase spring rate and vastly improve vehicle stability.

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads.

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming.

Less porpoising: Even heavy pickups which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride.

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly.

LoadLifter 5000 air springs fit easily between the frame and the axle to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to make sure that your vehicle remains level and stable. Then, deflate when riding empty.

Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable from 5 to 100 PSI.

The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware you need for installation. LoadLifter 5000 air spring kits are engineered to be installed in under 2 hours and include a fully illustrated, user-friendly instruction manual. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort.

Tow and Haul with Safety & Comfort

LoadLifter 5000 ULTIMATE works with your vehicle’s leaf springs to provide up to 5,000 lbs. of load leveling capacity* and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded.

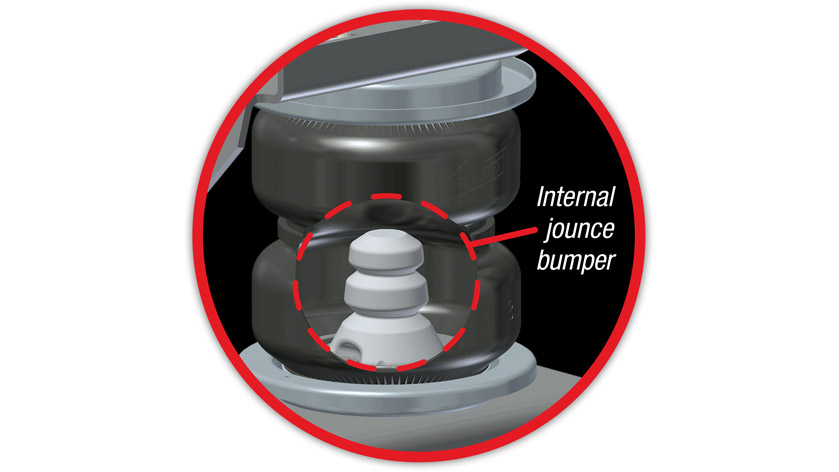

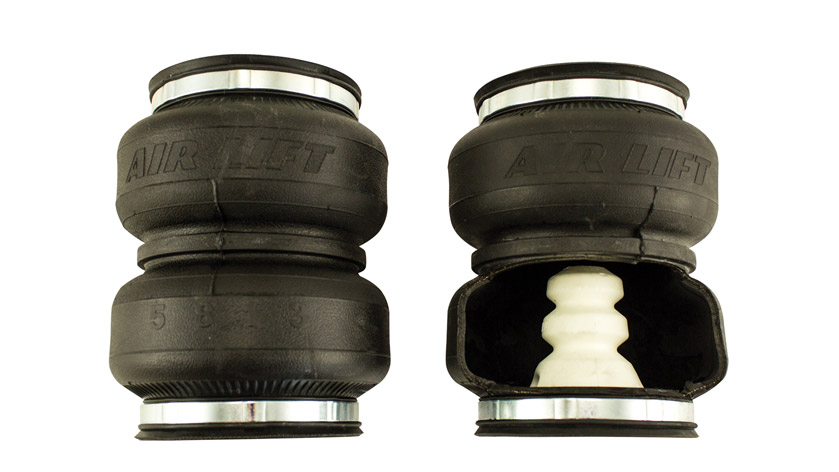

The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE!

LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs.

Includes industry-exclusive 60 Day No Questions Money Back Guarantee and the most comprehensive Lifetime Warranty in the industry – covering all kit contents including brackets, fittings and air line.

Air springs are built like a tire and are reinforced by durable,2-ply fabric for maximum strength. Exclusive upper and lower roll plates are included which protect the springs from sharp edges, such as brackets or the frame and help increase load capacity up to 10%.

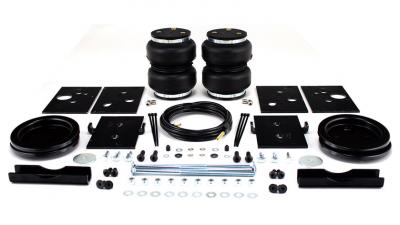

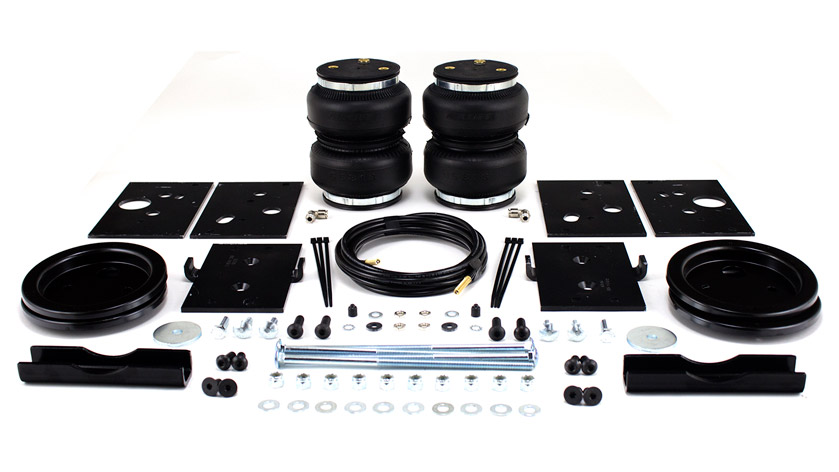

Each LoadLifter 5000 ULTIMATE kit includes:

  • 2 air springs
  • All necessary mounting brackets
  • Air lines
  • Schrader valve
  • All of the hardware needed for installation
  • A fully illustrated instruction manual.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 ULTIMATE air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

LoadLifter 5000 ULTIMATE kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.
