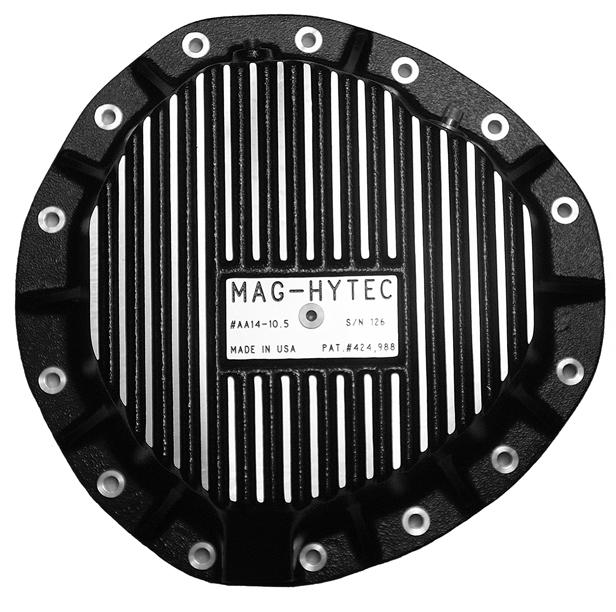

Mag-Hytec AAM 10.5 Rear Diff Cover
MAG-HYTEC covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required.
General Features:
- Magnetic drain plug and anodized aluminum dipstick with magnetic insert
- O-rings require no gaskets or sealant
- Routine lube maintenance without removing the differential cover
- 1/8 NPT temperature sender port
- 303 stainless steel hardware
- Lube level reference plug
- Finned aircraft aluminum housing
- Requires allen key wrenches (included) for installation and service
- Fits with most factory suspension systems and aftermarket anti-sway bars
Application:
- Dodge Rear 2003 to present Gas 2500 & 3500 trucks with the AAM 10.5 rear axle
- This cover is the correct cover for your 14 bolt - 10.5" differential. If your axle has two top and bottom bolts @ 11:00 & 1:00 O'clock & 7:00 & 5:00 O'clock then you have an AAM 10.5 rear axle. This axle was used in all Hemi 2500/3500/1500 Megacab/Powerwagon trucks and some 2003 Diesel trucks
Must check for Clearance

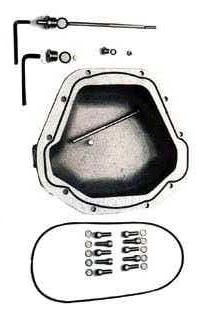

Includes:
- Bolt kit
- Drain Plug
- Dip Stick
Capacity:
- 6 Quarts
Overall height:
- 3 3/4"
