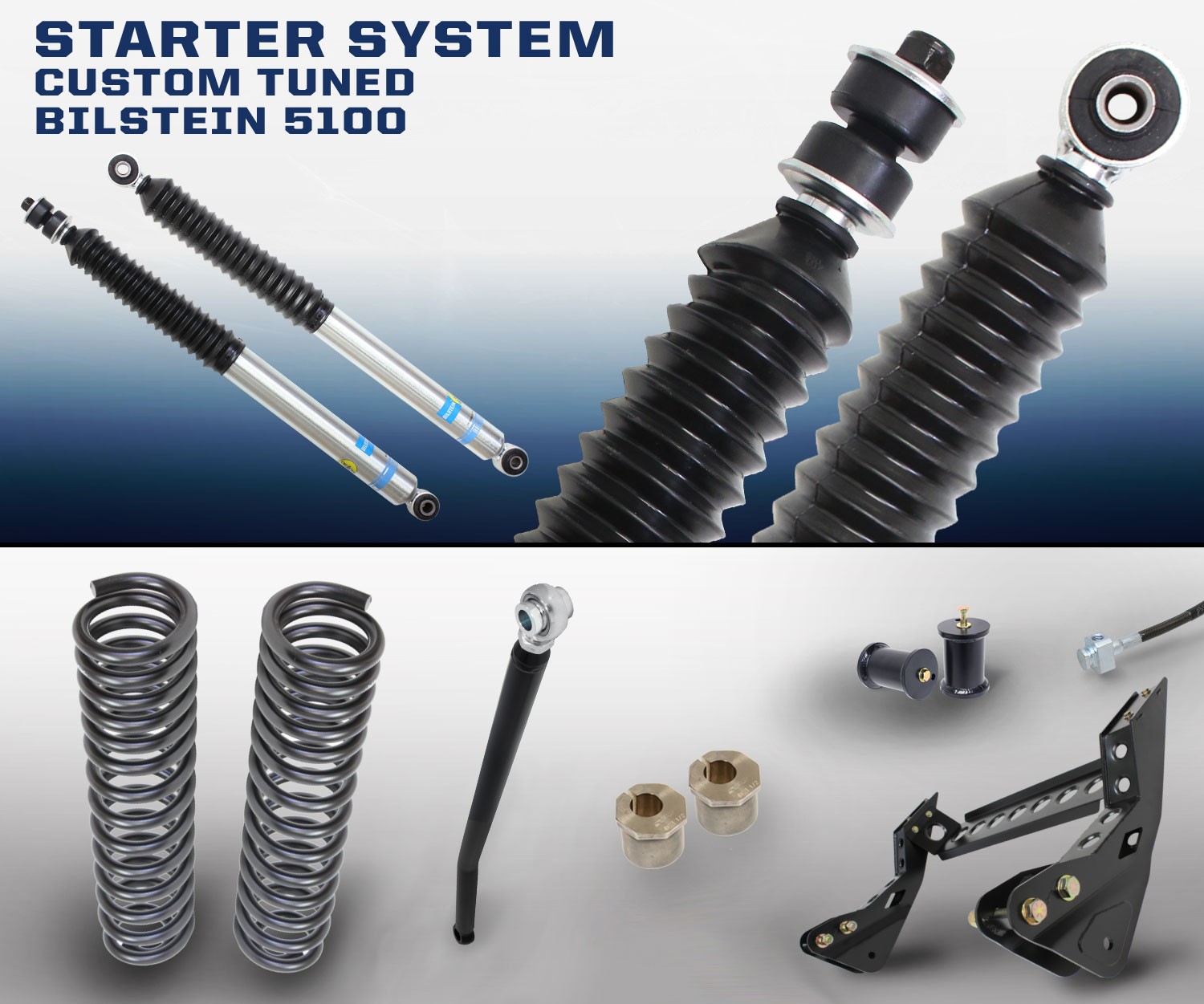

Carli 4.5" Super Duty Starter System

Ford Super Duty 4.5" Starter System

The Super Duty Starter system is designed for people who want a suspension lift without the stereotypical ride-quality degradation associated with mass-produced “lift kits”. The IFP Bilstein 5100 shocks build quality is unmatched for their price point offer a nice boost in ride quality and carry a lifetime warranty through Bilstein.

The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.

The rear is outfitted with a Progressive Add-a-Pack. The 4.5” lift, Add-a-Pack equipped systems maintain payload capacity and are designed to work with trucks equipped with the factory 3-5/8” rear block. Super Duties equipped with a 2" tall block from the factory will require the factory 3-5/8" tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

This system is considered entry level; however, it’s fully upgradeable and only requires an upgrade to one of our many signature tuned shock packages to be converted to one of the higher-end systems. This system was designed with the Progressive Add-a-Pack and should not be run with the Full Progressive Leaf Springs.

Features:

• Superior Ride Quality
• Very Controlled Off Road
• Increased Cornering Capability
• Reducing and/or Eliminating Body Roll
• Tighter street feel Driving Characteristics, Increased Suspension Response
• Steering geometry is all within OEM specs, no additional components are necessary
• Towing/hauling capacity is the same as OEM, no reduction of capability

Fitment Guide:

• CS-F45-STR-11 | 11-16 F250 / F350 4x4 (Old Part Number: CS-FORDSTARTER-11)
• CS-F45-STR-08 | 08-10 F250 / F350 4x4 (Old Part Number: CS-FORDSTARTER-08)
• CS-F45-STR-05 | 05-07 F250 / F350 4x4 (Old Part Number: CS-FORDSTARTER-05)

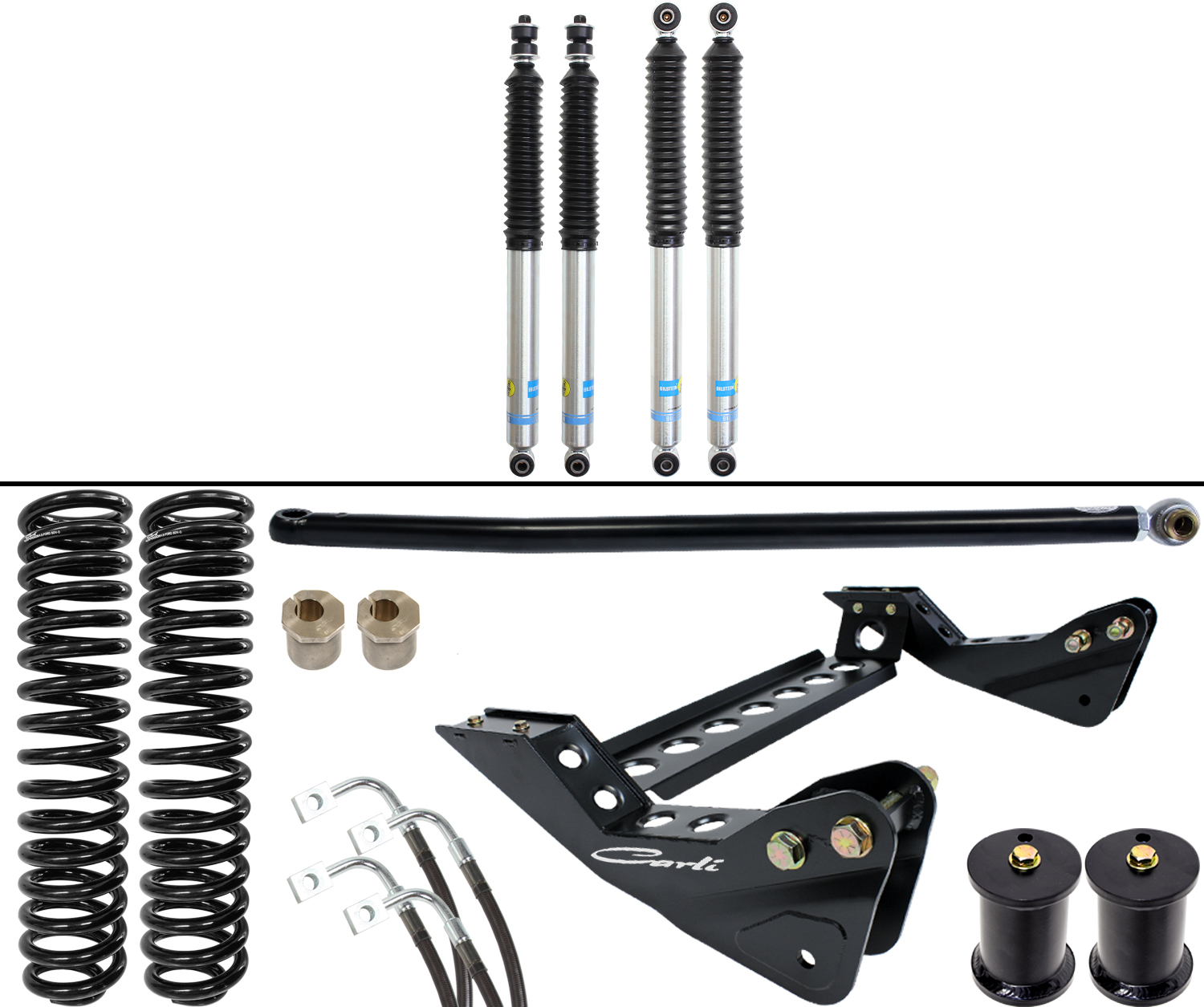

Components:

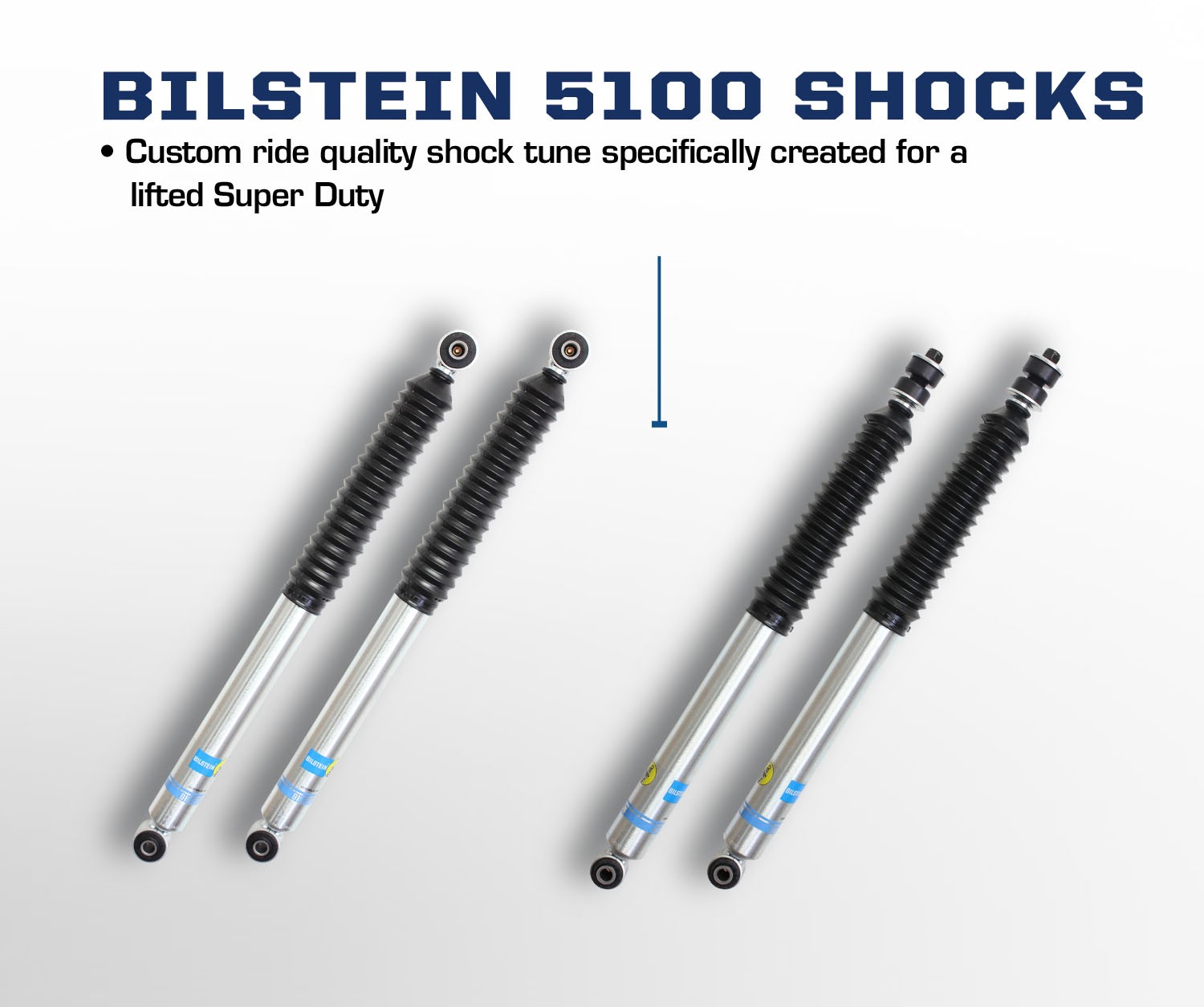

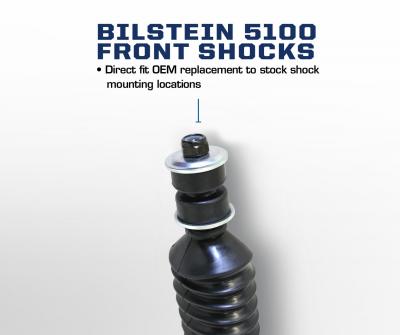

• Bilstein 5100 Series Shocks

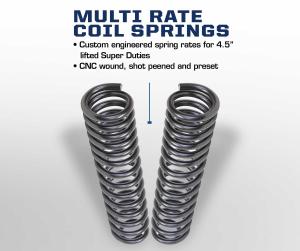

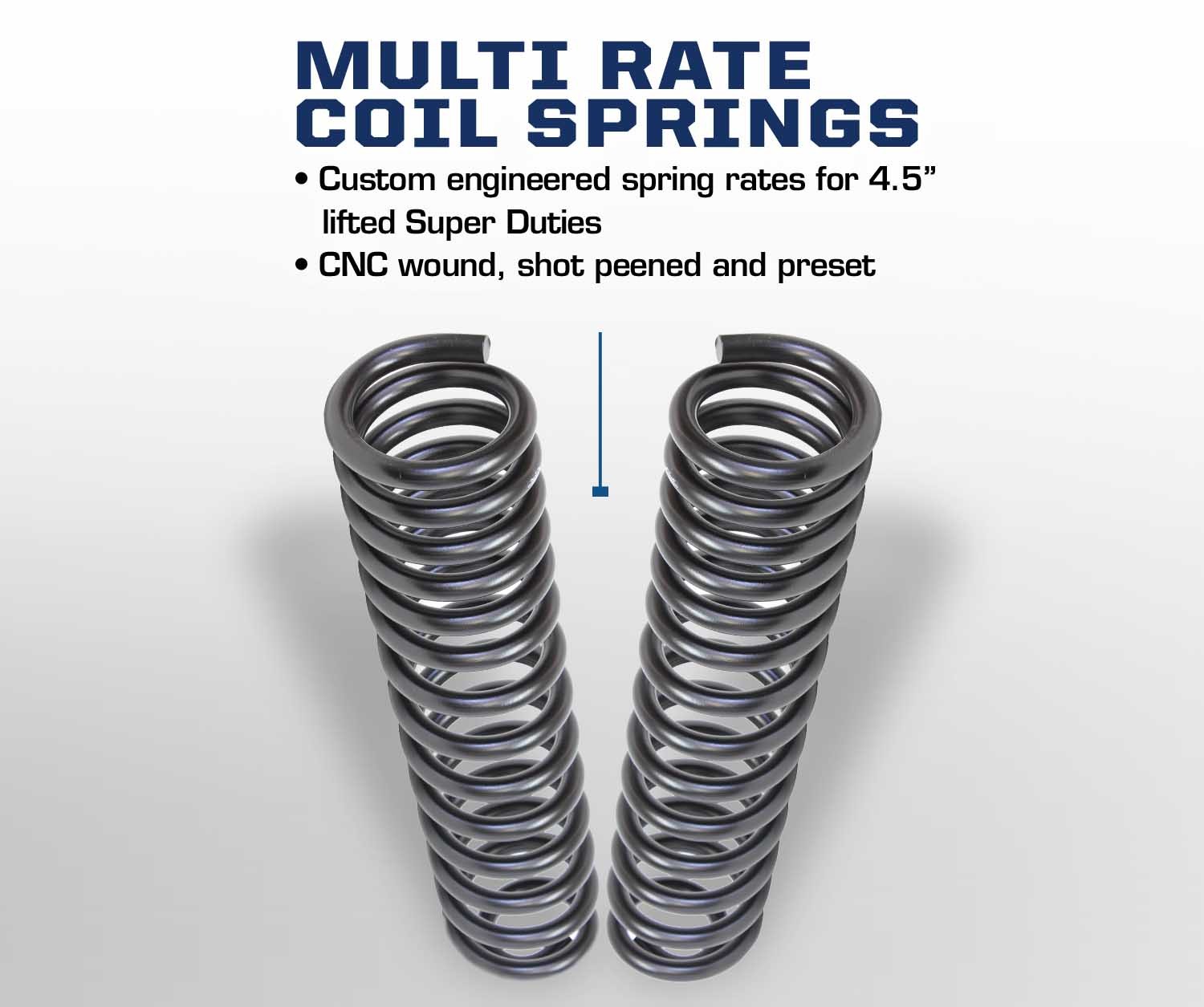

• Carli Multi-Rate Coil Springs

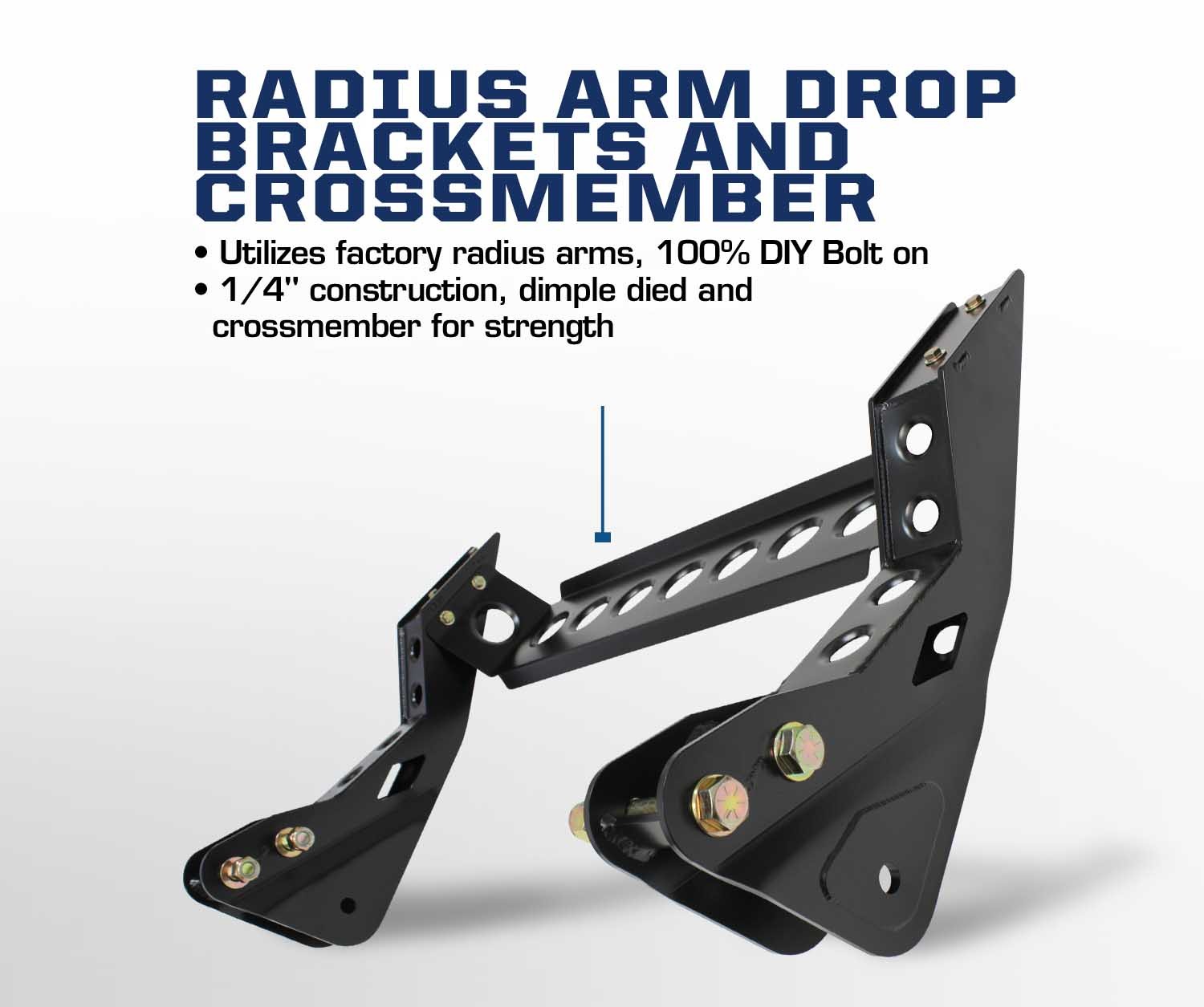

• Radius Arm Drop Bracket Kit with Dimple Die Cross Member
• Sway Bar End links

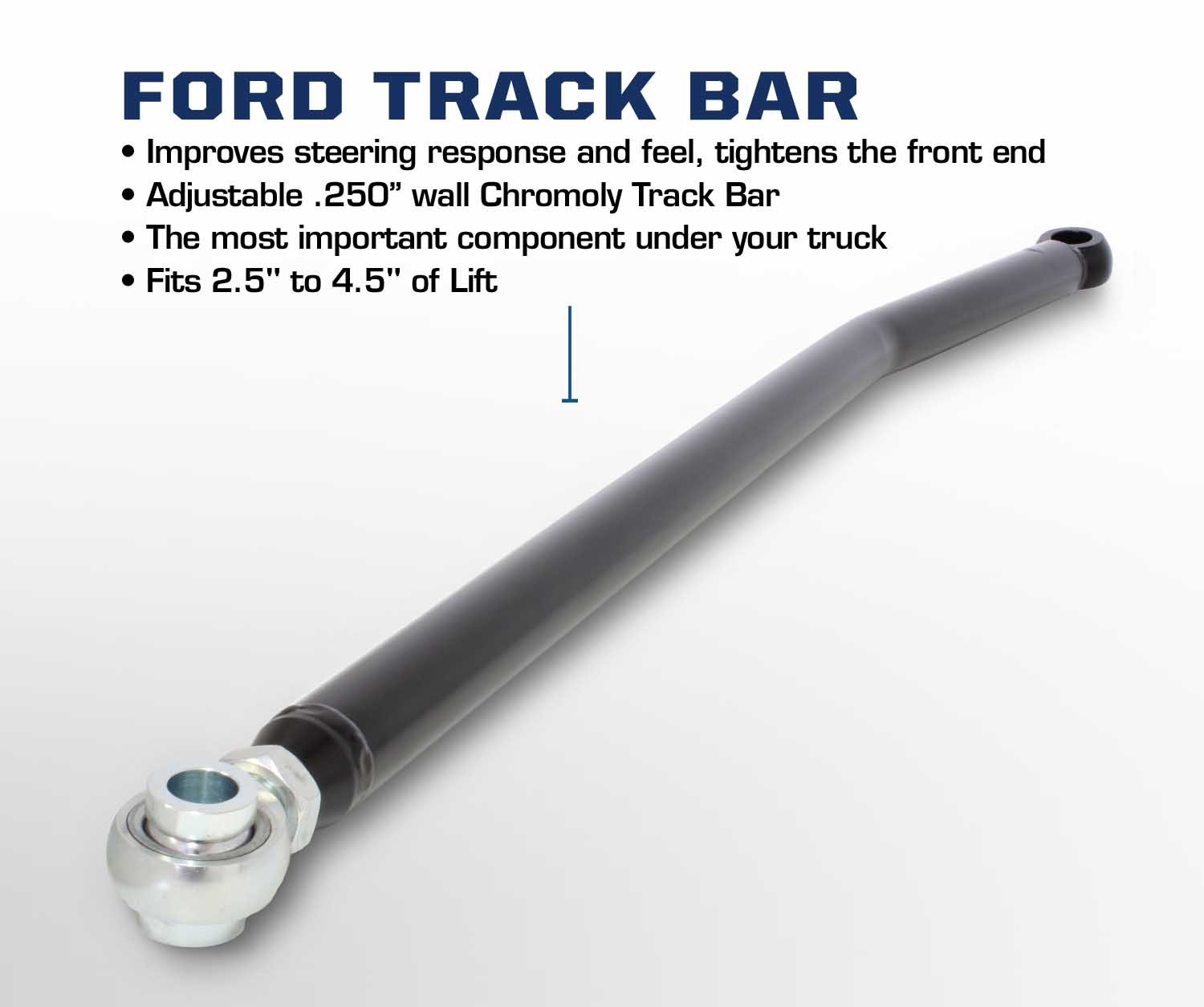

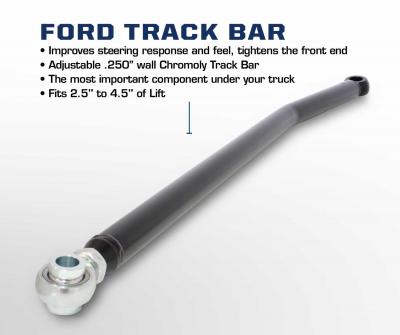

• Adjustable Track Bar

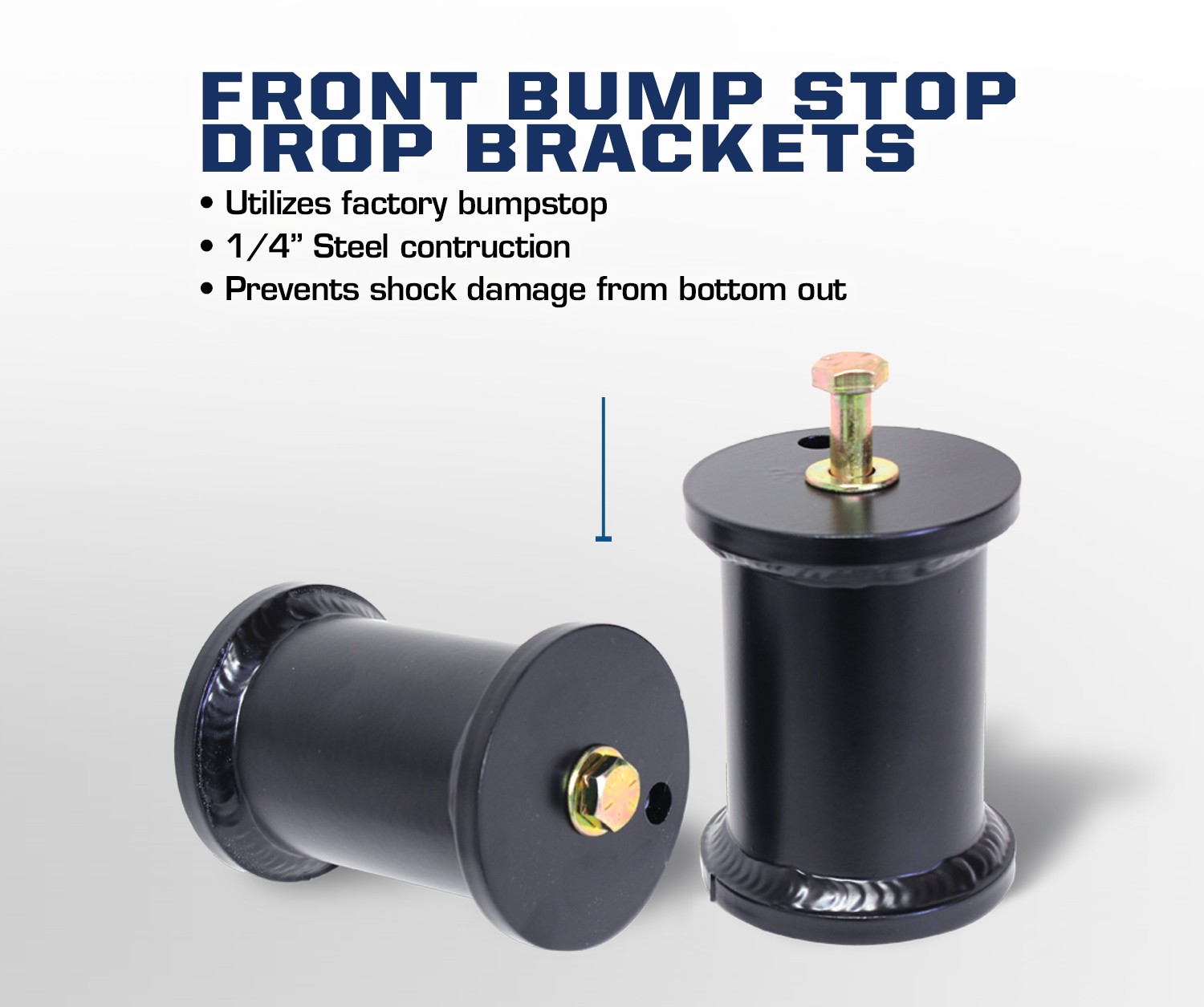

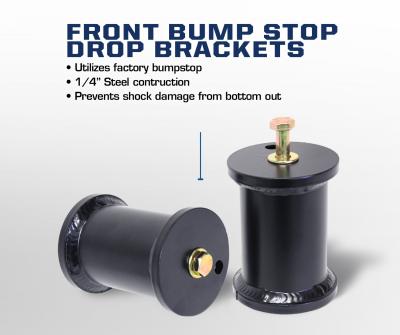

• Front Bumpstop Drops

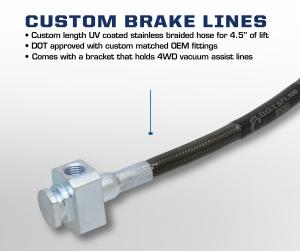

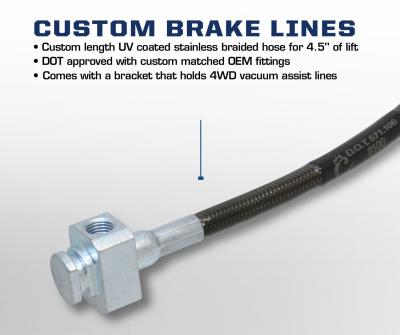

• Extended Braided Brake Lines

Altered Vehicle Characteristics:

• 4.5" of Lift on the Front
• 2.5" of Lift on the Rear*
• Vehicle is "Leveled"*
• 10.0" of Front Wheel Travel
• 12.0" of Rear Wheel Travel

System Notes:

• Rear Driveshaft must be checked for 1 piece or 2 piece units. It is recommended that 2 piece driveshafts order a carrier bearing drop, PN# CS-CARRIERDROP-F, $35
• Wheels - Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5" of Backspacing on 4.5" Lift Systems.
• Tires - 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R.
• Recommended Configuration - Carli 4.5" Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 37", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
• Add-A-Packs - Super-Duties equipped with a factory 2" Block will require the 3-5/8" Factory F350 Block [7C3Z-5598-HB, 7C3Z-5598-JB] to achieve a level stance.

Full Leaf Upgrade Notes:

Choosing the full leafs over the mini packs will offer a better street ride, further decrease wheel hop, and eliminate the need for a rear lift block altogether.

We only recommend the full leaf option on the Starter kit for customers that either don't spend much time on rough roads or those that plan to upgrade to a higher end shock package. The full leafs are a bit soft and can easilly overwhelm basic shocks like the 5100's that come in this kit.

Full Leaf Shipping Info - If you are choosing the full leaf upgrade we will need you to provide an address that accepts freight truck deliveries as the kit will ship on a pallet. Please contact us if you have any questions about shipping.

05-10 Sway Bar Options

• CS-FEL-05 OR CS-FEL-08 - Sway Bar End Links
  • Easy Bolt-On
  • Heavy Wall Material
  • Excellent Articulation
  • Rebuildable
  • Ford Extended End Link for 4.5" Suspension System

2011-2016 Sway Bar Options

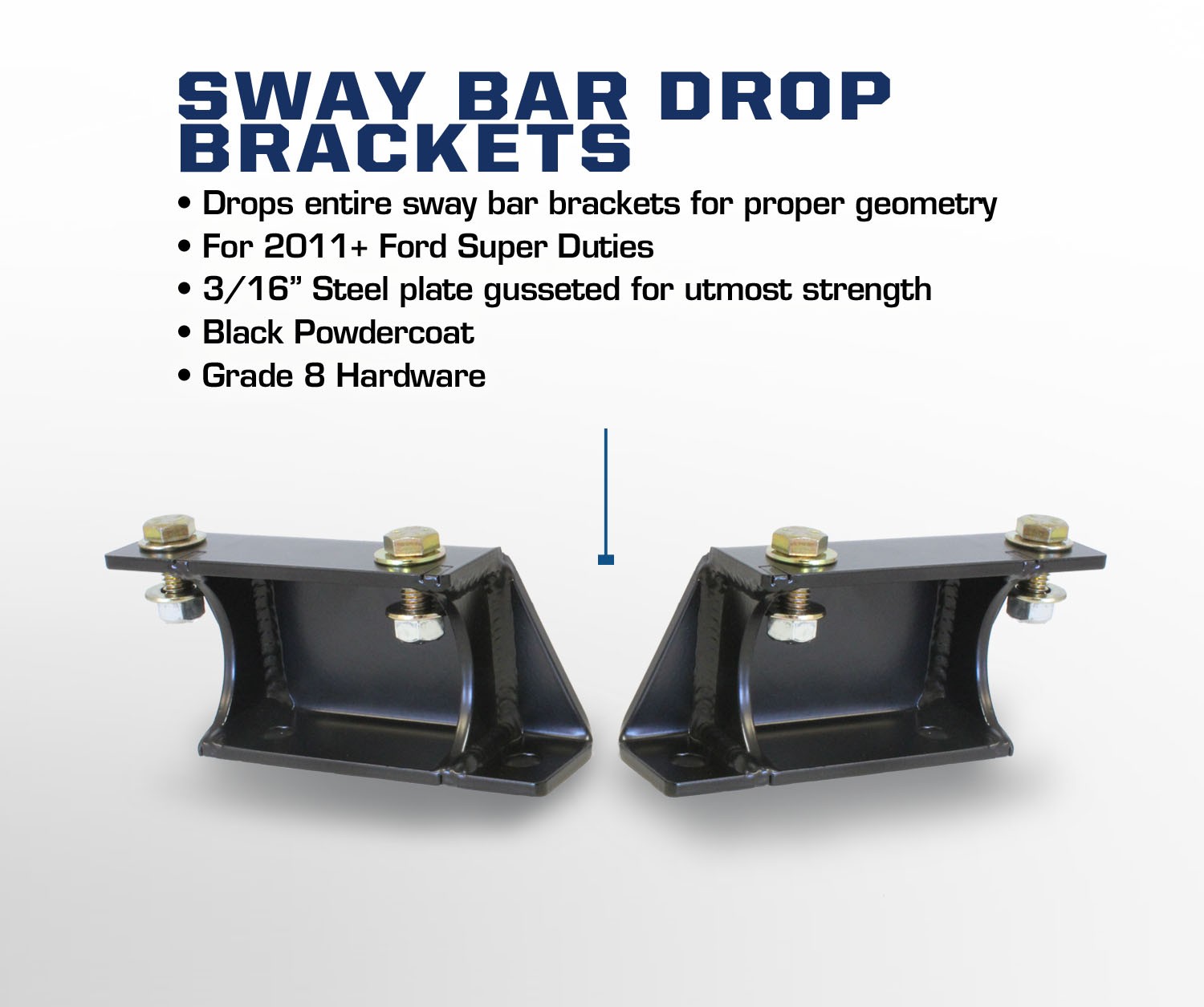

• CS-SBD - Sway Bar Drop
  • Drops entire sway bar brackets for proper geometry
  • 3/16" Steel Plate gusseted for utmost strength
  • Black Powdercoat
  • Grade 8 Hardware

Rear Lift Options

Although it is possible to order this kit with neither of these options, it is HIGHLY recommended that you do choose one of these options in order for this kit to perform as expected.

• CS-FPAP-(05, 08, 11) - Progressive Add-a-Pack
  • Built in the U.S.A. By Deaver Leaf Spring
  • Smooth progressive design
  • Supplied with U-bolts and hardware
  • Provides 2.0" of lift
  • The O.E.M. load capacity is still maintained while improved ride is achieved
