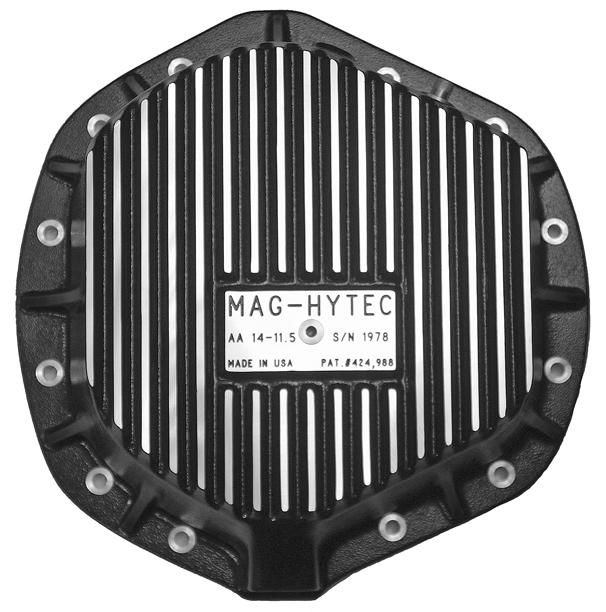

Mag-Hytec AAM 11.5 Diff Cover
MAG-HYTEC covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required.
General Features:
- Magnetic drain plug and anodized aluminum dipstick with magnetic insert
- O-rings require no gaskets or sealant
- Routine lube maintenance without removing the differential cover
- 1/8 NPT temperature sender port
- 303 stainless steel hardware
- Lube level reference plug
- Finned aircraft aluminum housing
- Requires allen key wrenches (included) for installation and service
- Fits with most factory suspension systems and aftermarket anti-sway bars
Application:
Dodge Rear 2003 to present H.O. Diesel 2500 & 3500 trucks with the AAM 11.5 rear axle
This cover is the correct cover for your 14 bolt - 11.5" differential, even though there are only 12 bolt holes. The top and bottom bolts have been removed for drain plug and temperature sending unit hole.
Bolt Pattern has one top and one bottom bolt @ 12:00 O'clock & 6:00 O'clock for quick identification.
If your axle has two top and bottom bolts @ 11:00 & 1:00 O'clock & 7:00 & 5:00 O'clock then you have an AAM 10.5 rear axle. This axle was used in all Hemi 2500/3500/1500 Megacab/Powerwagon trucks and some 2003 Diesel trucks

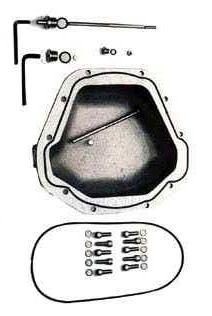

Includes:
- Bolt kit
- Drain Plug
- Dip Stick
Capacity:
- 8 Quarts
Overall height:
- 3 5/8"
