Pure Performance Dodge 6" Triple Threat System
System Benefits:
- Complete Bolt In System
- Smooth on Highway Ride
- Improved Off-Road Performance
- Sport Tuned Triple Rate Front Coils
- 3 Way Adjustable Telescoping Radius Arms
- Radius Arm Drop Bracket Kit
- Front and Rear Pro Sway Bar Links
- Track Bar Drop Bracket and Drop Pitman Arm Steering Corrections
- Double Adjustable Rear Track Bar
- Easily Fits Up to 38x13.5” Tall Tires or 40”x13.5” Tall Tires w/ Aftermarket Front Bumper
- Easily Upgradeable to Any Other System

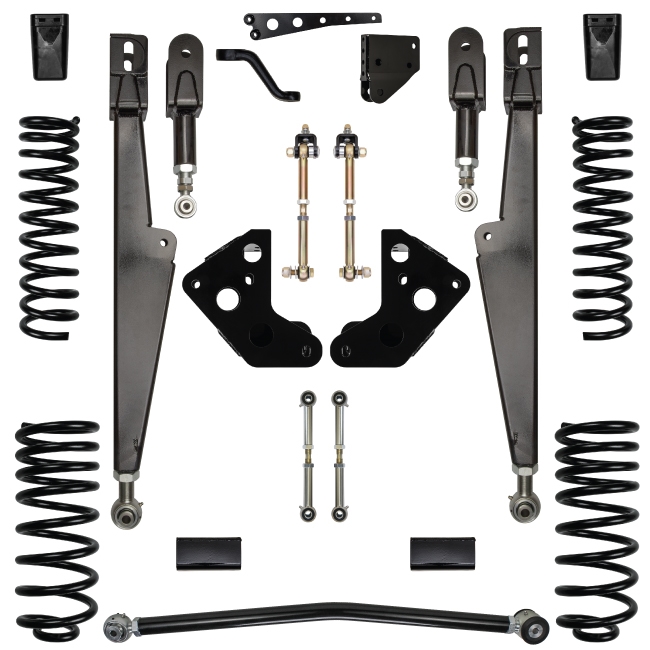

System Includes:
- (1) Radius Arm Drop Bracket Kit
- (2) Fully Boxed 3 Way Adjustable Telescoping Radius Arms made from ¼” Thick Laser Cut Steel w/ 1 3/8” Shank Prodigy Joints
- (1) Track Bar Relocation Kit
- (1) Forged Drop Pitman Arm
- (2) Adjustable, Serviceable, Rebuildable Front Pro Sway Bar Link Assemblies
- (4) Sport Tuned Triple Rate Front and Rear Coils
- (1) Double Adjustable Rear Track Bar made from 1.5” Solid Alloy Steel
- (2) Extended Front Bump Stops
- (2) Extended Rear Bump Stops
Applications:
- R2TT6004 | 2014+ Ram 2500 4WD Diesel Trucks
Notes:
- Provides a Nice Level Stance. Approximate 6.0” up Front and 3.5” in the Rear
- Suspension Tuned for 17”/18” Tires and Wheels with 40-45 Psi in the Front Tires and 30-40 Psi in the Rear Tires w/ No Payload. All Other Wheel and Tire Combinations Should Notify us Prior to Order for Approximate Shock Tune for Your Specific Application
- Recommend Getting Front Drive Shaft Lengthened 2.0”
- Welding of the Crush Sleeves in the Frame Highly Recommended
- Welding of the Track Bar Bracket Cross Brace is Required
- Requires 000 Grade Grease for Servicing of Joints
