8LUG Ram HD 3.0" Suspension Package
We decided to put together a nice suspension package at a great price that included all of the popular items that we've used to lift these trucks. This all inclusive package includes everything needed to lift the front of these trucks approximately 3" up front and 1" in the rear.
Starting off with a set of Pure Performance 3" progressive rate coils springs we have added all of the components to do it "right". The adjustable track bar re-centers the front axle and gives a far tighter steering feel than the stock unit. The Pro Flex control arms are adjustbable to move the axle forward to help with tire clearance and like the track bar are quite a bit stronger than the factory arms. They also have much beefier and tighter joints that are serviceable and rebuildable. This arm package includes new replacement hardware for the upper control arms at the frame connection. We also include a year appropriate set of lower cam bolts as many times the original hardware is rusted and needs to be cut out of the truck.
The stock sway bar links are replaced with longer Pure Performance adjustable sway bar links that use chromoly joint bodies with thermoelastomer inserts for quiet operation. Rear lift is provided by a set of Synergy 1" rear lift shackles which are an easy install and your truck will keep its factory load capacity. These can be upgraded to a set of Carli mini packs which will give you both lift as well as some improved ride quality in the rear.
We even include a tube of the 000 Grade Grease that Pure Performance recommnends for the joints in the track bar, control arms, and sway bar links!

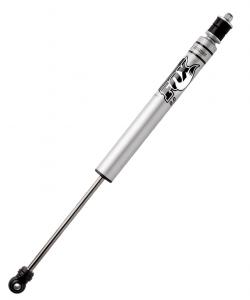

A set of Bilstein 5100 shock absorbers are standard with this package and can be upgraded to Fox 2.0's using the selections above.

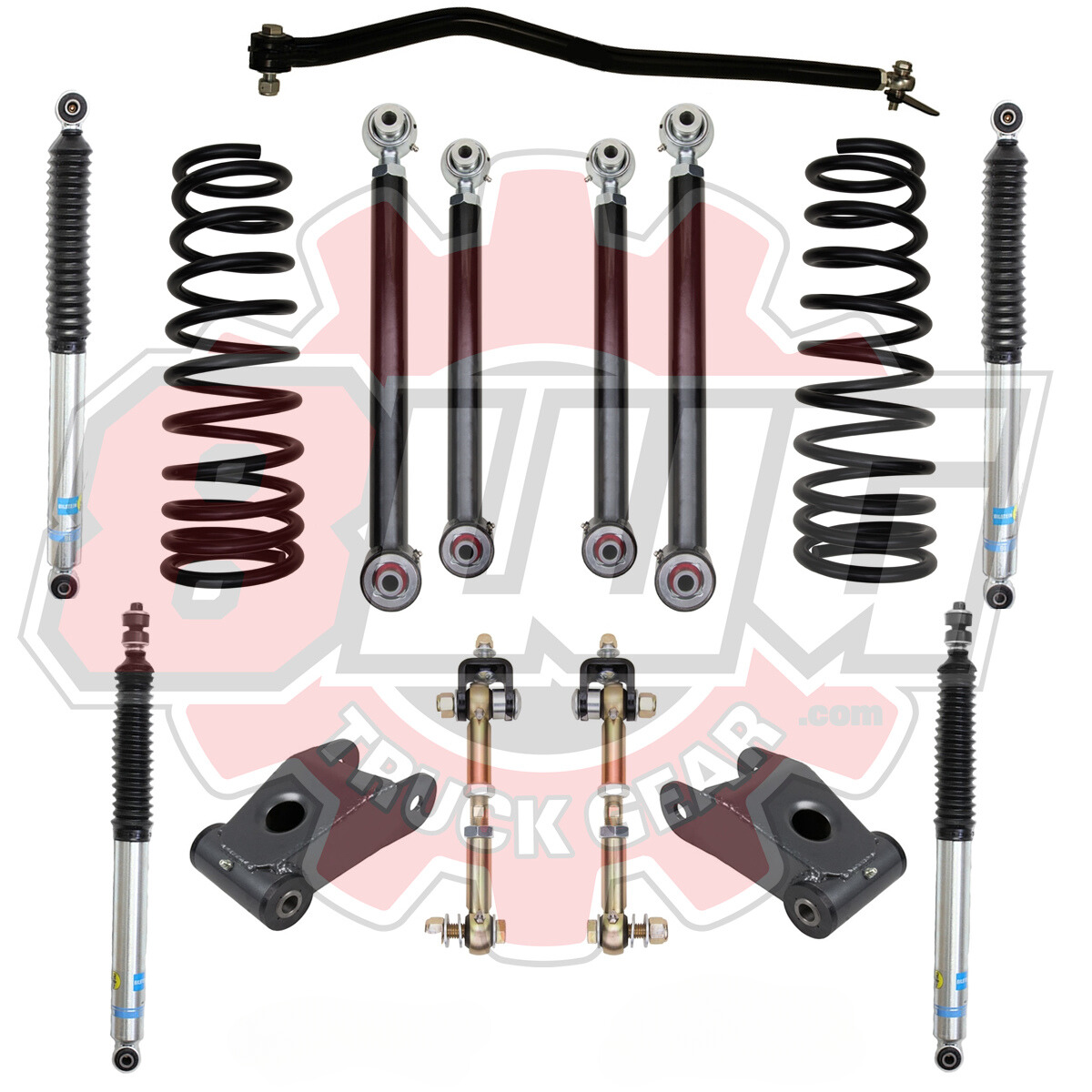

- (1) Pair Pure Performance 3.0" Progressive coils
- (1) Pure Performance Track Bar
- (2) Pure Performance Ram 3-4.5 Inch Pro Sway Bar Links
- (4) Pure Performance 03-12 Ram Pro Flex Control Arms
- (2) Synergy 1" Rear Lift Shackles
- (1) Mopar Lower Cam Bolt Set
- (1) Bilstein 0-3" Lift Shock Package OR (1) Fox 0-3" Lift Shock Package
- (1) 000 Grade Grease Tube
- 2003 - 2009 Ram 2500/3500 Diesel 4WD
- 2010 - 2012 Ram 2500/3500 Diesel 4WD
- Will fit 2013 Ram 2500 Diesel 4WD (Won't fit 2013 3500's)
