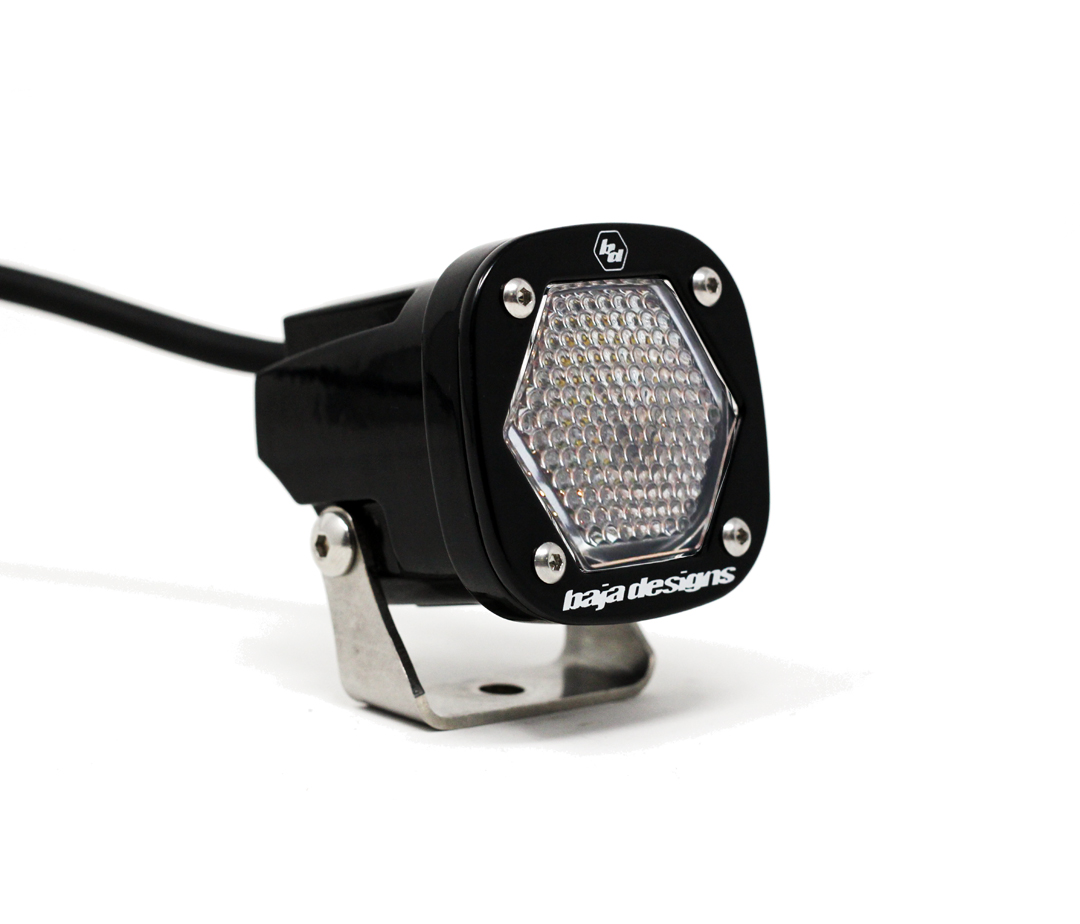

Baja Designs S1 Series LED Lights

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1" length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations!

Features:

• Satisfaction Guarantee – 30 Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 2,375 Utilizing 1 LED
• Wattage/Amps: 20W / 1.45A
• Dimensions: 2.1" x 2.1" x 2.1"
• Weight: 0.4 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Exceeds MIL-STD810G requirements:

• Low Temperature Test
• High Temperature Test
• Temperature & Humidity Test
• Thermal Shock Cycling Test
• Dust Test
• Random Vibration Test
• Mechanical Shock Test
• Low Pressure Test
• Drip Box Water Test

Includes:

• S1 LED Light
• Mounting Bracket

Part Numbers

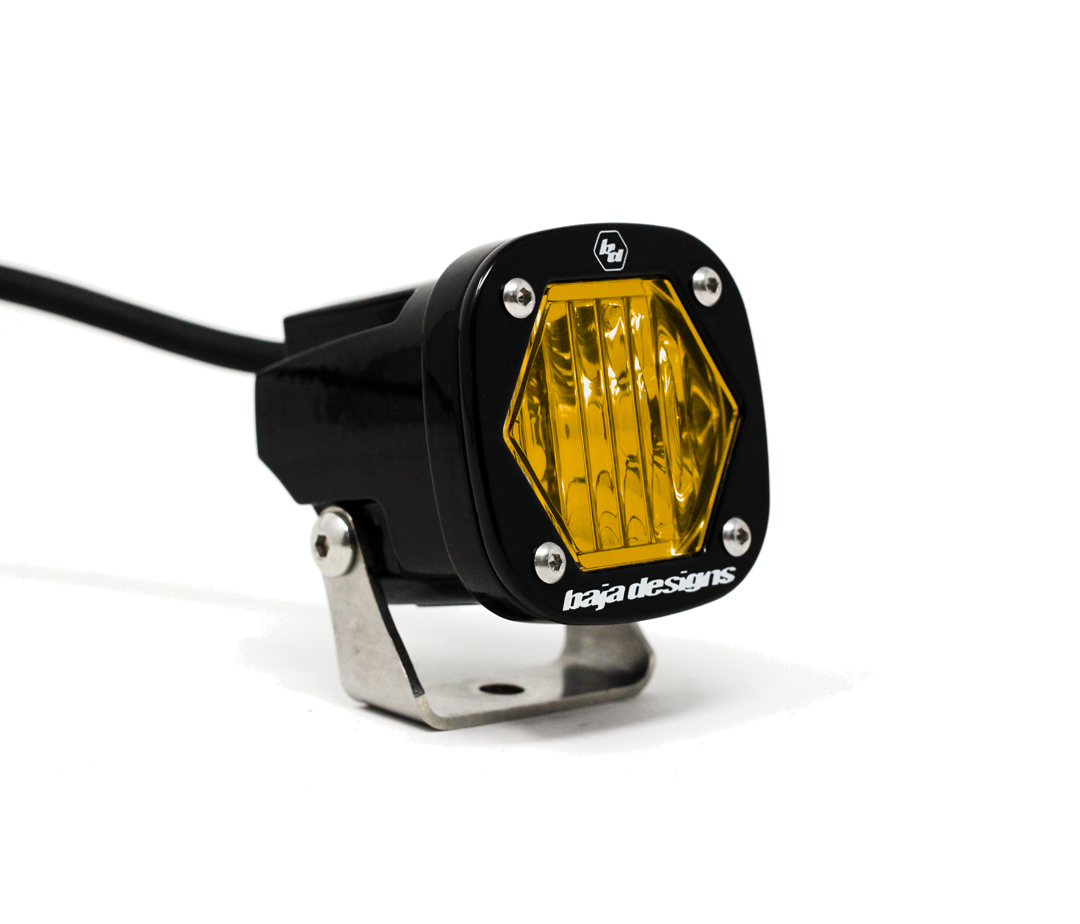

• 380015 | Single S1, Amber Wide Cornering LED

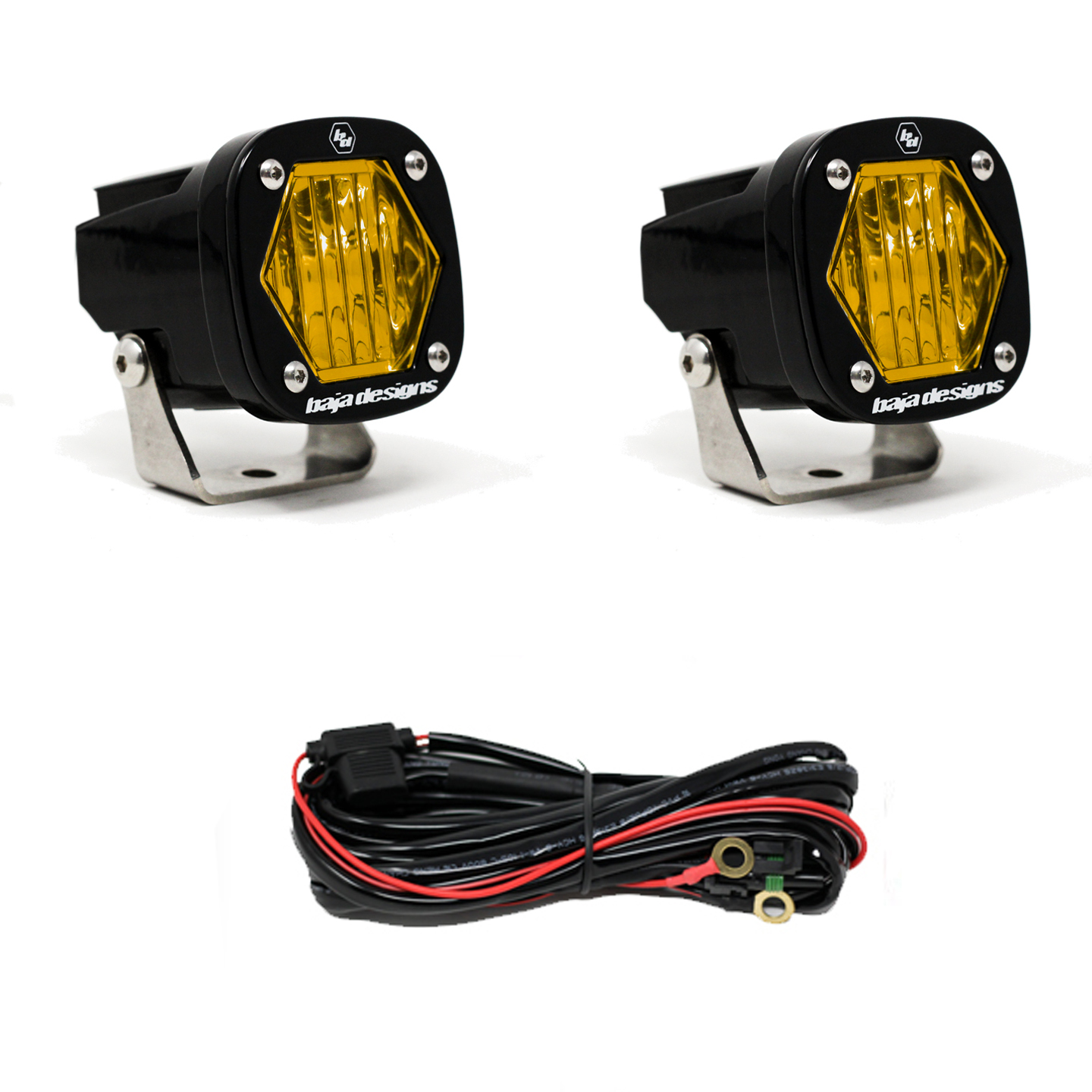

• 387815 | Pair S1, Amber Wide Cornering LEDs

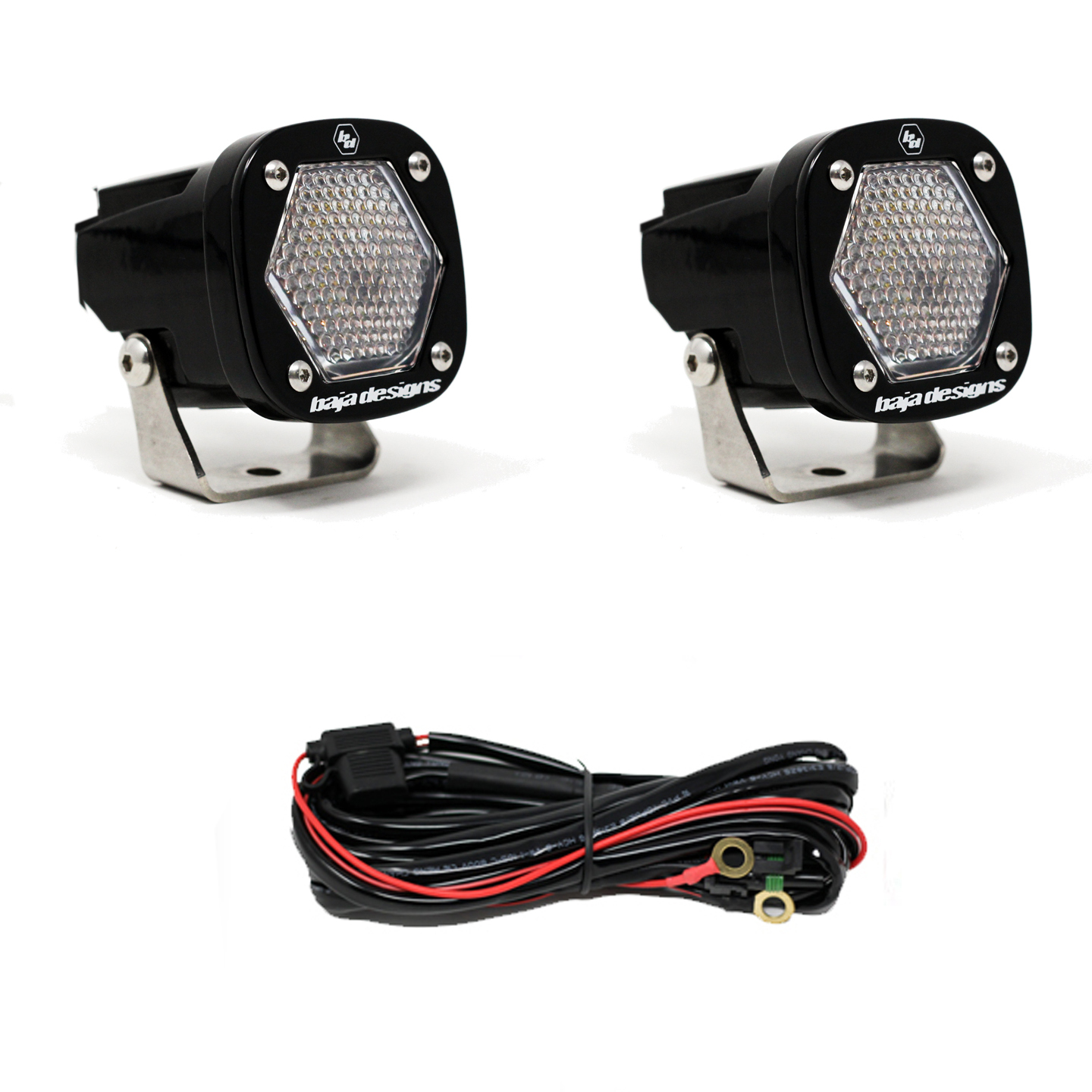

• 380006 | Single S1, Pair Work/Scene LED
• 387806 | Pair S1, Pair Work/Scene LED

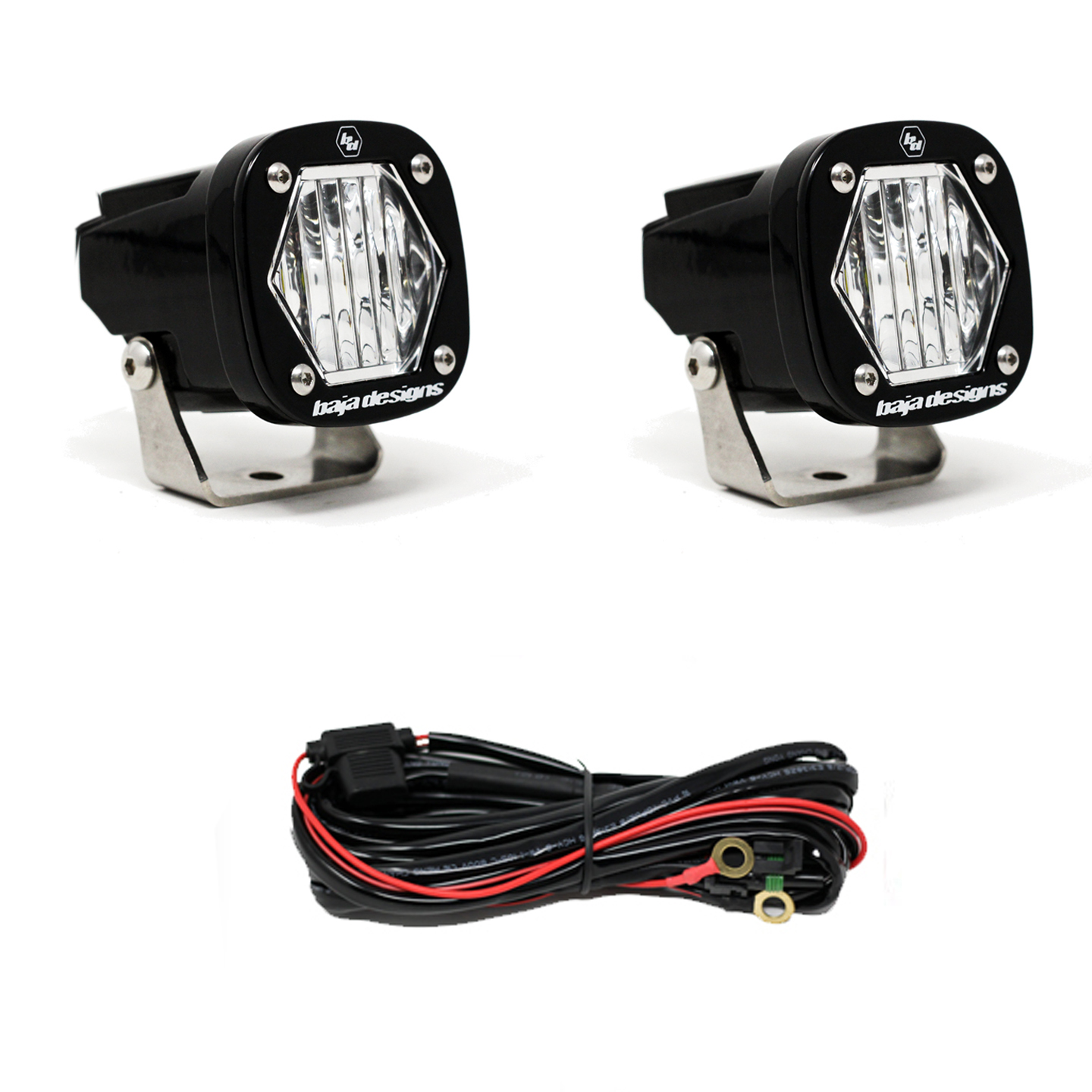

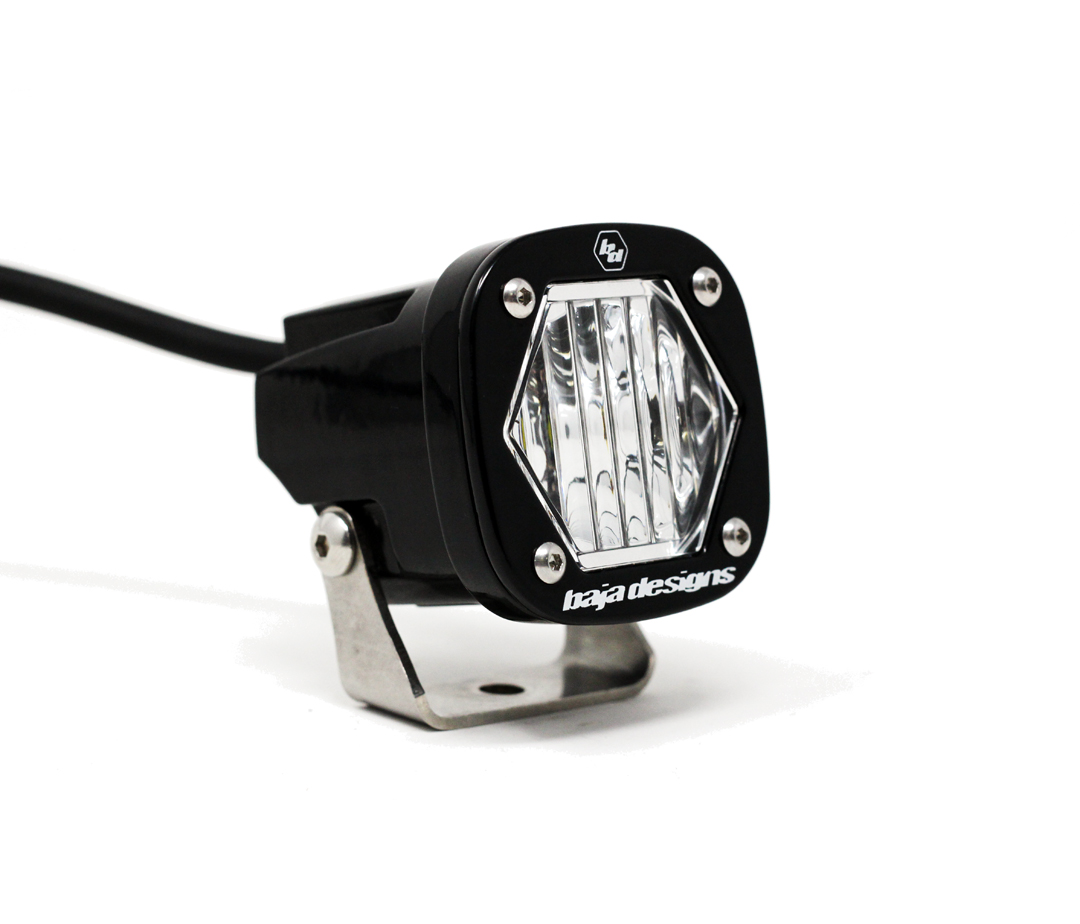

• 380005 | Single S1, Wide Cornering LED
• 387805 | Pair S1, Wide Cornering LED

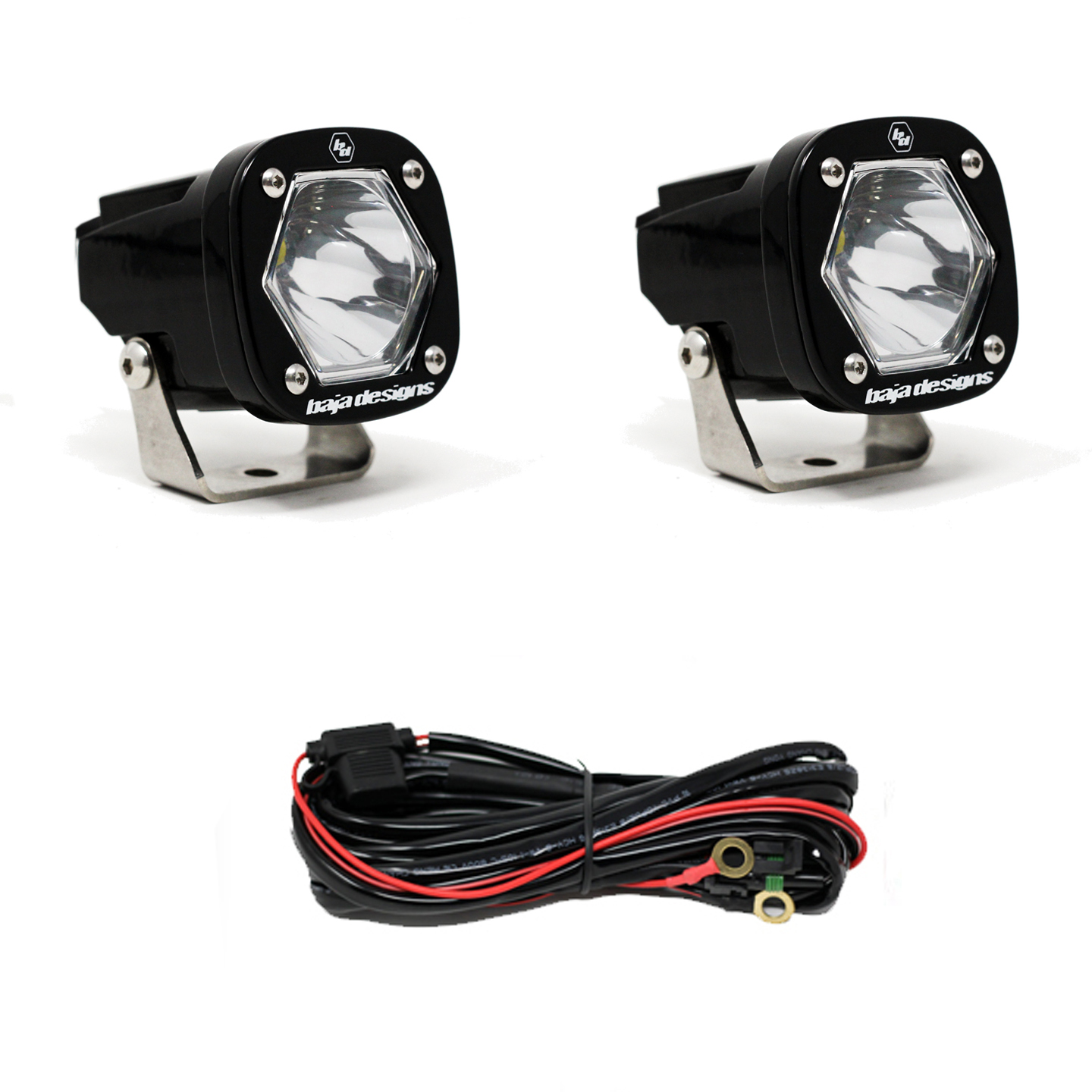

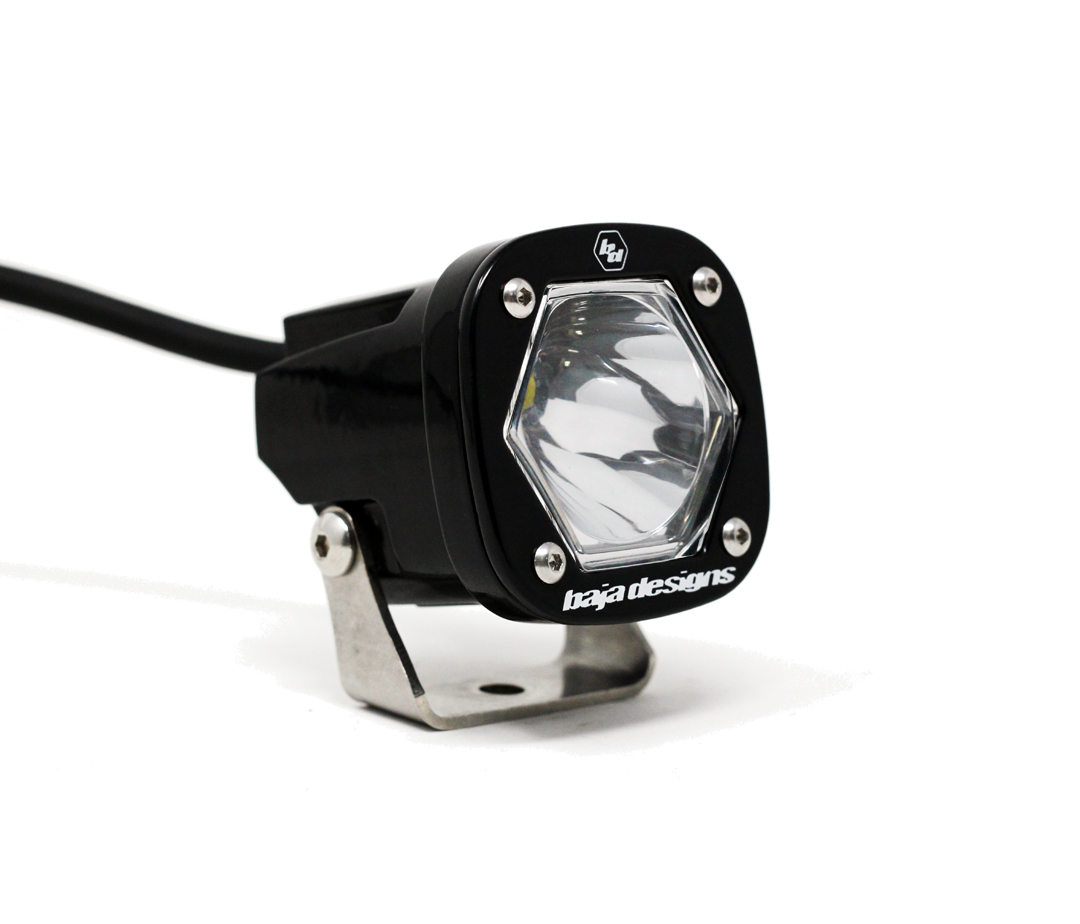

• 380001 | Single S1, Spot LED
• 387801 | Pair S1, Spot LED

Patterns:

• Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

• Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

• Work/Scene: Excellent work light or “scene light” with an extremely smooth circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

These zones have been designed by Baja Designs: The Scientists of Lighting.

Zone 1 - Dust/Fog: This zone illuminates the area directly in front of the vehicle.  Mounting these lights low on the bumper eliminates glare from dust and fog.

Zone 2 - Cornering: This zone provides cornering light which is necessary to drive comfortably at speed.  By toeing these lights out 10°-15°a smooth field of light is achieved, eliminating the feeling of tunnel vision.

Zone 3 - Driving Combo: This zone is your primary driving light.  These lights are mounted in the middle of the front bumper to avoid glare off of the hood or from dust and fog in front of the vehicle.

Zone 4 - Spot: This zone is your first level of long distance lighting. Lights intended for this zone will give you the distance needed to travel at speed.  Combined with zone two lighting, a smooth transition is achieved creating less stress on your eyes.

Zone 5 - Racer Edition Spot: This zone is necessary for triple digit speeds or wanting to see miles down the road. This is the only forward projection pattern we recommend mounting along your roofline.

Zone 6 - Dome Lighting: This zone is used for wheel well lighting.  This light is perfect for truck, jeep, buggy and UTV applications.

Zone 7 - Flood: Excellent work light or “scene light” with an extremely smooth 60° pattern.  This pattern is not suitable for forward projection applications.

Zone 8 - Backup Lighting: This zone illuminates the area directly behind the rear of the vehicle.  It is recommended that these lights be mounted on your rear bumper or cargo rack.
