Baja Designs Squadron Pro PAIR








Back to List
$429.95 - $440.95

SKU: 497803
Qty:
Beam Pattern:



Eligible for FREE Shipping

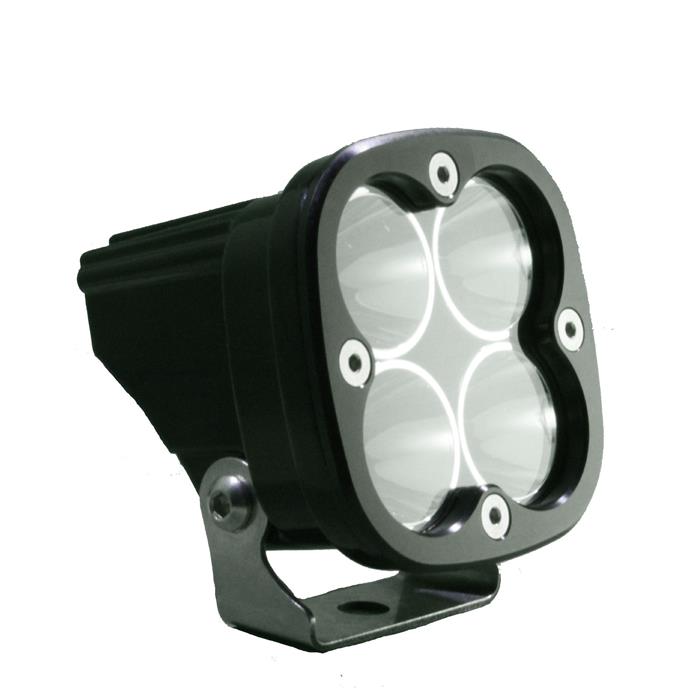

Baja Designs Squadron Pro LED PAIR

Baja Designs 8Lug Free Shipping

Two is always better than one, right? We think so, which is why we’re offering a pair of Squadron® Pro LED auxiliary lights with wiring harness for the price of $359.96. The Squadron® Pro packs 4,300 Lumens at 42 watts that will truly annihilate the night. Don’t let this light fool you, although compact in size this LED auxiliary light will literally blind you with brightness. The Squadron® Pro comes equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

We are excited to announce that beginning November 1, 2020 the Squadron Pro series light will see some serious improvements and a significant price decrease.

  • 20% increased distance thanks to a new premium long-distance LED
  • Same Power Consumption
  • Same Sleek Design
  • Lower Price Point - At Baja Designs we take continuous improvement and innovation seriously. The reduction in price comes from innovative manufacturing methods and lean six sigma principles.

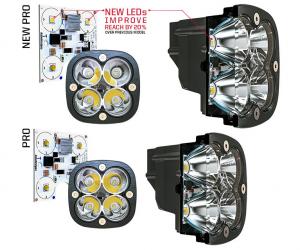

By including a revised combination of premium LED modules, we have increased the performance of the Squadron Pro by achieving more distance and smoother dispersion of light.

Baja Designs Squadron Pro NEW 2020 Version Higher power

Features:

  • Satisfaction Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 4,300 Utilizing 4 Cree XM-L2 LEDs
  • Wattage/Amps: 42W / 3.5A
  • Dimensions: 3.07" x 2.77" x 3.07"
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Exceeds MIL-STD810G requirements:

  • Low Temperature Test
  • High Temperature Test
  • Temperature & Humidity Test
  • Thermal Shock Cycling Test
  • Dust Test
  • Random Vibration Test
  • Mechanical Shock Test
  • Low Pressure Test
  • Drip Box Water Test

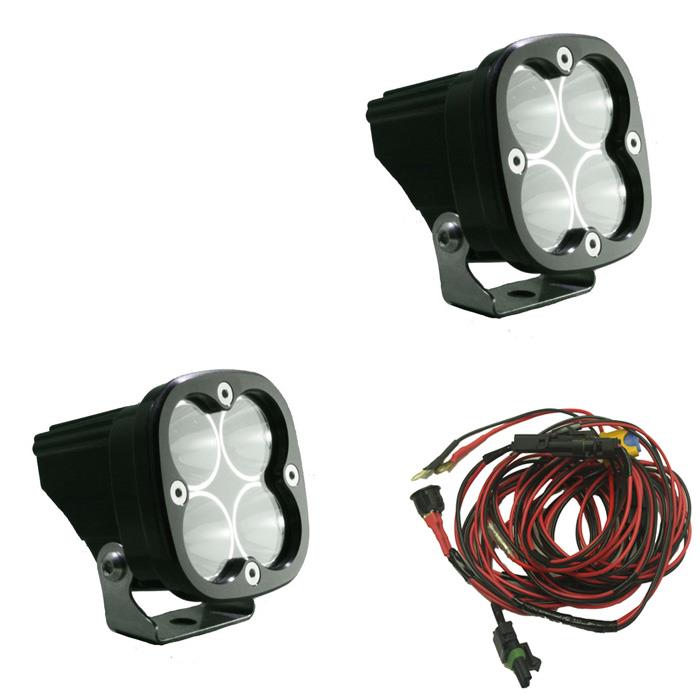

Includes:

  • (2) Squadron® Sport LED Lights
  • Mounting Brackets
  • Wiring Harness

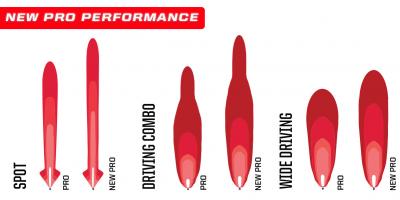

Patterns:

Part Numbers

  • 49-7801 | Spot Beam Pattern
  • 49-7805 | Wide cornering Beam Pattern
  • 49-7803 | Driving/Combo Beam Pattern
  • 49-7806 | Flood/Work Beam Pattern



  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (10°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
  • Flood: Excellent work light or “scene light” with an extremely smooth 60° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)

These zones have been designed by Baja Designs: The Scientists of Lighting.

Zone 1 - Dust/Fog: This zone illuminates the area directly in front of the vehicle.  Mounting these lights low on the bumper eliminates glare from dust and fog.

Zone 2 - Cornering: This zone provides cornering light which is necessary to drive comfortably at speed.  By toeing these lights out 10°-15°a smooth field of light is achieved, eliminating the feeling of tunnel vision.

Zone 3 - Driving Combo: This zone is your primary driving light.  These lights are mounted in the middle of the front bumper to avoid glare off of the hood or from dust and fog in front of the vehicle.

Zone 4 - Spot: This zone is your first level of long distance lighting. Lights intended for this zone will give you the distance needed to travel at speed.  Combined with zone two lighting, a smooth transition is achieved creating less stress on your eyes.

Zone 5 - Racer Edition Spot: This zone is necessary for triple digit speeds or wanting to see miles down the road. This is the only forward projection pattern we recommend mounting along your roofline.

Zone 6 - Dome Lighting: This zone is used for wheel well lighting.  This light is perfect for truck, jeep, buggy and UTV applications.

Zone 7 - Flood: Excellent work light or “scene light” with an extremely smooth 60° pattern.  This pattern is not suitable for forward projection applications.

Zone 8 - Backup Lighting: This zone illuminates the area directly behind the rear of the vehicle.  It is recommended that these lights be mounted on your rear bumper or cargo rack.
