Carli 2014+ Dodge 2500 EVenture System
The future has arrived. The E-Venture system stays two steps ahead of the driver thanks to data input from a provided engine mounted sensor and factory sensors via the OBDII port. The in-cab mounted “Brain” of this system processes the information through a proprietary algorithm. Thanks to this cornucopia of electronic goodness, the E-Venture System reads and reacts the terrain 250 times per second. The resulting ride is the Best. The “best” is an absolute statement… On road? Off Road? Gravel? Rutted, pot-hole filled unmaintained lease roads? Yes… Yes to all of it. The systems takes the capability of a 2.5″ Shock well beyond the threshold we’ve come to expect!
Shocks
The shocks themselves are top-tier construction. Hard-anodized aluminum bodies and reservoirs pair with 17-4 Stainless Shock Shafts will stand the test of time and elements. Billet Rod ends house teflon lined bearings to ensure industry leading performance and longevity.

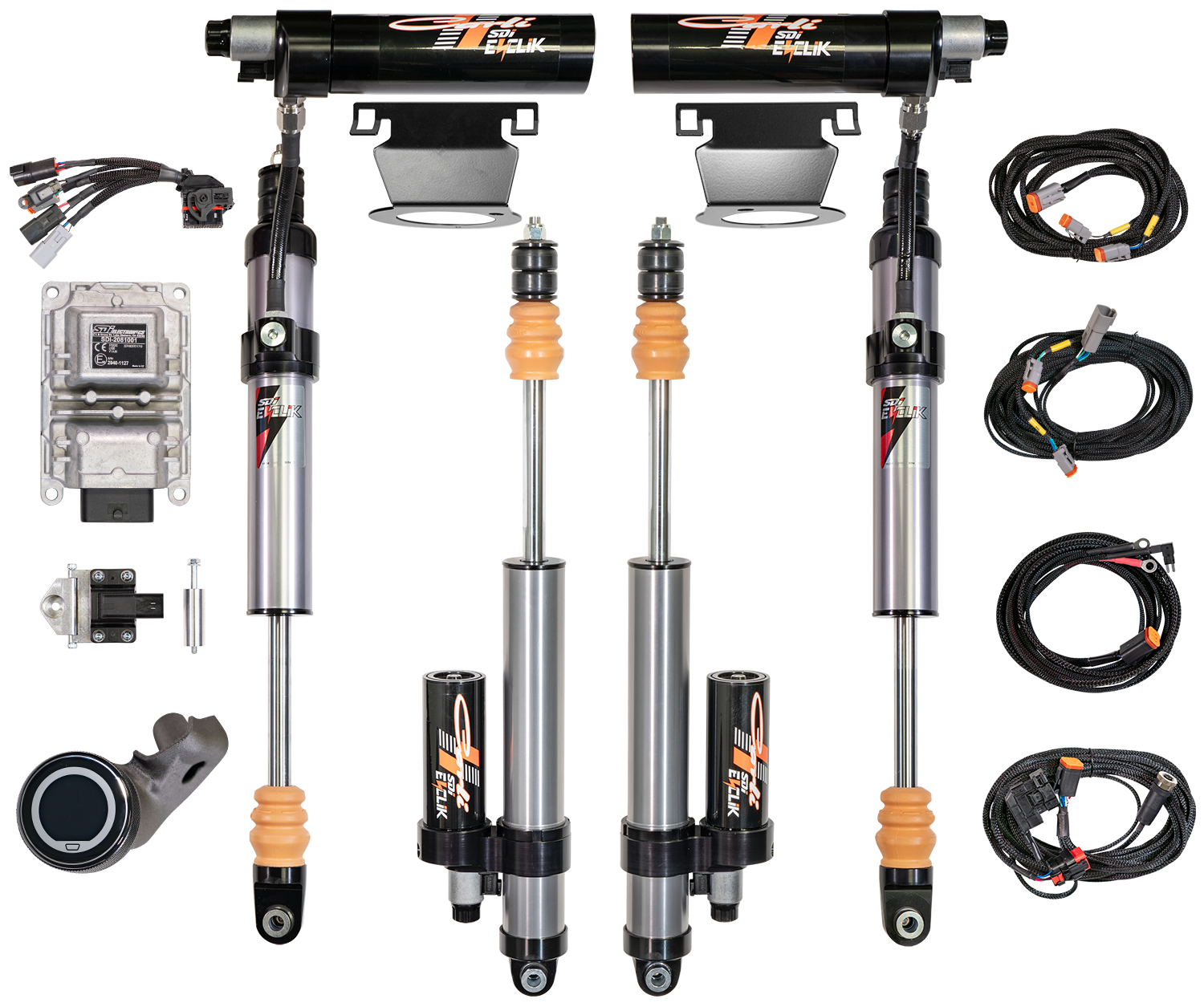

Electronic Control Unit
The “Brain” of the system is the ECU (Electronic Control Unit). The ECU Harness uses a large OEM-style connector with a rocker linkage to ensure it remains secured once fastened. We played with a few mounting locations in our R&D and the heat-cycling of our initial under-hood location proved detrimental to the ECU’s operable temperature range. We redesigned the harness to accommodate an in-cab mounting location (under the driver’s seat) and have had no overheating activity since.
Harnesses
The ECU Harness is home to the connectors for the 4 harnesses in the system that allow all transmission of power and data. All connectors are unique to ensure connections to the ECU can’t be mixed up.
- Front Shock Harness: Male Connection on the harness, Female on ECU Harness. Connects 2 Front Shocks to the ECU.
- Rear Shock Harness: Female Connection on harness, Male on ECU Harness. Connects 2 Rear Shocks to the ECU.
- Power Harness: Wires Power and Ground for the system and includes a fuse Tap to indicate ignition power to the system.
- Communication Harness: OBDII, Touch Screen, and IMU Sensor Connections all feed into ECU.
Sensors

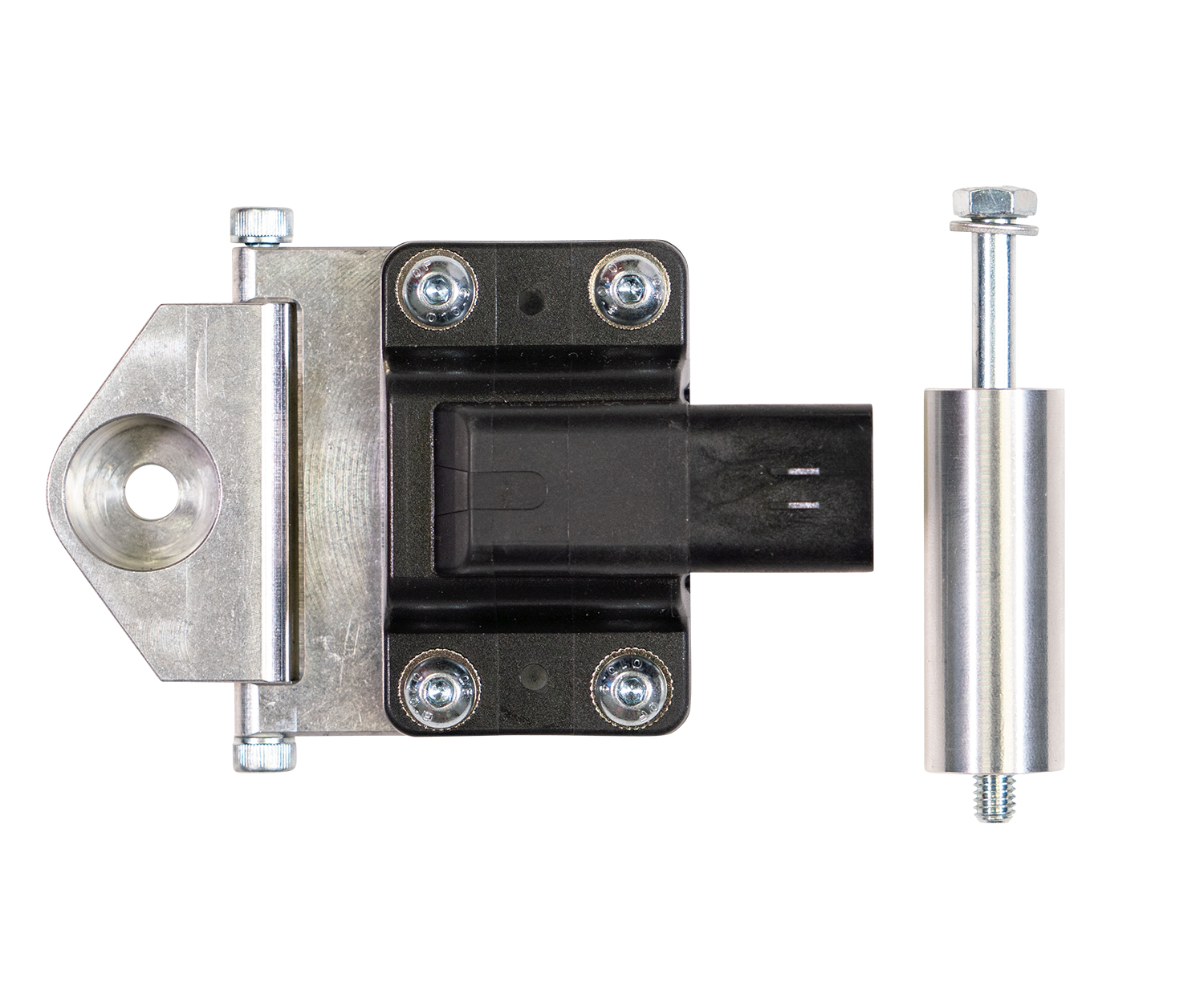

Via the communication harness, the ECU accesses data from the engine mounted IMU (Inertial Measurement Unit). This unit senses any change in pitch/roll of the vehicle. The data from this IMU combines with information gathered from the OBDII port (Brake Pressure, RPM, Steering Angle, Throttle, etc.) to anticipate changes in chassis movement. Subsequently, it firms and softens the shocks where necessary to maintain a chassis that’s as level as possible.
Touch Screen

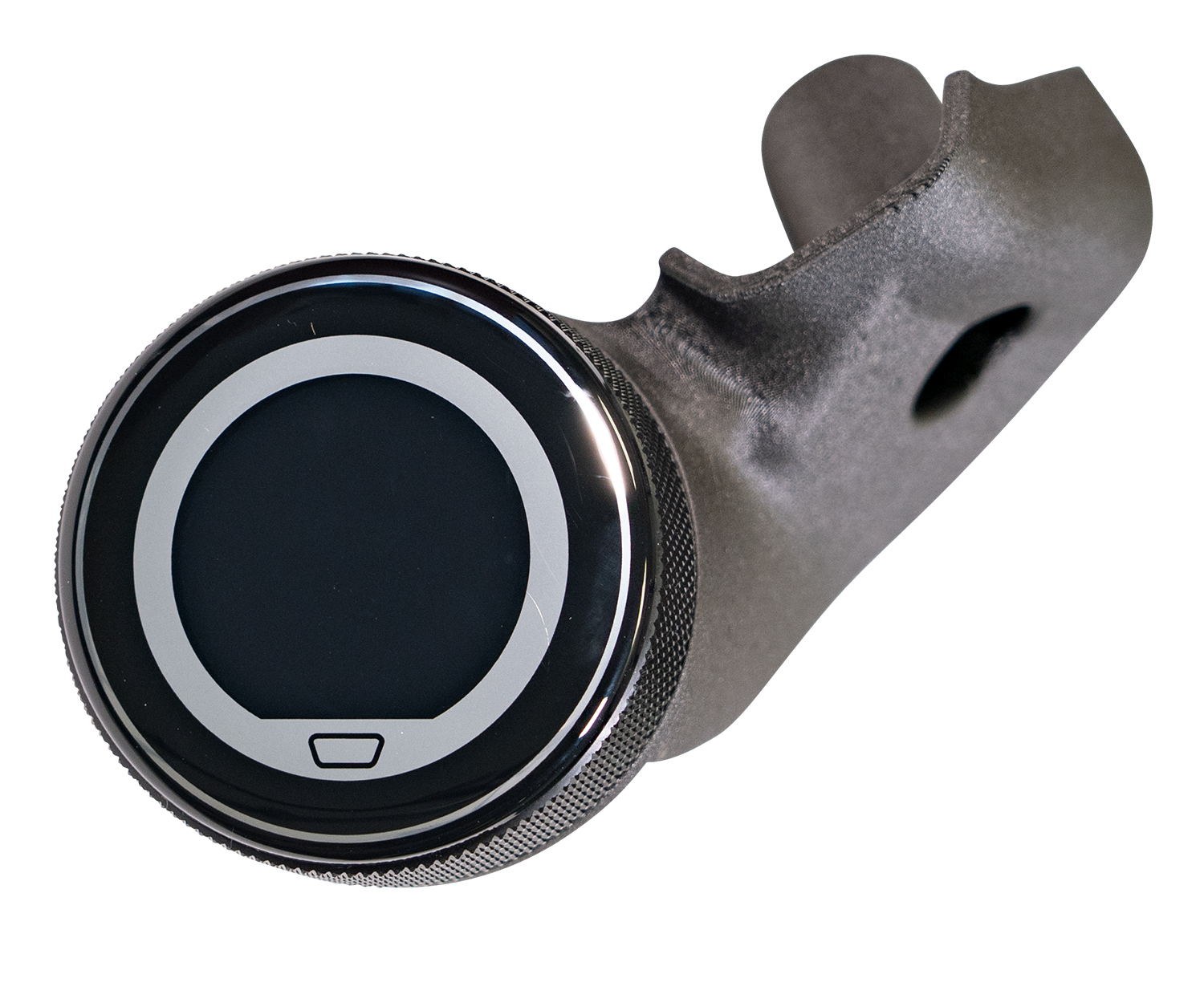

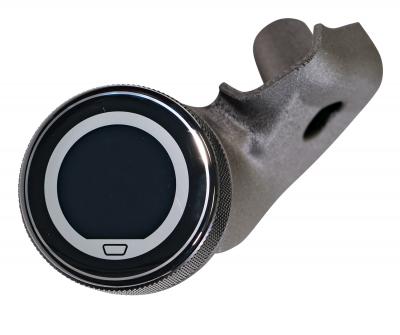

The most important part of the interface is the one with which you interact. SDI put in a TON of work here to ensure a user-friendly interface with clean integration. We worked with them to take it a step further. The Bracket and Touch Screen mount in place of the bottom grab-handle bolt cover placing the touch screen both visible and out of the way. We provide a longer bolt to secure the screen. This location allows for clean routing of the wiring harness that feeds the Touch Screen without the need to trim the grab handle or weather-stripping.
Carli Modes
We worked with SDI to refine the drive modes; we wanted to increase the seat-of-the pants change between each mode. Offered on the E-Venture System are Mountain (Rock-Crawl), Street and Desert Modes. This is in order from softest/least sensitive to most controlled/active. These modes have been EXTENSIVELY refined; there’s nothing standard about them. All you, as the customer, need to do is select the mode and the system will activate the profile instantaneously.
Within each of the above modes, users can refine the ride to their taste and it will auto-save the profile. There are adjustments for the front and rear shocks independently to increase control or comfort within each of the drive modes. We tuned and refined our recommended settings to be centered on ALL drive modes but that doesn’t mean you won’t prefer to run the front in the center of the adjustment and rear all the way toward comfort. Point is, it’s completely up to you!
Pro Mode
This mode takes it a step further for those that like to get nerdy. This mode allows users to adjust the Pitch, Roll, Brake, Throttle and Steering Response. Don’t worry, if your curiosity gets ahead of your knowledge or you failed to track your changes, we’ve implemented a “Restore Default” setting.
Operating Screen
While driving, the screen is defaulted to your interface showing the real-time correction at each corner. Numerical values between 0-10 show the adjustment intensity. You’ll notice these numbers change in speed of correction and amount of correction as the drive modes are altered. Swipe the screen to the right and you’ll find the roll/pitch read-out indicating the data being fed by the IMU.
This screen is also dimmable to a few different brightness to avoid distraction for those long, late-night drives where you won’t be looking at the touch screen.
Hauling
Arguably the most handy feature for our customers is the Rear Load Adjustment. This gives the user incremental control over the rear dampers. When loaded, the rear can be adjusted to find the balance of comfort and support OR, as we preferred, max the rear support to prioritize load support. This adjustment makes a huge difference in the rear control when loaded; this will likely be the most championed feature.

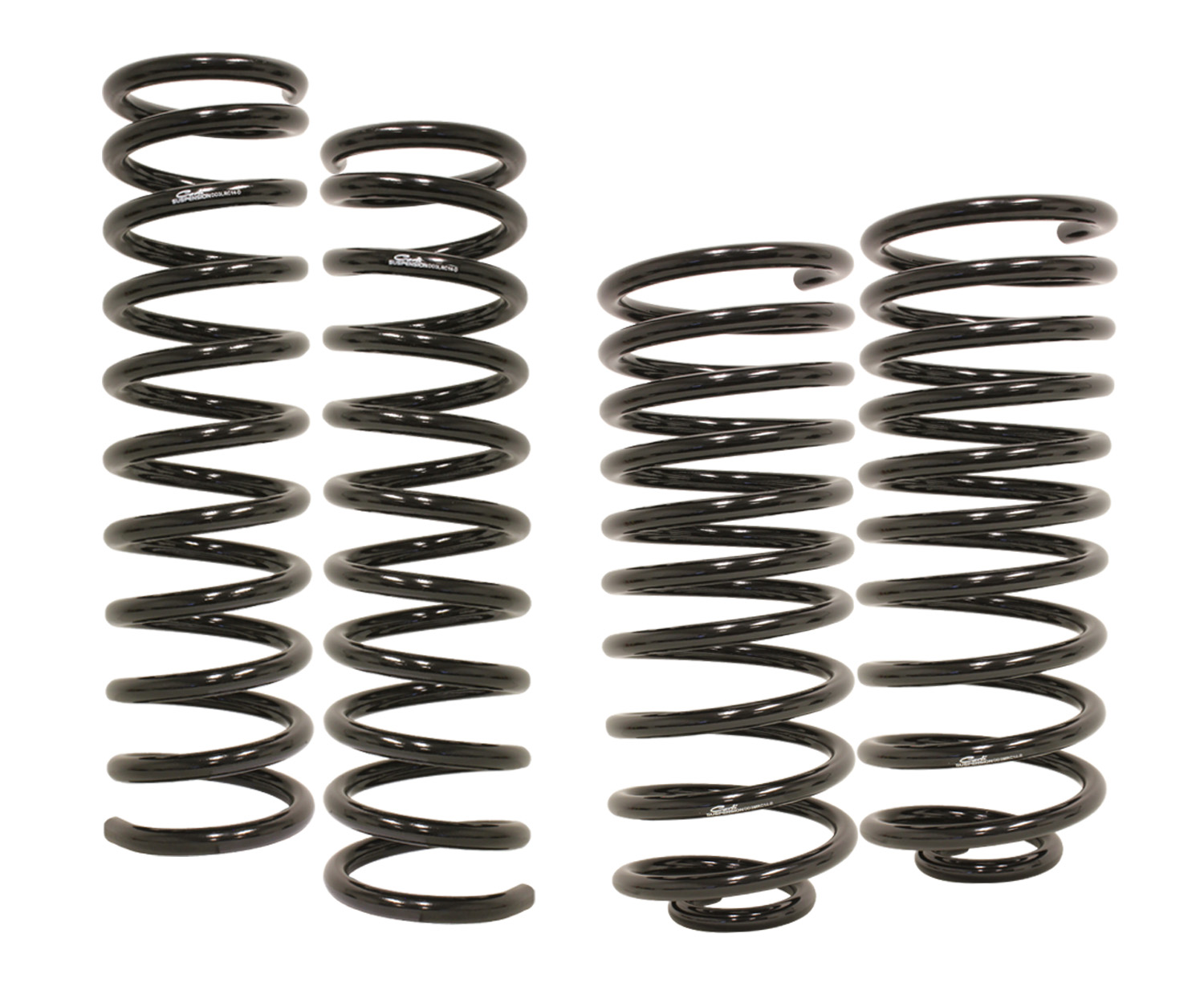

The Details: Your truck will sit 3”-3.5” (2" on the Power Wagons) higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. We offer two base kits separated ONLY by the rear coil springs with which they’re spec’d:
Option 1, R1 coils:
0.5″-1″ lift, reduced capacity soft-ride coils – Max 1,500lb. bed load. Below, you’ll find pictures of the springs Unloaded, +500lbs, +1,000lbs, and +1,500lbs where we consider these springs maxed:
Option 2, R2 coils:
2”-3” lift. These coils maintain the factory payload. The 2” lift below is shown on the heaviest Ram configuration – a Limited, Diesel Mega-Cab. If you have a shorter cab length or less optioned truck they’ll sit taller than pictured. Through our testing (up to 2,500lbs), we spec them as a factory capacity spring capable of 800lbs. constant payload (or more on lighter trucks) to level to 3.25″ front lift. Below, you’ll find pictures of the springs Unloaded, +500lbs, +1,000lbs, and +1,500lbs, +2,000lbs, +2,500lbs where topped the payload of the average Ram 2500 without having maxed the coils:
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.

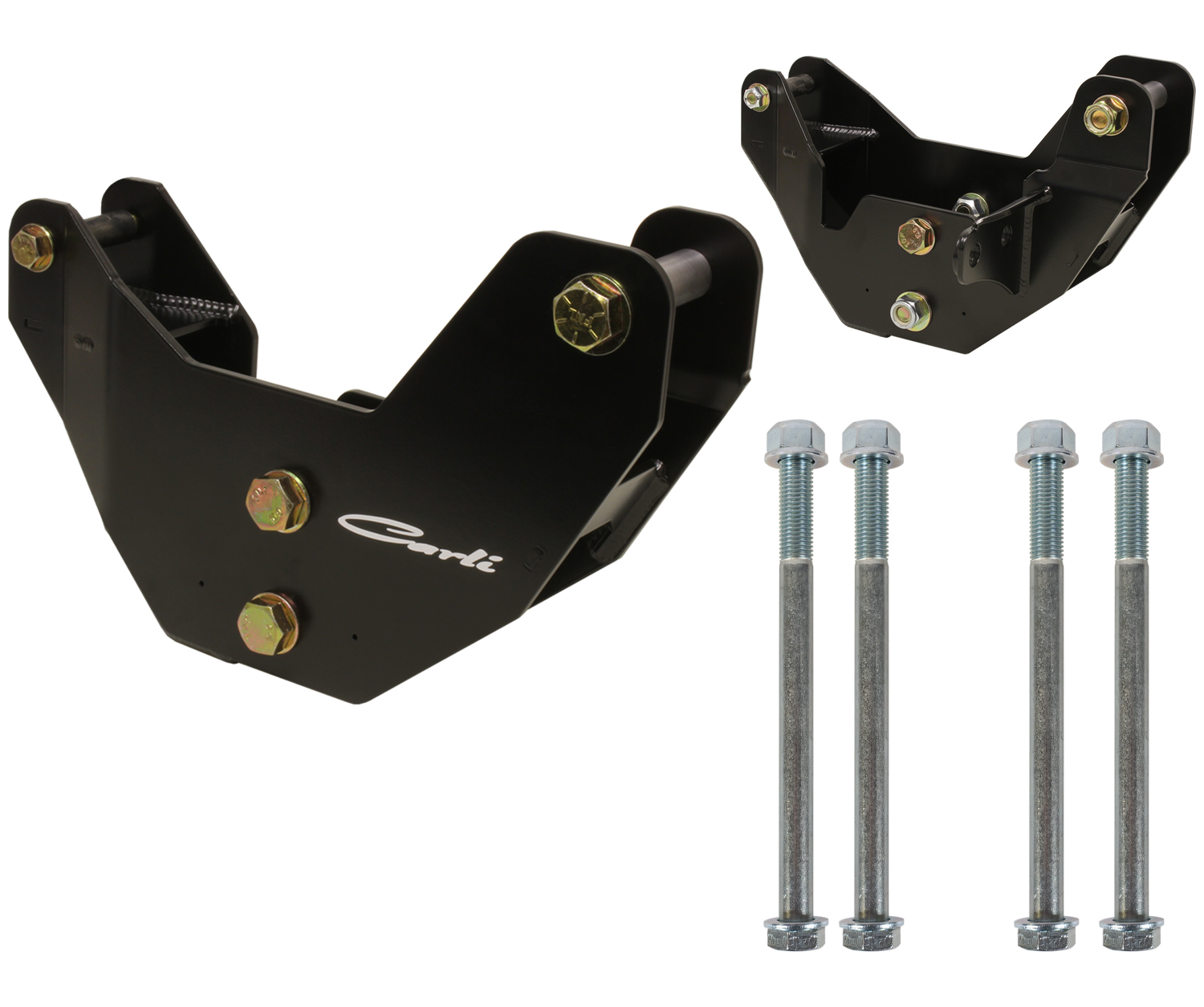

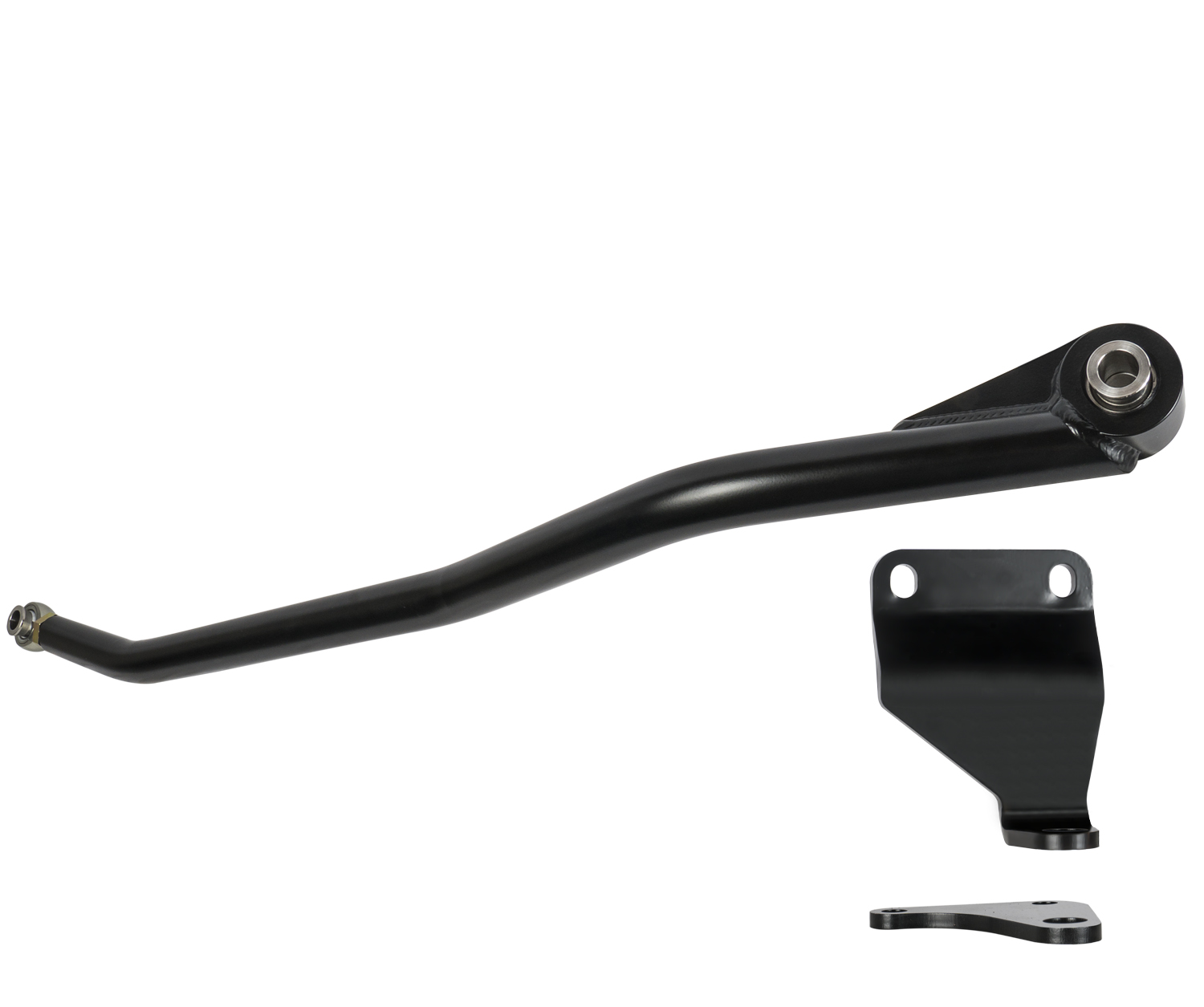

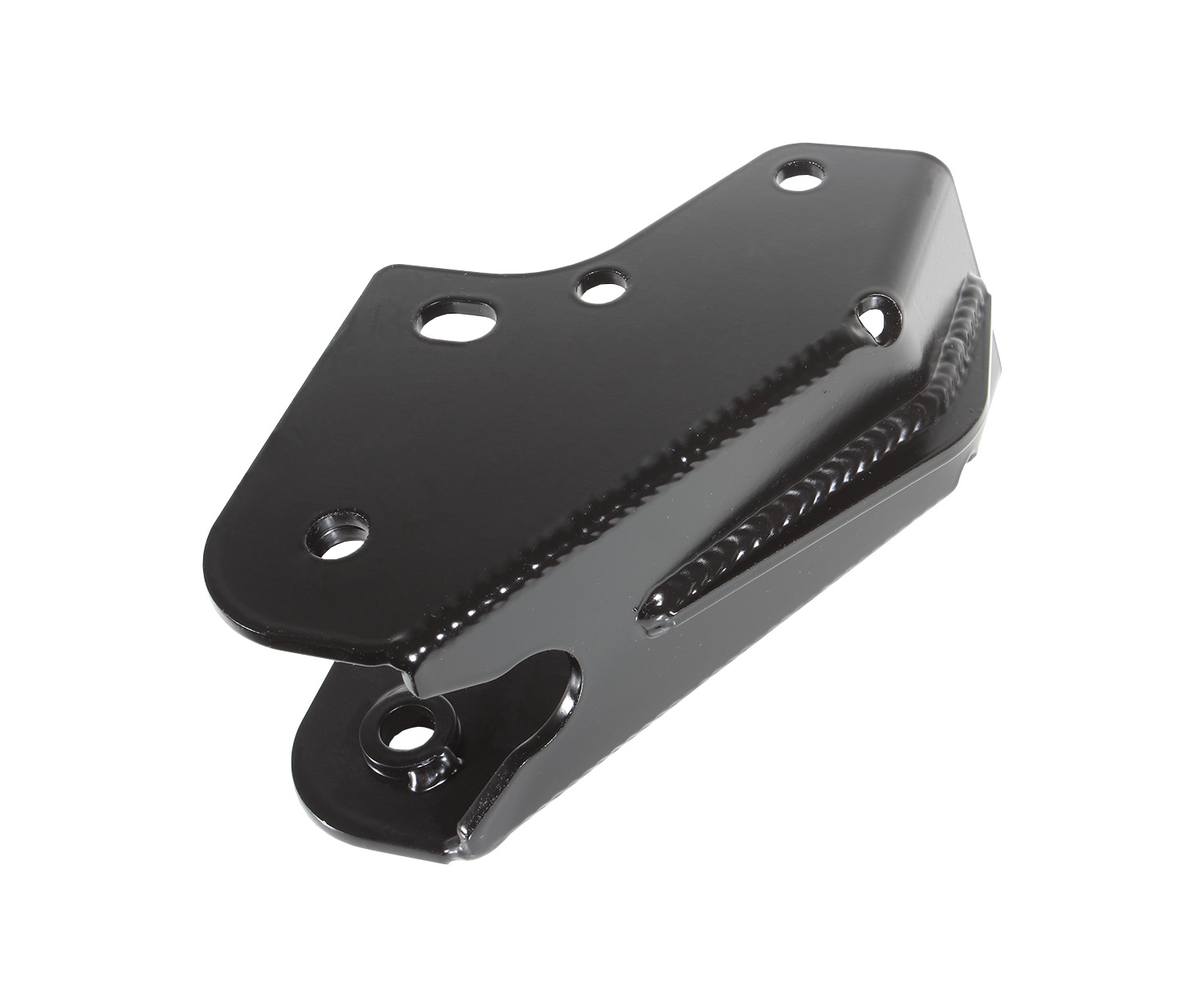

When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel.

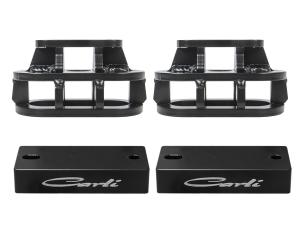

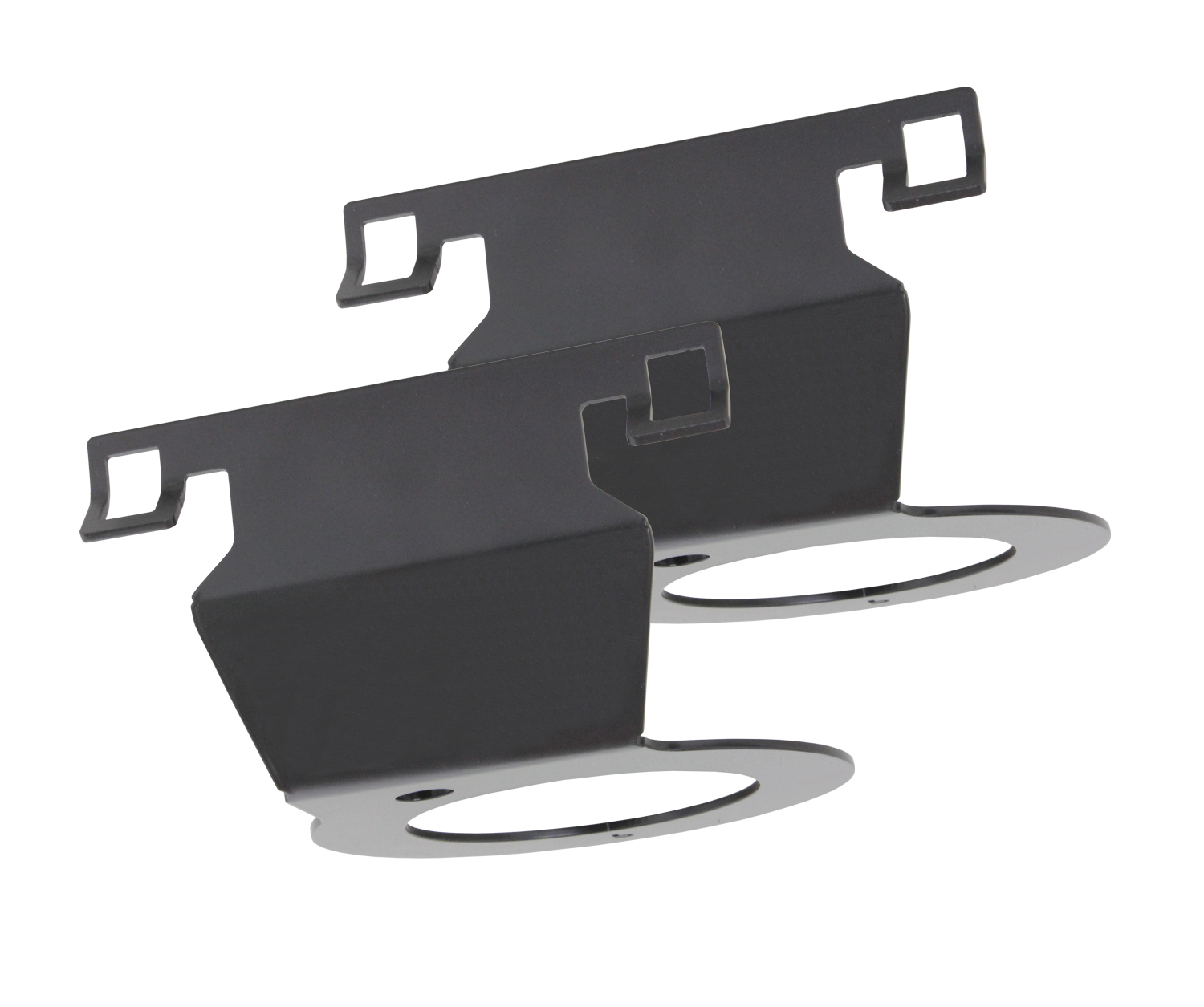

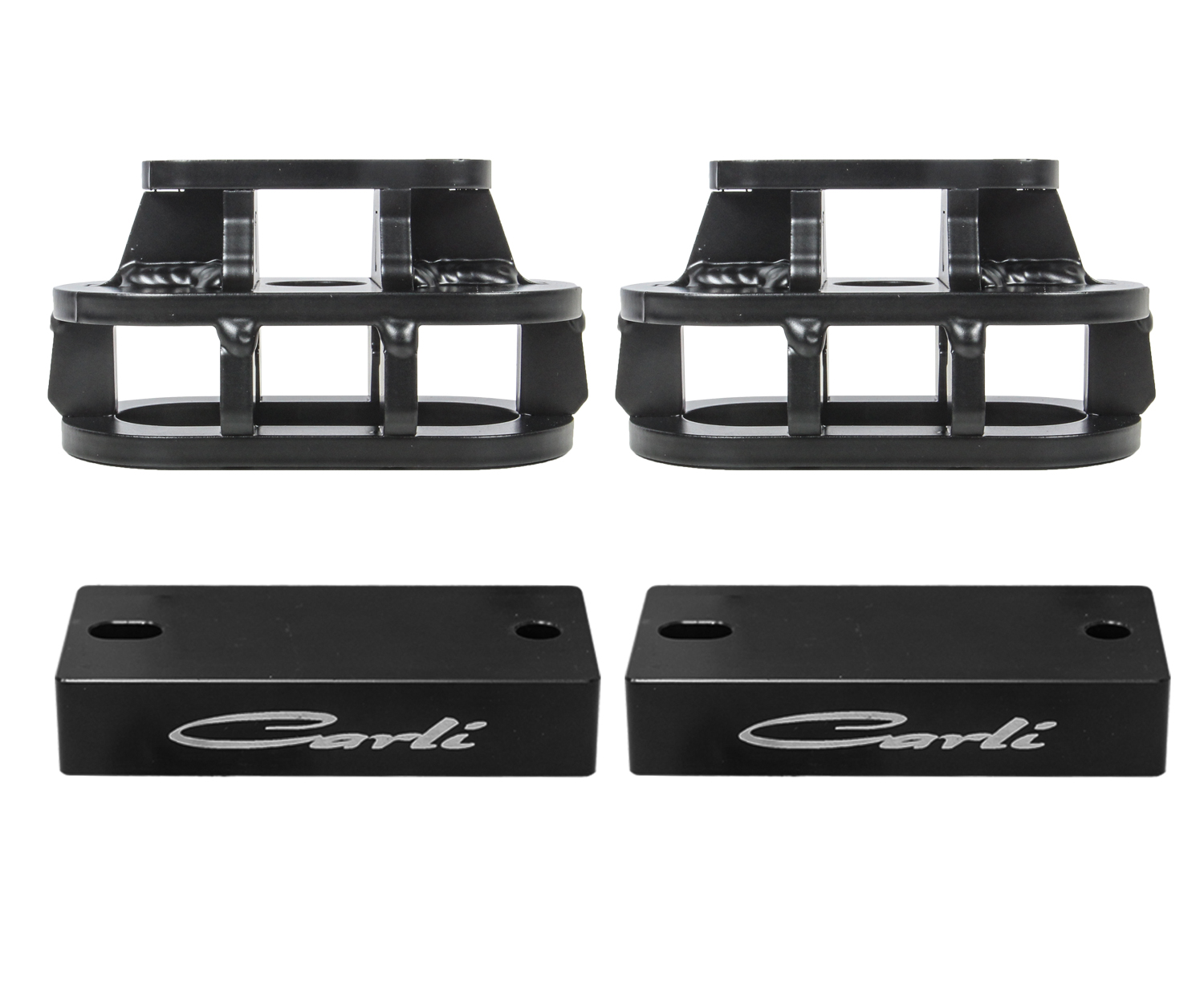

Everything is included to support flawless operation of all components. We include bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs.
Wheel and Tire: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5” of backspacing to clear the new rear shock path. We Recommend running a 17″-18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.

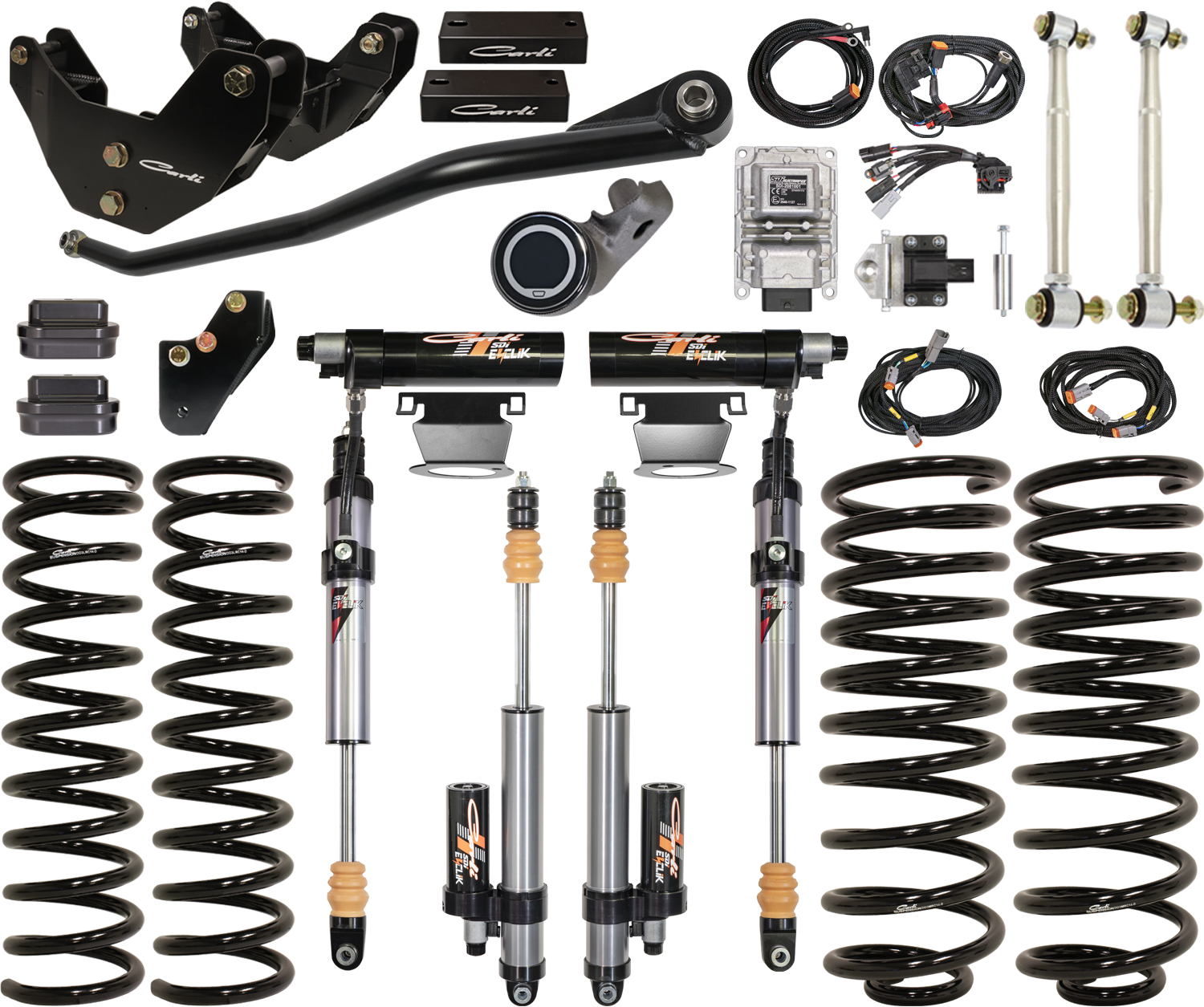

.Base Kit Includes:

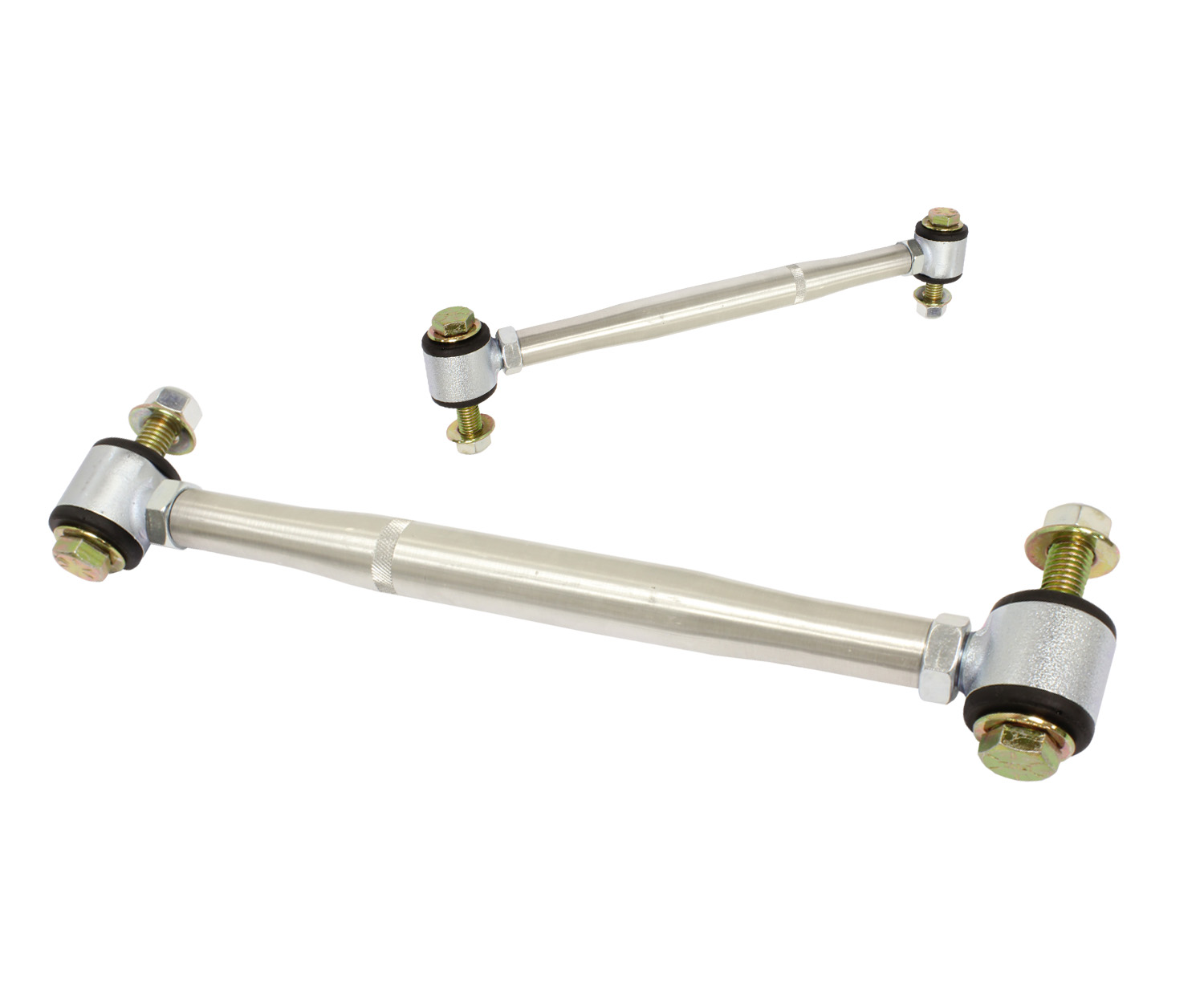

- CS-DEL-R-14 Rear Sway Bar End Links
- CS-DFBD-1 Front Bump Drops
- CS-DLRC-14-D Front Linear-Rate Coil Springs
- CS-DMRC-14-R Rear Multi-Rate Coil Springs
- CS-DATB-1419 Adjustable Track Bar with Stabilizer Bracket
- CS-DRAD-14 Radius Arm Drops
- CS-DCM-20-HK Transmission Crossmember, Extended Hardware Kit
- CS-DRBD-AL Rear Bump Drops
- CS-DPRBDROP-14-R Rear Track Bar Drop
- CS-DD30SPKG-14-D Carli Tuned King 3.0" Remote Reservoir Shock Package with Stainless Shafts, Reservoir Mounts, Brake Line Kit, Coil Isolator Supports, Front Lower Shock Mounts, Rear Upper and Lower Shocks Mounts, Bed Supports and E-Brake Relocation Bracket
DODGE RAM FITMENT GUIDE:
- 2014 - 2018 Ram 2500 Diesel 4wd Trucks (will not fit the 3500's)
- 2014 - 2018 Ram 2500 Hemi 4wd Trucks and Power Wagons (will not fit the 3500's)
- 2019 - 2022 Ram 2500 Diesel 4wd Trucks (will not fit the 3500's)
- 2019 - 2022 Ram 2500 Hemi 4wd Trucks and Power Wagons (will not fit the 3500's)
Options
Sway Bar Selection
Sway Bar Drops
- SKU: CS-DSBD-14
- In-house machined billet aluminum
- Hard-Anodized for corrosion resistance
- Correct factory sway bar geometry on 3" Lift
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
- Will not fit nor are these needed on the Power Wagons
Torsion Sway Bar
- SKU: CS-DTSB3-1419
- Easily the best "bang for the buck" upgrade for ride quality
- Allows front suspension to move freely without giving up control
- Requires removal of electronic sway bar on Power Wagons
- Fitment: 2014+ 2500 4x4
- Fitment: 2013+ 3500 4x4
- Compatible with 2.5"-4" Front Lift
.jpg)
Low Mount Steering Stabilizer
Stainless Low Mount Stabilizer, 2014+
- SKU: CS-DLMSS-14
- Direct bolt-in replacement
- Corrects left tire pull, adjustable
- Stainless Steel Shock
- Black Nitride Shaft
- Billet Red Ends with 1/2" Spherical Bearings
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
High Mount Steering Stabilizer
Stainless High Mount Stabilizer, 2014+
- SKU: CS-DHMSS-14
- Direct bolt-in
- Corrects right tire pull, adjustable
- Stainless Steel Shock with Black Nitride Shaft
- Billet Rod Ends with 1/2" Spherical Bearings
- Fits Leveled & Lifted trucks, ONLY.
- Does NOT Fit with Factory Power Wagon Sway Bar.
- Fitment: 2014-18 Ram 2500, 4×4
- Fitment: 2013-18 Ram 3500, 4×4
Fabricated Radius Arms
Fabricated Radius Arms for 3.25" Lift Systems, 12″ Limit Straps
- SKU: CS-DFRA-14
- Massive Strength Upgrade vs. Stock Arm
- Improved ride quality and control
- Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
- 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4
