Baja Designs XL Linkable LED Lights











Back to List
$772.95 - $1,772.95

Starting at $49/mo or 0% APR with . Check your purchasing power

SKU: 740001
Qty:
Link Size:



Eligible for FREE Shipping

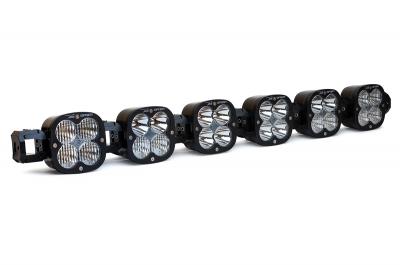

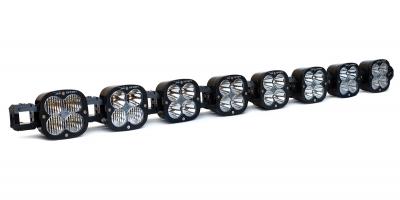

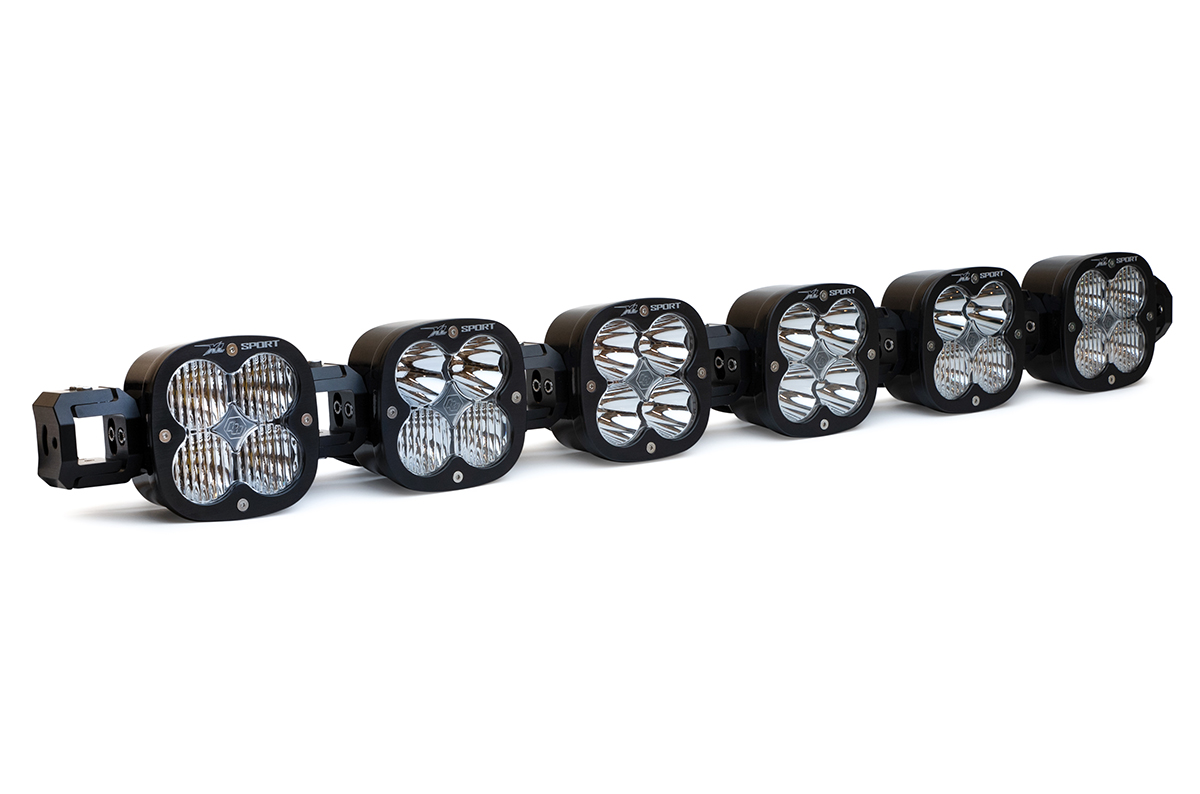

Baja Designs XL Linkable LED Lights

Installation Instructions

Baja Designs 8Lug Free Shipping

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 3 XL Sports, Links, and Rock Guards.

This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle.

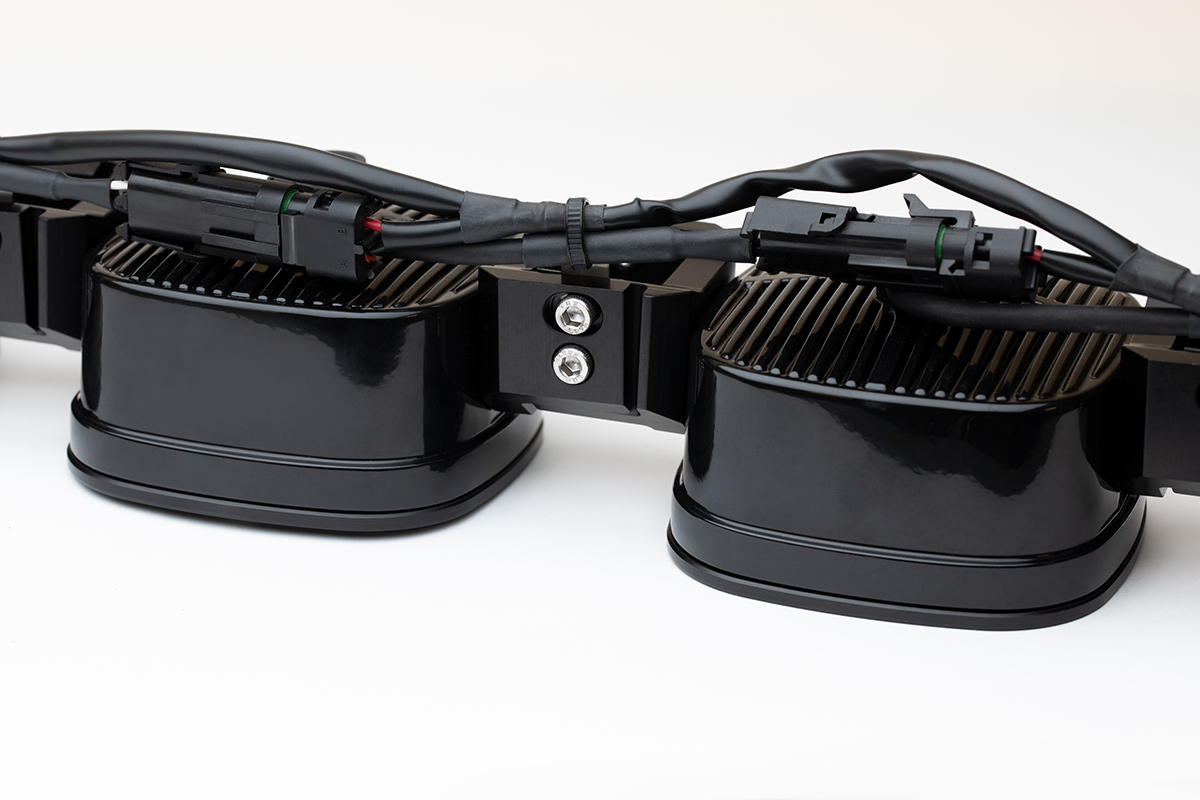

The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road.

 If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Features:

  • Satisfaction Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (per Light):

  • Lumens: 3,150 Utilizing 4 LEDs
  • Wattage/Amps: 26W / 2A
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Exceeds MIL-STD810G requirements:

  • Low Temperature Test
  • High Temperature Test
  • Temperature & Humidity Test
  • Thermal Shock Cycling Test
  • Dust Test
  • Random Vibration Test
  • Mechanical Shock Test
  • Low Pressure Test
  • Drip Box Water Test

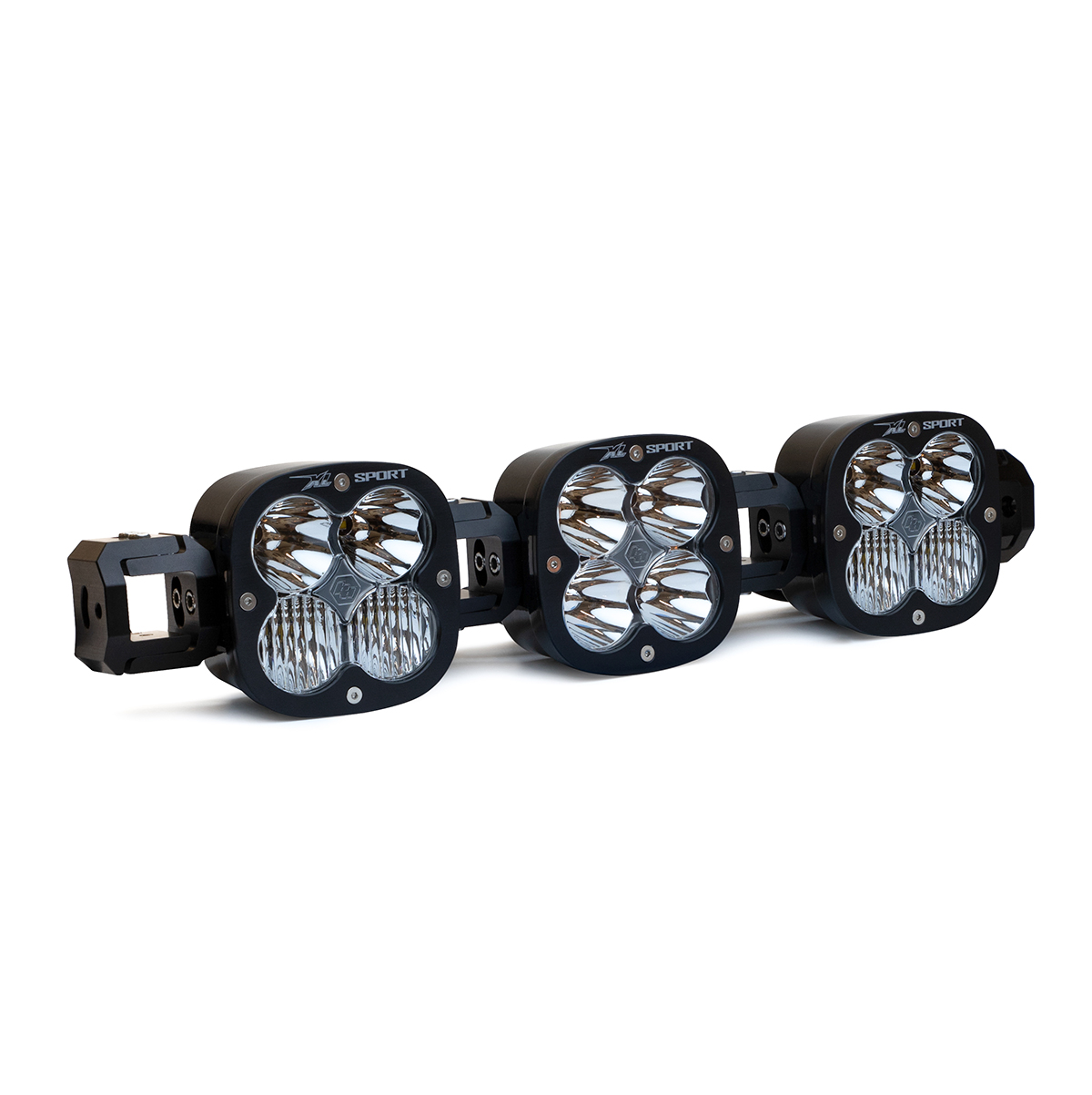

3 Link Set Includes:

  • x1 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x3 XL Sport Rock Guards

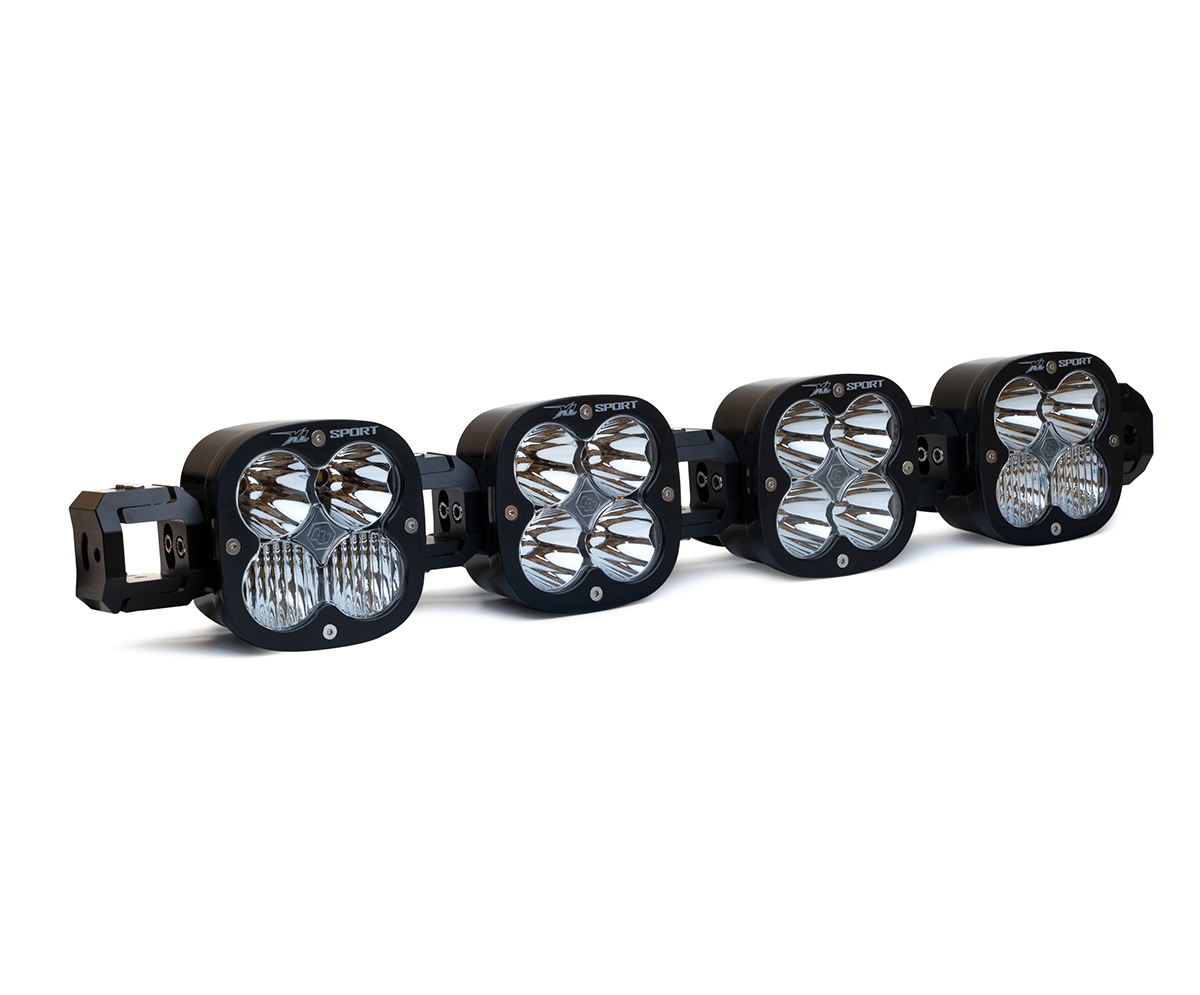

4 Link Set Includes:

  • x2 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x4 XL Sport Rock Guards

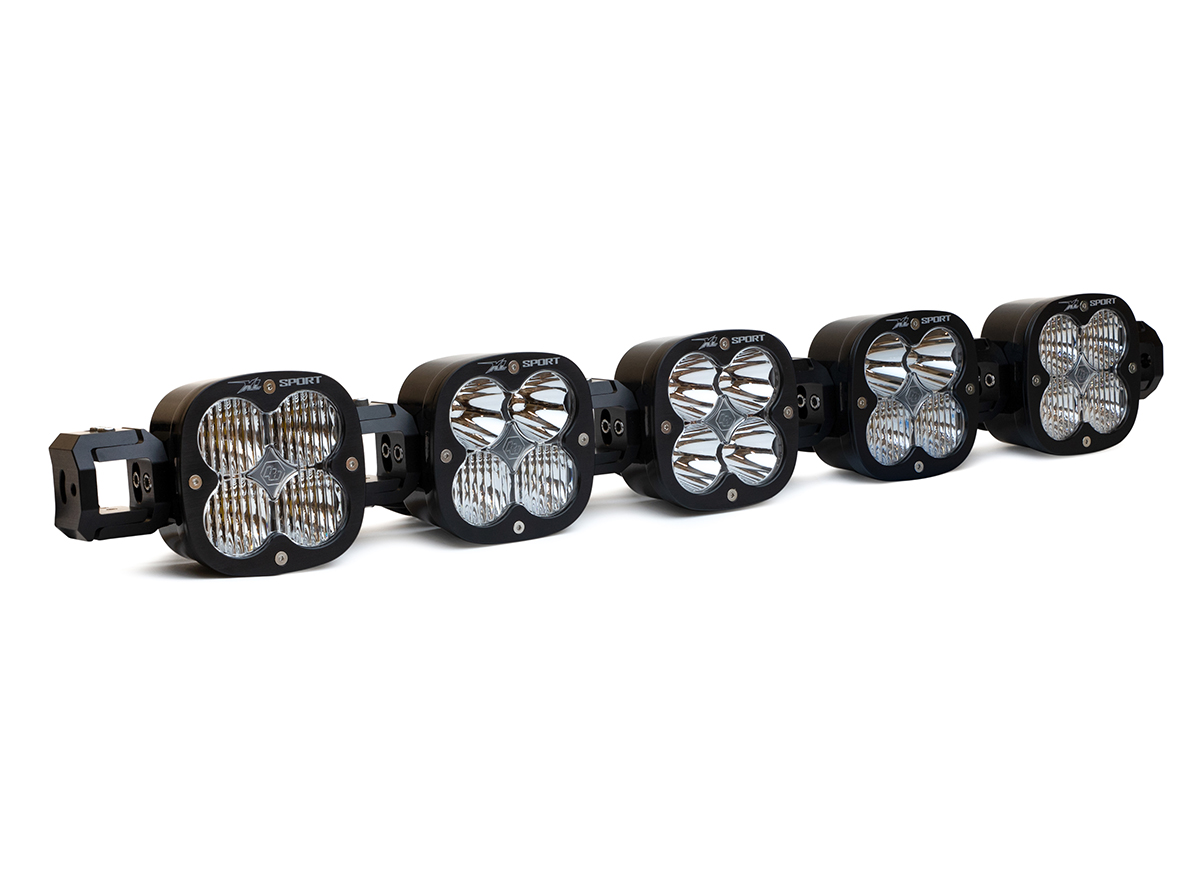

5 Link Set Includes:

  • x1 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x5 XL Sport Rock Guards

6 Link Set Includes:

  • x2 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x6 XL Sport Rock Guards
  • Pre-load Kit

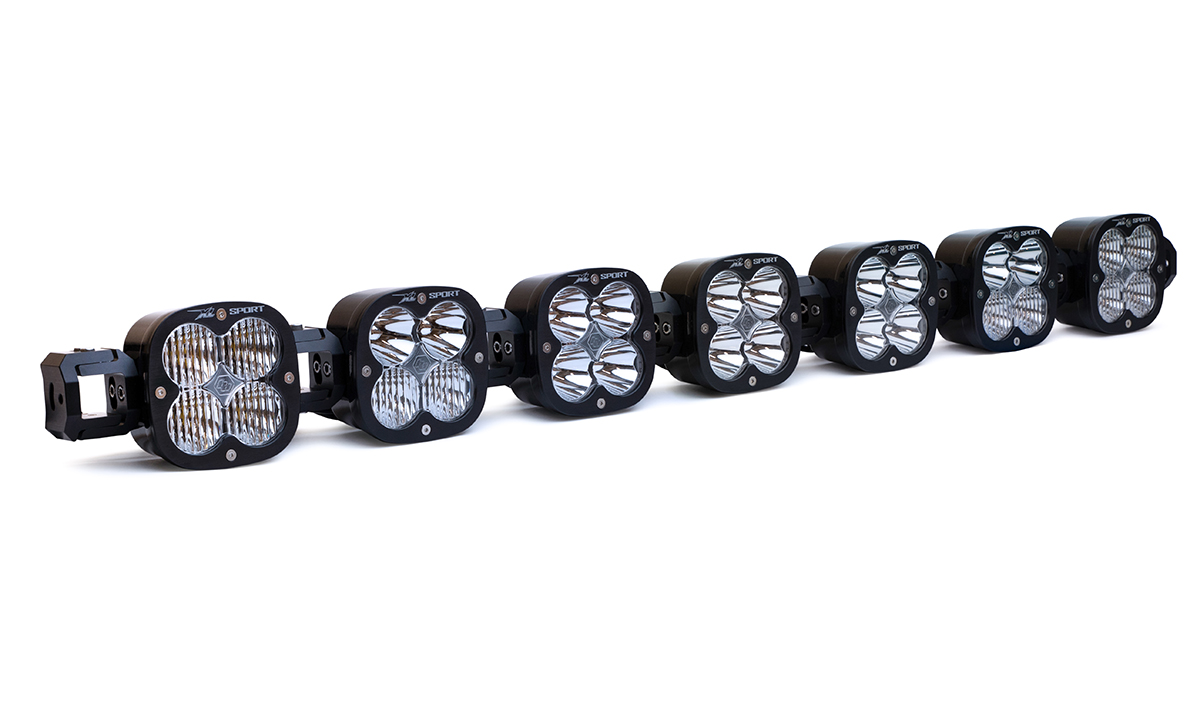

7 Link Set Includes:

  • x3 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x7 XL Sport Rock Guards
  • Pre-load kit

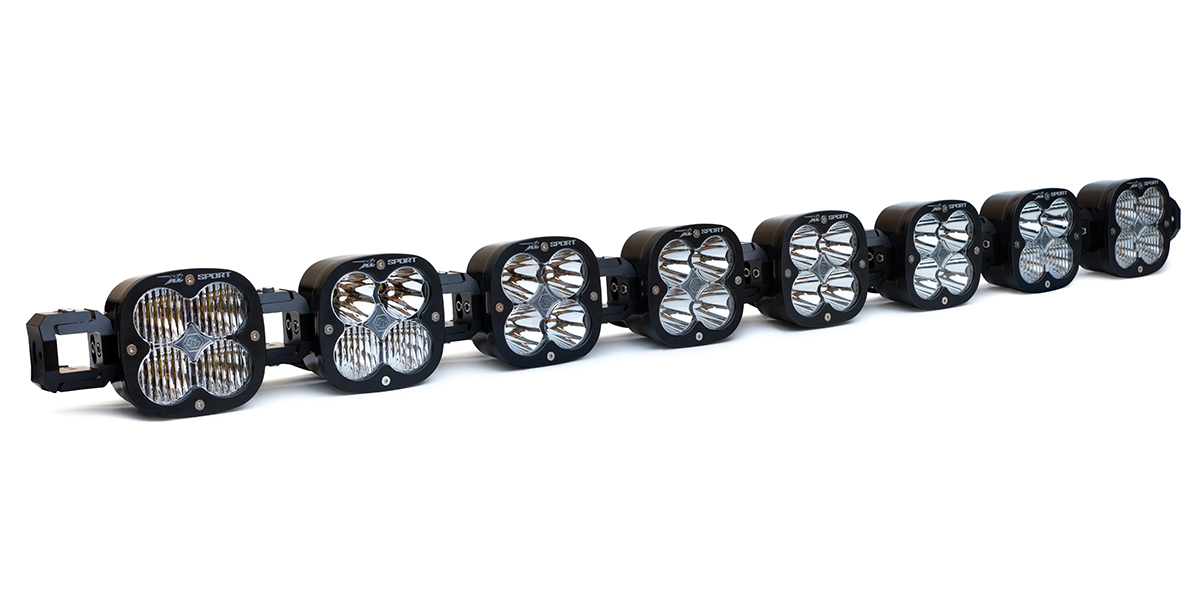

8 Link Set Includes:

  • x4 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x8 XL Sport Rock Guards
  • Pre-load kit

Adjustability:

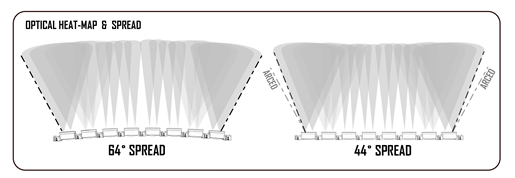

Baja Designs XL Linkable LED Lights (740001) Spread Imagery
Baja Designs XL Linkable LED Lights (740001) Adjustment Imagery

Patterns:

  • Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Customer Reviews

There are no customer reviews for this product. However, you can be the first person to add a review for this product.
