Carli Dodge Starter System
Now Shipping with the NEW Carli Signature Shocks!

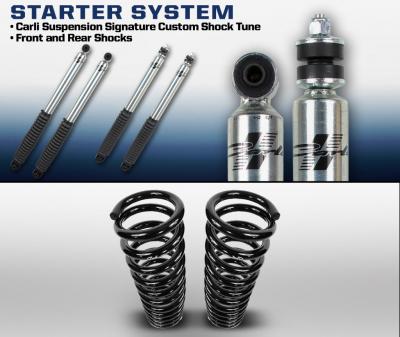

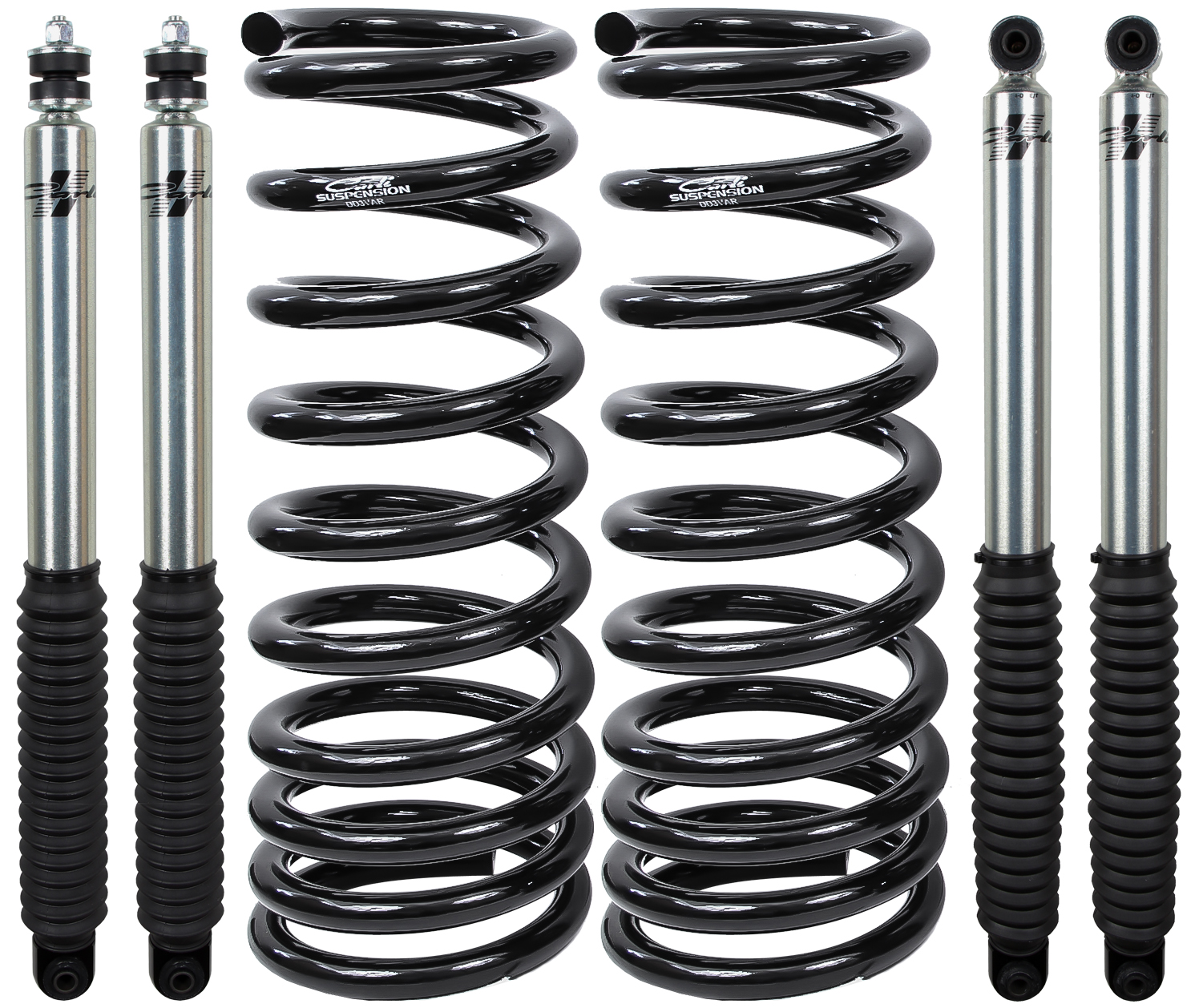

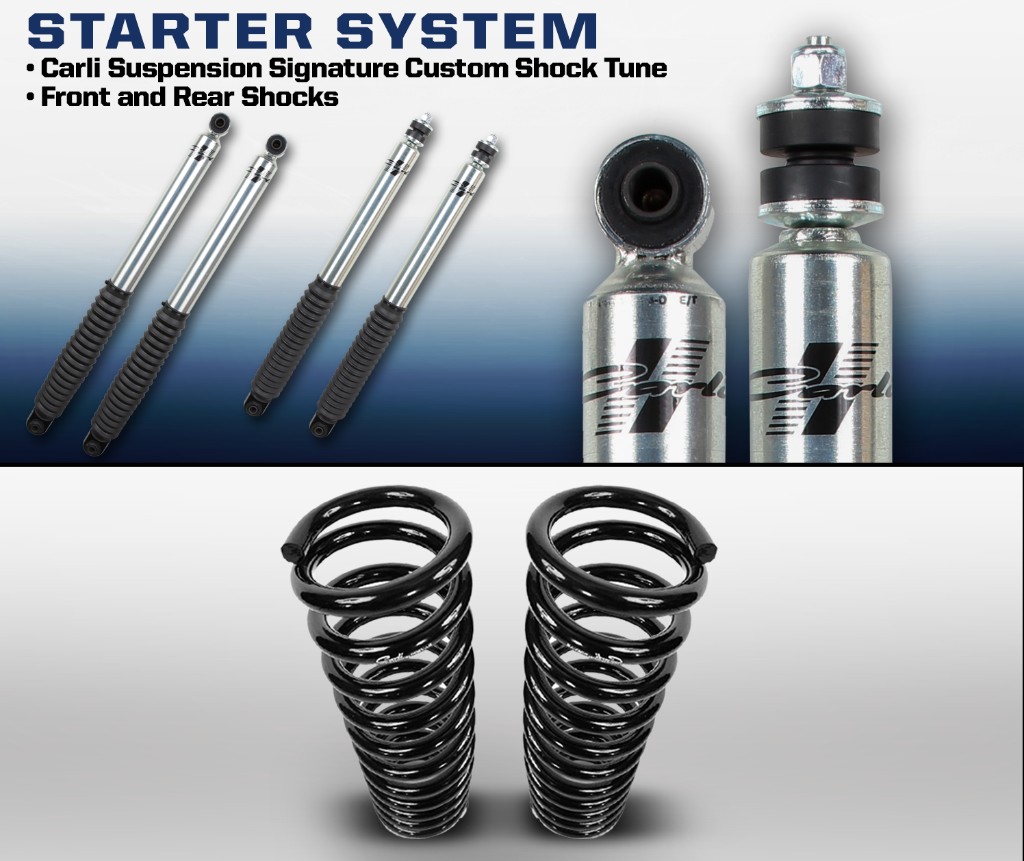

Carli Starter Kit
The Starter System includes the Front Leveling Kit and options a rear Add-A-Pack and matching Rear Shocks. This system is designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift; then, adding the rear kit to further the ride quality improvement. The Carli Signature Series front shocks have been custom tuned, in house, for superior ride quality.
Your truck will sit 2.5”-3” higher in the front (year/cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The included front & rear Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options (unless 1994-2002, then there’s only one); extended, Sway Bar End Links or the replacement Torsion Sway Bar. The End links are equipped with ½” FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement point. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link. Carli’s Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension (in close competition with the full progressive leaf spring upgrade offered in the higher-end systems).
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. Although this is perfectly operable, we recommend the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel.
In the rear, the progressive add-a-pack can be optioned to replace the unyielding factory overload spring to increase comfort, traction & predictability.
Wheel and Tire:
This system will fit up to a 35” tire with stock control arms (we recommend purchasing our extended, Mild Steel Control Arms) on wheels with 5.75-6” of backspacing. If running factory wheels, we recommend an All Terrain 35” tire to avoid rubbing. For 37” tire fitment, our High-Clearance Control Arms and Adjustable Track Bar can be paired to a wheel with 5.75” of Backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:HERE
Dodge Ram Fitment Guide:
- 2003 - 2012 2500 / 3500 4x4 (Also fits 2013 2500's)
- 2006 - 2009 1500 Megacab 4x4
- 1998.5 - 2002 2500 / 3500 4x4
- 1994 - 1998 2500 / 3500 4x4
- CS-DSTARTER-03-D | 2003-09 2500/3500 4x4 Diesel | (Old Part Number: CS-STARTER-03-D)
- CS-DSTARTER-03-H | 2003-09 2500/3500 4x4 Hemi | (Old Part Number: CS-STARTER-03-H)
- CS-DSTARTER-03-PW | 2003-09 Power Wagon
- CS-DSTARTER-10-D | 2010-13 2500/3500 4x4 Diesel | (Old Part Number: CS-STARTER-10-D)
- CS-DSTARTER-10-H | 2010-13 2500/3500 4x4 Hemi | (Old Part Number: CS-STARTER-10-H)
- CS-DSTARTER-10-PW | 10-13 Power Wagon
- CS-DSTARTER-94 | 1994-98 2500/3500 4x4 Diesel | (Old Part Number: CS-STARTER-94)
- CS-DSTARTER-985 | 1998.5-02 2500/3500 4x4 Diesel | (Old Part Number: CS-STARTER-985)
+2010-present vehicles have 2 possible sizes of Sway Bar End Links. Place a socket on the nut that compresses the rubber End Link bushings, an 18mm socket will indicate the need for the 12mm part number.

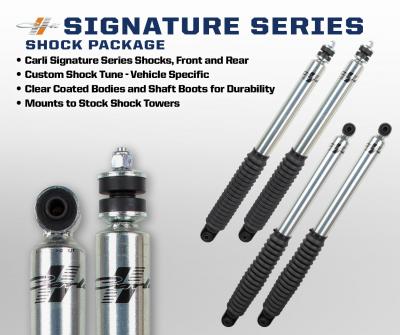

- Carli Signature Series Front And Rear Shocks

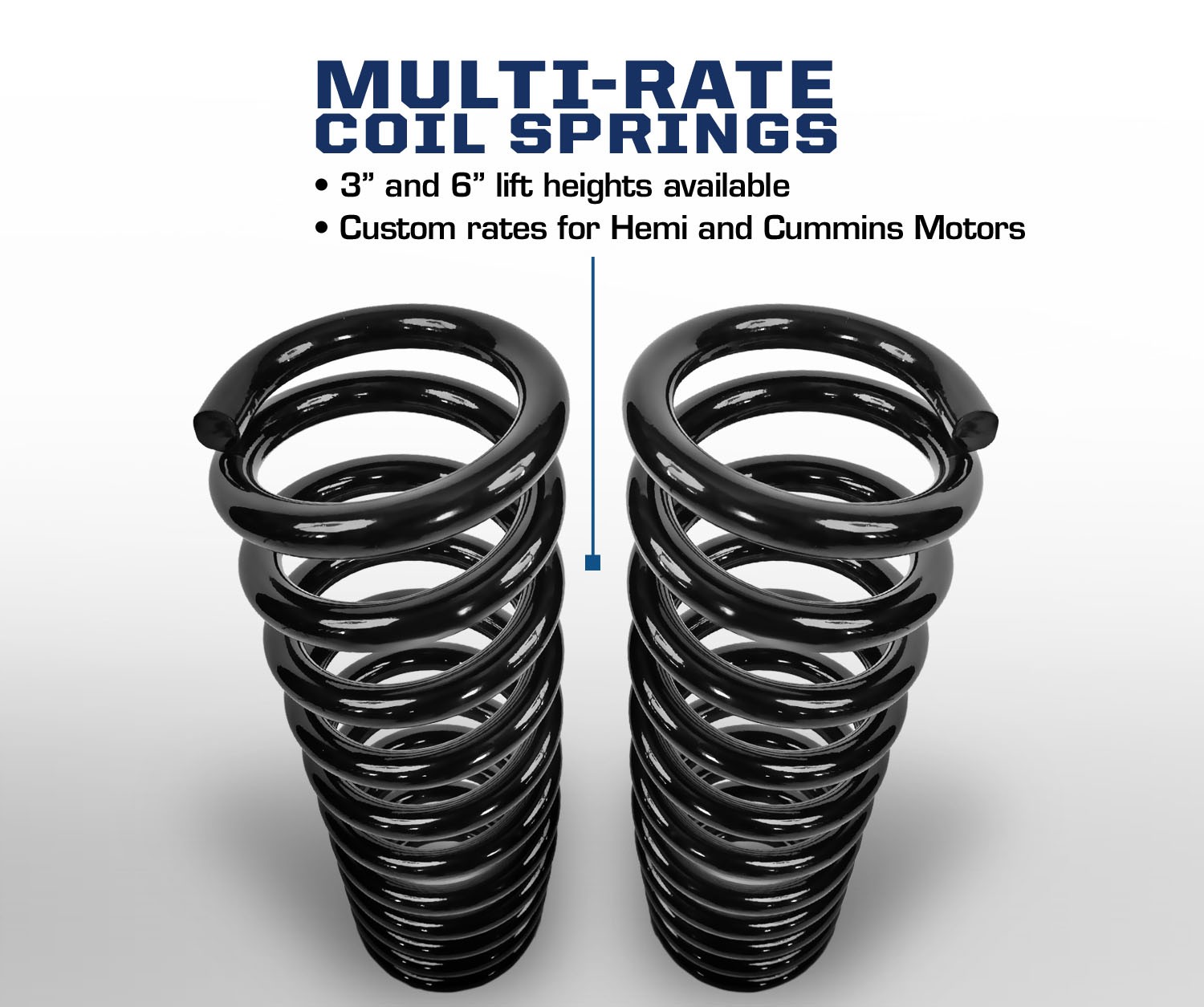

- Multi-Rate Coil Springs
Altered Vehicle Characteristics:
- 2.75" of front lift (varies slightly with different cab configurations)
- Optional 1" of rear lift (varies slightly with different cab configurations and the amount of stock spacers installed)
- Level Ride
- Wheels - Carli Recommends a 17"-18" Wheel, no more than 9" wide with 4.5" of Backspacing on 6" Systems
- Tires - 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R
- Recommended Configuration - Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
- Torsion Sway Bar - Selection of the Torsion Sway Bar Replacement will not Require size selection as the entire sway bar assembly is replaced.
Sway Bar Options
- Sway Bar End Links
- Machined out of 17-4 Stainless Steel
- FK Bearing, Chromoly Rod-End
- Relocates and drops the front sway bar for fit and correct geometry
- Eliminates End Link bind which could lead to premature failure
- CS-DEL-94 | 1994-1998 Dodge Sway Bar End Links
- CS-DEL-985 | 1998.5-2009 Dodge Sway Bar End Links
- CS-DEL-10 | 2010-2013 Dodge 10mm End Links (15mm Nut Size)
- CS-DEL-12 | 2010-2013 Dodge 12mm End Links (18mm Nut Size)
- 2003-2013 Torsion Sway Bar | CS-DTSB3-03
- Easily the Best "Bang for the Buck" Upgrade for ride qualityy
- Allows front suspension to move freely without giving up Control
- Heavy duty chromoly arms and end links with 5/8 race series heim joints
Rear Lift Leaf Options
Although it is possible to order this kit with neither of these options, it is HIGHLY recommended that you do choose one of these options in order for this kit to perform as expected.
- Replaces Rear, lower overload spring for increased ride quality
- Provides 1.0" of lift
- The O.E.M. load capacity is still maintained while improved ride is achieved
- Diesel specific configuration (AAM 11.5 Axle)
- CS-DPAP-94 | 1994-2002 Dodge Ram Add-A-Packs
- CS-DPAP-03-D | 2003-2009 Dodge Ram Add-A-Packs
- Full Spring Pack
- Softens initial spring rate at ride height
- Minimizes Axle Wrap/Wheel Hop
- Reduces Payload 15% From Stock 2500
- Capable of 15" of Suspension Travel
- CS-DFSP-94 | 1994-2002 Dodge Ram Full Spring Pack
- CS-DFSP-03-D | 2003-2009 Dodge Ram Full Spring Pack
- CS-DFSP-03-D-HD | 2003-2009 Dodge Ram Heavy Duty Full Spring Pack (For Trucks with 1,500lbs. In the Bed at all times)
- CS-DFSP-10-D | 2010-2013 Dodge Ram Full Spring Pack
- CS-DFSP-10-D-HD | 2010-2013 Dodge Ram Heavy Duty Full Spring Pack (For Trucks with 1,500lbs. In the Bed at all times)
Control Arm Options
- Extended Control Arms
- Re-centers front axle on 3" Suspension Systems
- Offset body for more tire clearance
- CS-CA-MS14-94 | 1994-1998 Dodge Ram Control Arms with 12mm/14mm Joints
- CS-CA-MS16-94 | 1994-1998 Dodge Ram Control Arms with 14mm/16mm Joints
- CS-CA-MS-03 | 2003-2009 Dodge Ram Control Arms
- CS-CA-MS-10 | 2010-2013 Dodge Ram Control Arms
- High Clearance Extended Control Arms
- Re-centers front axle on 3" Suspension Systems
- Offset body more than Extended Control Arms for even more tire clearance!
- CS-DFCA-03 | 2003-2009 Dodge Ram High Clearance Control Arms
- CS-DFCA-10 | 2010-2013 Dodge Ram High Clearance Control Arms
